2S 3S 4S Lithium Battery Charger Battery Protection Board TypeC USB Boost Charging Board DC3-5V 1A 2A 4AItem NO.: 2S3S4SDC3-5V
-
Customized Requirements
- Quantity
-
-
- Product Name: 2S 3S 4S Lithium Battery Charger Battery Protection Board TypeC USB Boost Charging Board DC3-5V 1A 2A 4A
- Item NO.: 2S3S4SDC3-5V
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 2s , 4A , 3S , 4S , Lithium Battery Charger Battery Protection Board , TypeC , Boost Charging Board , DC3-5V , 1A , 2A
- Creation Time: 2024-03-24

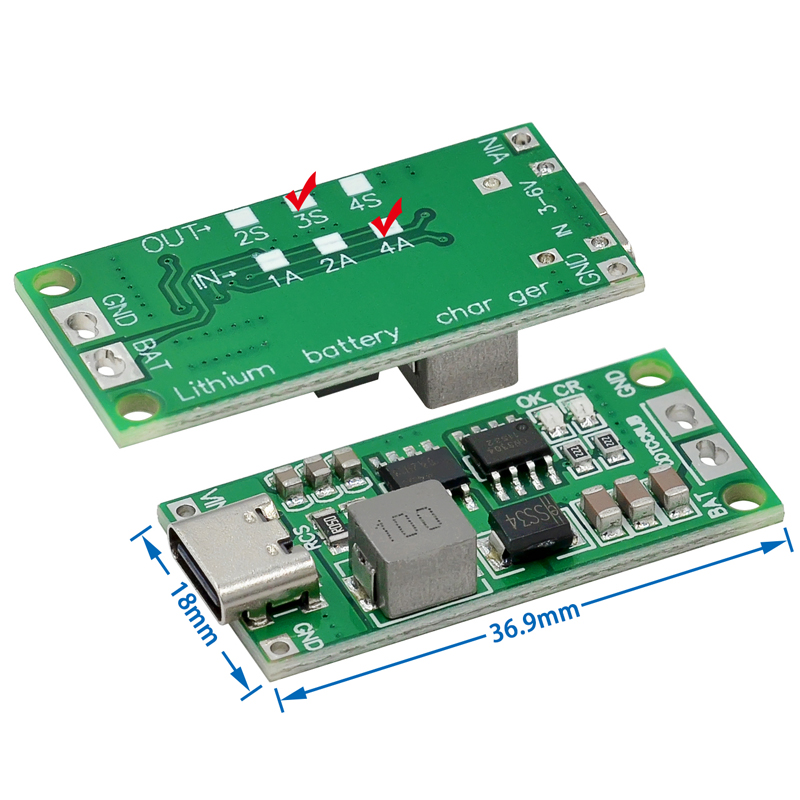

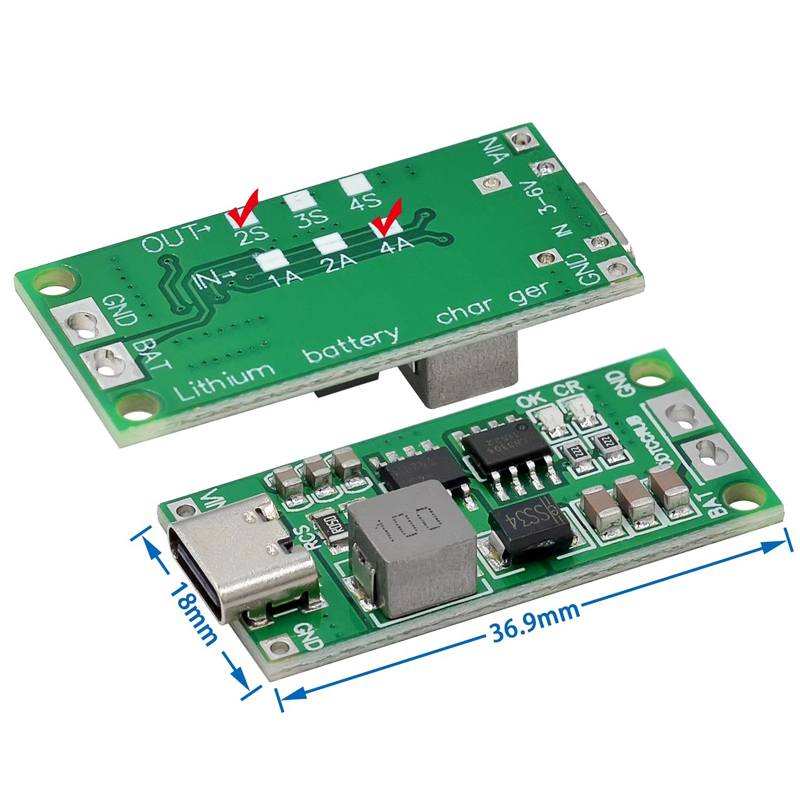

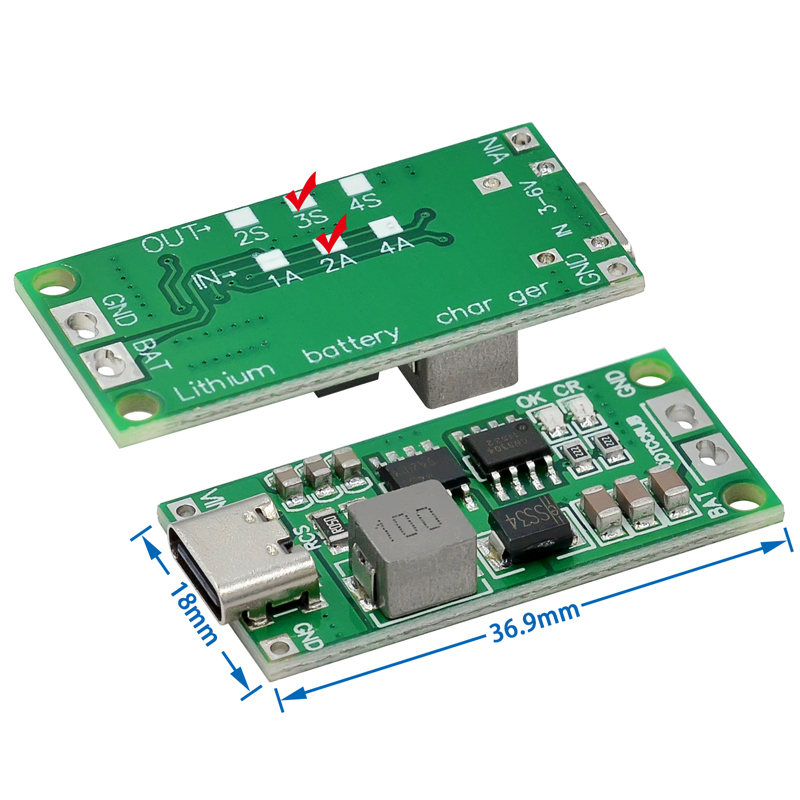

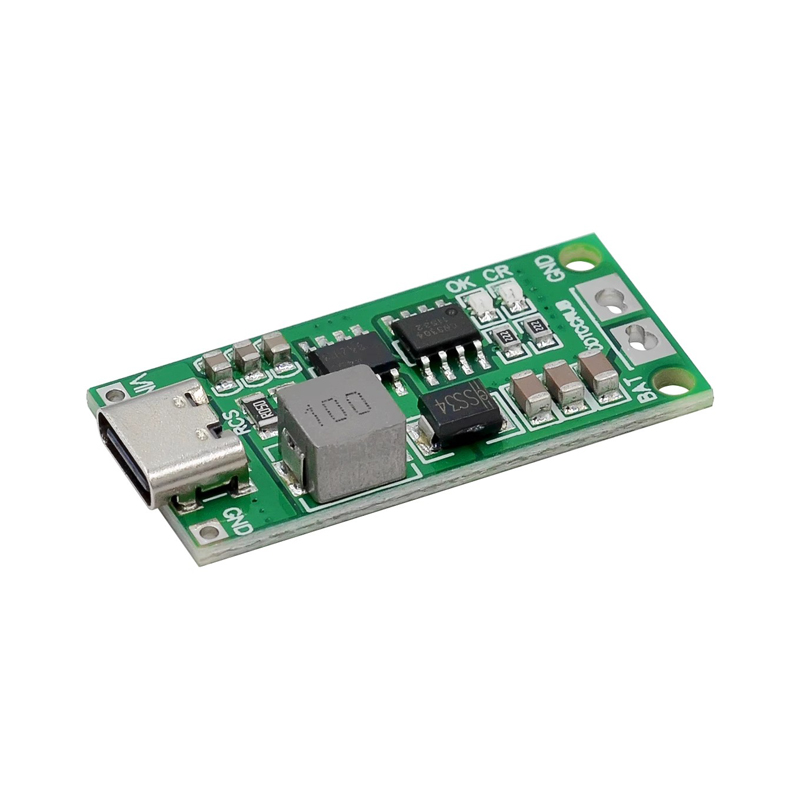

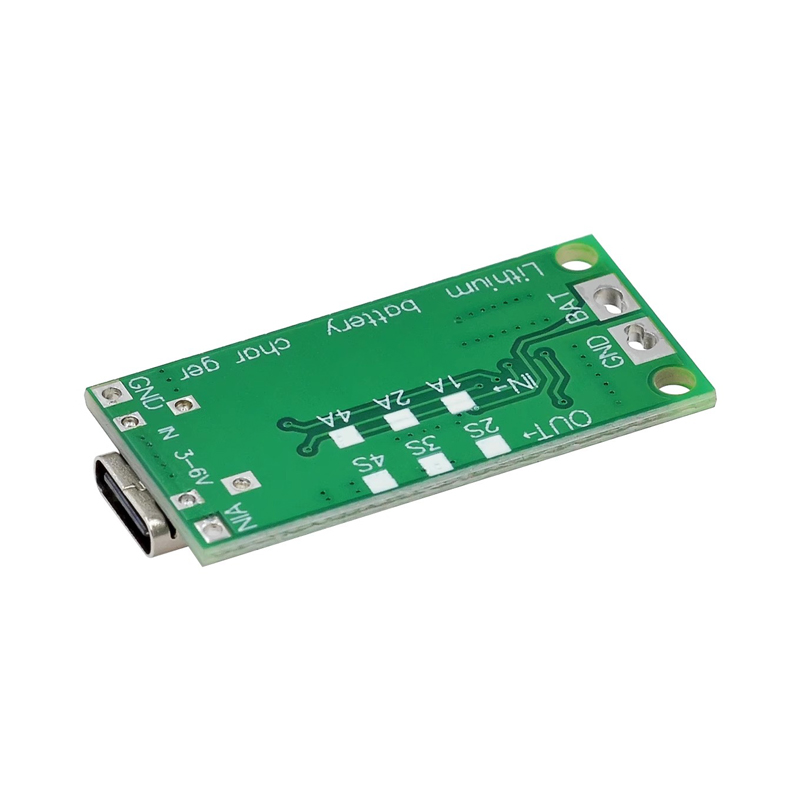

2S 3S 4S Lithium Battery Charger Battery Protection Board
Description:
1: Multiple choices, customers can choose what they need according to different needs
2: Widely used
3: High performance
4: Easy to understand and operate
5: Battery overvoltage protection
Scope:
2-Cell (2S) 8.4V version:

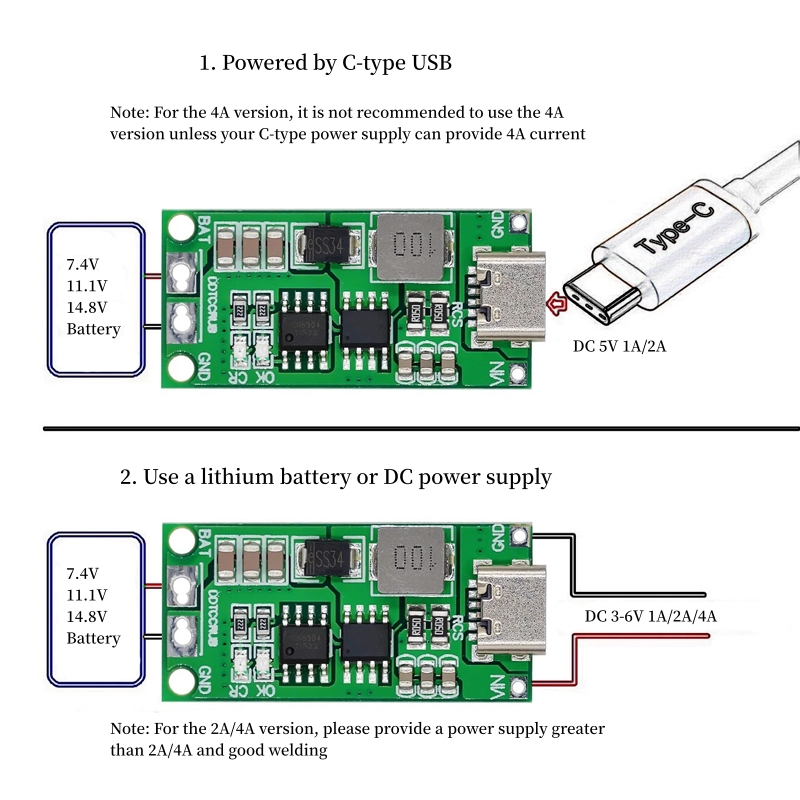

Input voltage: DC 3-6V (recommended DC 3.7V 5V)
Input current: 1A (1A Version); 2A (2A Version); 4A (4A Version)
Charging voltage: 8.4V
Charging current: 0.5 (1A Version); 1.1A (2A Version); 2.2A (4A Version)
3-Cell (3S) 12.6V version:
Input voltage: DC 3-6V (recommended DC 3.7V 5V)
Input current: 1A (1A Version); 2A (2A Version); 4A (4A Version)
Charging voltage: 12.6V
Charging current: 0.37A (1A Version); 0.74A (2A Version); 1.48A (4A Version)
4-Cell (4S) 16.8V version:
Input voltage: DC 3-6V (recommended DC 3.7V 5V)
Input current: 1A (1A Version); 2A (2A Version); 4A (4A Version)
Charging voltage: 16.8V
Charging current: 0.28A (1A Version); 0.56A (2A Version); 1.12A (4A Version)
