Home>Electronic Modules>Power Module>2-String 7.4V Lithium Battery Protection Board 8.4V Overcharge Discharge Polymer 8A Current 15A Current Limiting

2-String 7.4V Lithium Battery Protection Board 8.4V Overcharge Discharge Polymer 8A Current 15A Current LimitingItem NO.: 2S15A

US$ 2.68

Quantity: 1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs

Customized Requirements

Quantity: Stock ( 49999995 )

Estimate Shipping Cost

Adding to cart succeed

2-String 7.4V Lithium Battery Protection Board 8.4V Overcharge Discharge Polymer 8A Current 15A Current Limiting

color:red,size:xxl

Subtotal: US$ 0

View My Cart

Checkout

Detail

- Product Name: 2-String 7.4V Lithium Battery Protection Board 8.4V Overcharge Discharge Polymer 8A Current 15A Current Limiting
- Item NO.: 2S15A
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 7.4V , 8.4V , Lithium Battery Protection Board , 2s , 2 Series , 8A , Current Limiting , Overcharge , Discharge , 15A
- Creation Time: 2024-03-24
2-String 7.4V Lithium Battery Protection Board

Product Description:

This protective board cannot be used for lithium iron phosphate batteries, hernia lamps, hand drill battery packs, electric fish machine battery packs, electric bicycle battery packs, children's car batteries, 775 (4A) or above motors, and 1W fish eye LED lights. Customers who purchase the above combination should pay attention!

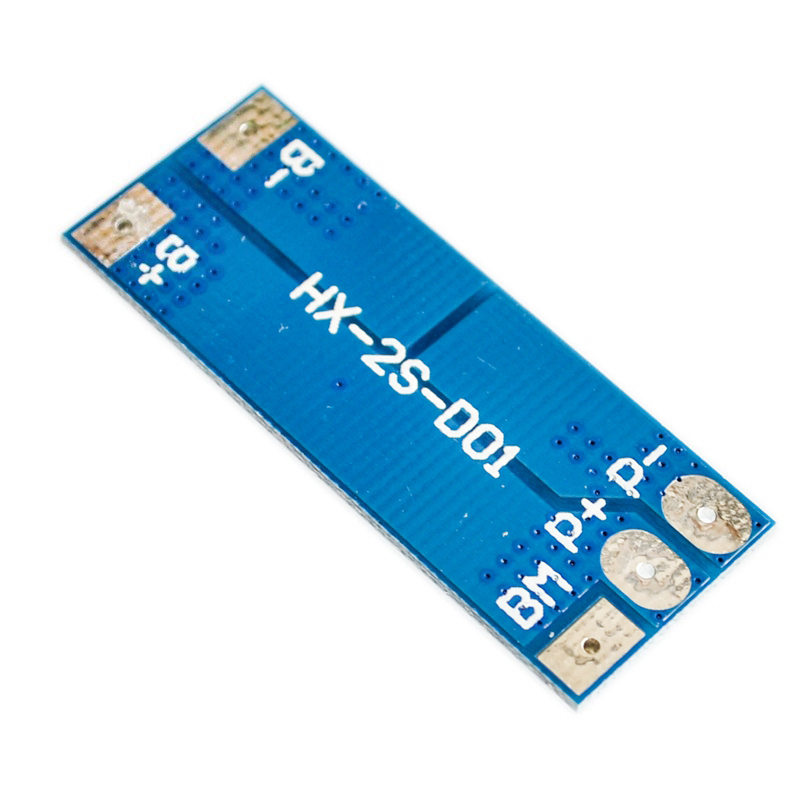

Model: HX-2S-D01

Overcharge voltage range: 4.25-4.35v ± 0.05v

Size: 41 * 16 * 3.5mm

Overdischarge voltage range: 2.5-3.0v ± 0.05v

Upper limit working current: 8A

Working temperature: -40--+50 ℃

Upper limit instantaneous current: 15A

Storage conditions: -40--+80 ℃

Quiescent current: less than 10uA

Effective life: greater than 50000 hours

Internal resistance: less than 300m Ω

Short circuit protection: Protectable, requires charging and recovery

Welding point description:

B+connected to the positive pole of the battery

B - Connected to the negative electrode of the battery

Connection point before connecting MB to battery 1 and battery 2

P+connected to the positive electrode of the charging/discharging end (shared by the charging/discharging end)

P-connected to the negative electrode of the charging/discharging end (shared by the charging/discharging end)
