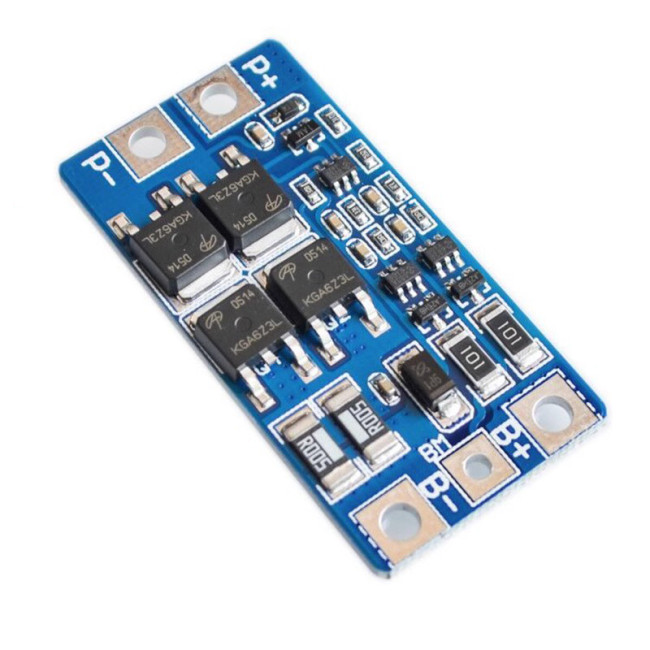

2-string 7.4V Lithium Battery Protection Board 8.4V With Balanced Overcharging and Discharging Protection 10AItem NO.: 2S10A

2-string 7.4V Lithium Battery Protection Board 10A

Attention:

This protective board cannot be used for lithium iron phosphate batteries, hernia lamps, hand drill battery packs, electric fish machine battery packs, electric bicycle battery packs, 775 (4A) or above motors, and 1W fish eye LED lights. Customers who purchase the above combination should pay attention!.

The properties of the lithium battery protection board:

Model: HX-2S-JH20

Overcharge voltage range: 4.25-4.35v ± 0.05v

Size: 46.7 * 23 * 3.15mm

Overdischarge voltage range: 2.5-3.0v ± 0.05v

Upper limit working current: 10A

Working temperature: -40--+50 ℃

Upper limit instantaneous current: 20A

Storage conditions: -40--+80 ℃

Quiescent current: less than 10uA

Effective life: greater than 50000 hours

Internal resistance: less than 300m Ω

Short circuit protection: Protectable, requires charging and recovery

Charging voltage: 8.4V-9V

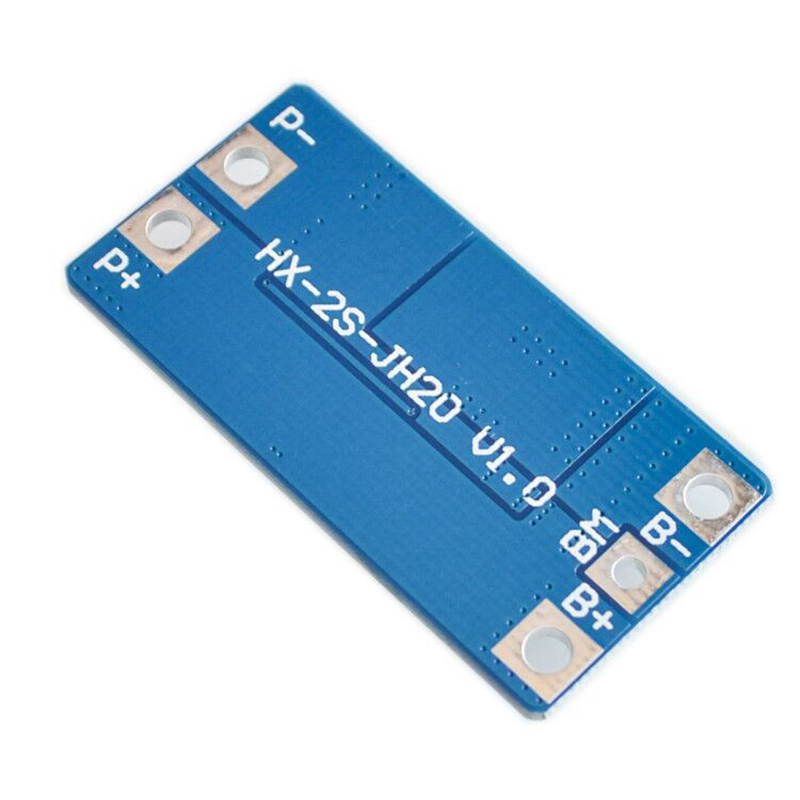

The size of the protective board is 46.7 * 23 * 3.15mm

Welding point description:

·B+connected to the positive pole of the battery;

·B - Connected to the negative electrode of the battery;

·Connect MB to the connection point before battery 1 and battery 2;

·P+is connected to the positive electrode of the charging/discharging end (shared by the charging/discharging end);

·P-connected to the negative electrode of the charging/discharging end (shared by the charging/discharging end).

Reminder: When assembling a battery pack, the battery voltage, capacity, and internal resistance should be paired properly. The battery voltage should be around 3.7V at the rated voltage, and there should be no output after assembling the battery pack. Charging with 8.4V voltage is sufficient.
