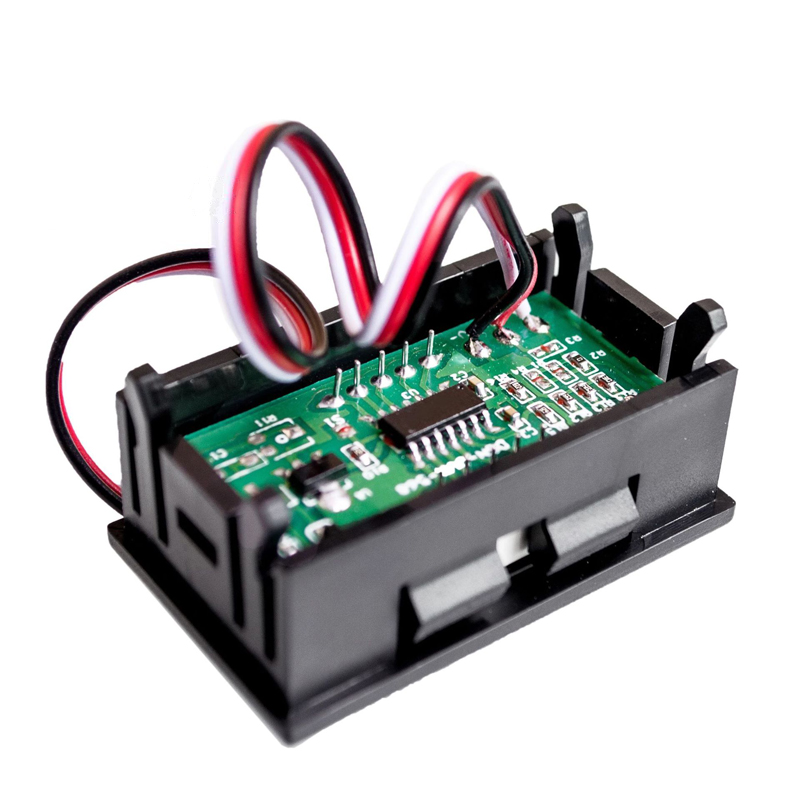

3-Wire DC Voltmeter With 0.56-Inch LED Digital Voltmeter For DC 0V30.0V Reverse Connection Protection

3-Wire DC Voltmeter With 0.56-Inch LED Digital Voltmeter For DC 0V30.0V Reverse Connection ProtectionItem NO.: 3wire0.56

US$ 3.51
Model
Red
Blue
Green
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
3-Wire DC Voltmeter With 0.56-Inch LED Digital Voltmeter For DC 0V30.0V Reverse Connection Protection
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • 3-Wire DC Voltmeter With 0.56-Inch



    Product Description:



    Model: DSN-DVM-568L-3

    Ultra low cost and high precision meet most application requirements.

    High precision

    Low start working voltage, red 4.5V, green 5.0V, blue 5.0V.

    Equipped with reverse connection protection, reverse connection does not burn.



    Technical parameters:



    Measurement range: 0.00V-30.0V

    Power supply range: red DC4.50-30.0V,

    Input: DC30.0V. Note: If the input voltage is higher than 30V, it may be damaged!

    Allowable error: ± 1%; The error is ± 0.3V when it is greater than or equal to 10V; Error ± 0.10 when less than 10V

    Input impedance:>100K Ω

    Working current: red<23mA

    Refresh speed: approximately 300mS once

    Display method: Three position 0.56 "LED digital tube

    Display color: red, green, blue

    Lead length: 20cm

    Overall dimensions: 48 x 29 x 22 mm, length x width x thickness;

    Installation hole: 46 x 27 mm

    Net weight: 19g

    Gross weight: 26g

    Working temperature: -10 ℃~65 ℃
