SG3525 And LM358 Inverter Drive Board High-frequency Machine With Adjustable High Current Totem Frequency (12V24V)Item NO.: SG3525M358
-
Customized Requirements
- Quantity
-
-
- Product Name: SG3525 And LM358 Inverter Drive Board High-frequency Machine With Adjustable High Current Totem Frequency (12V24V)
- Item NO.: SG3525M358
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: Drive Board , LM358 , SG3525 , Inverter , High-frequency Machine
- Creation Time: 2024-04-10

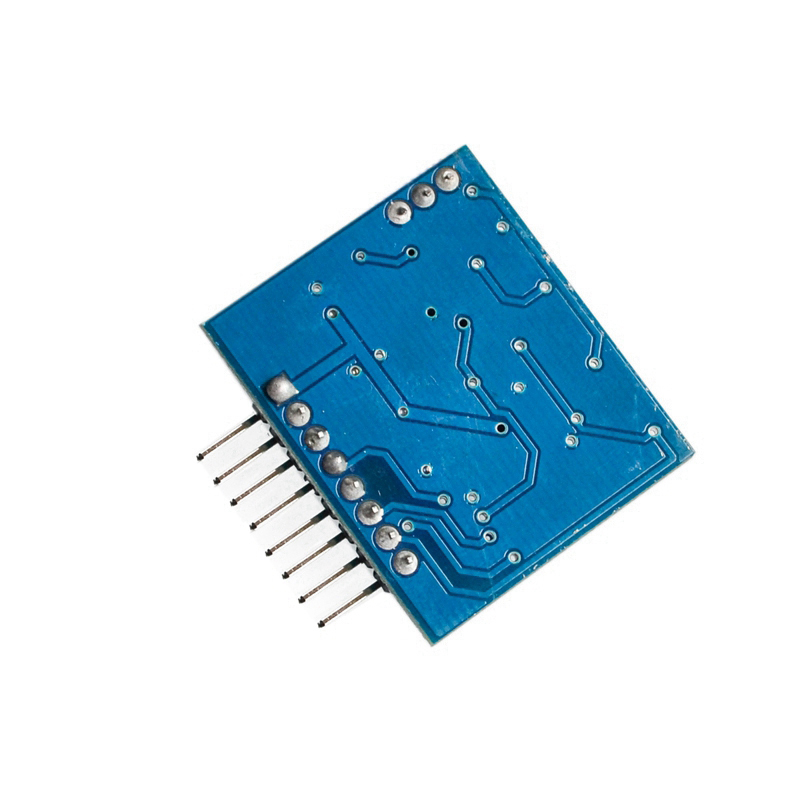

SG3525 And LM358 Inverter Drive Board
Product Description:
Size: 35 * 30 (MM)
Frequency adjustable
Overcurrent short circuit shutdown self-locking
Can stabilize the output voltage, the effect is good!
The output current can reach around 1A, and there is no problem driving 20 3205 effect transistors
Power supply 8-12V
If there are any updates to the product, we will not notify you unless there are changes to the functionality! Pin Description:
1. Positive power supply
2. Signal output
3. Negative pole of power supply
4. Signal output
5. Optocoupler input positive pole
6. Optocoupler output negative pole
7. Signal off short leg
8. Signal feedback pin
