US-016 Ultrasonic Ranging Module Analog Voltage Output Dual Range Analog Quantity High AccuracyItem NO.: US-016
-
Customized Requirements
- Quantity
-
-
- Product Name: US-016 Ultrasonic Ranging Module Analog Voltage Output Dual Range Analog Quantity High Accuracy
- Item NO.: US-016
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Ultrasonic Ranging Module , US-016
- Creation Time: 2024-05-06

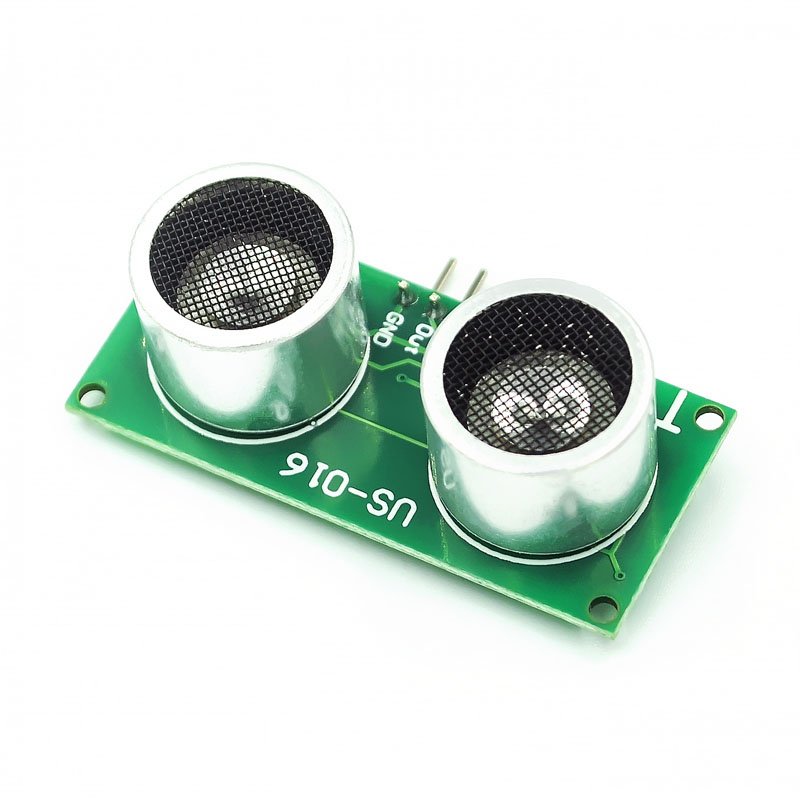

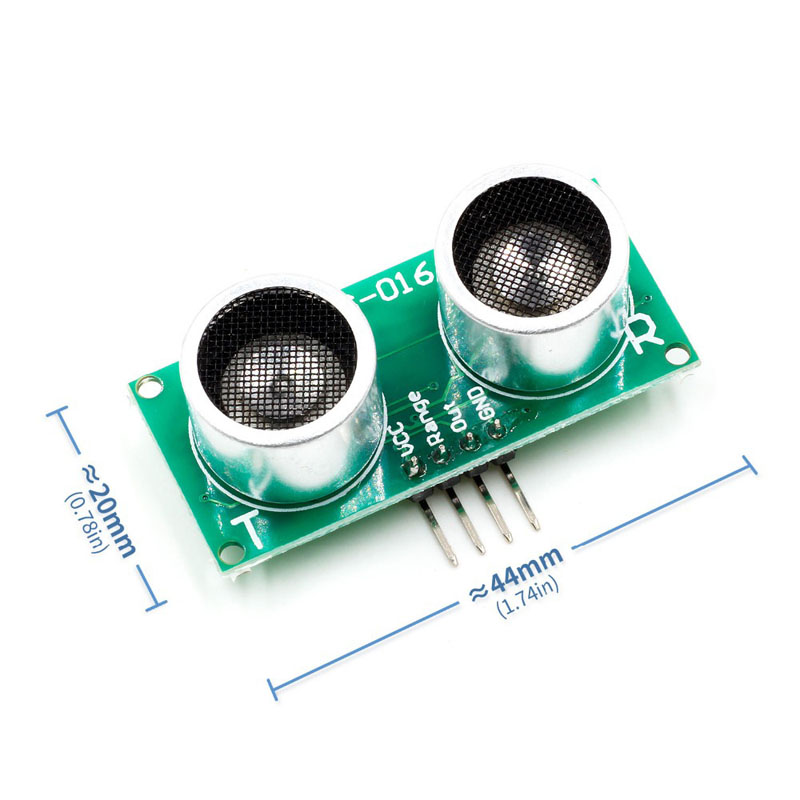

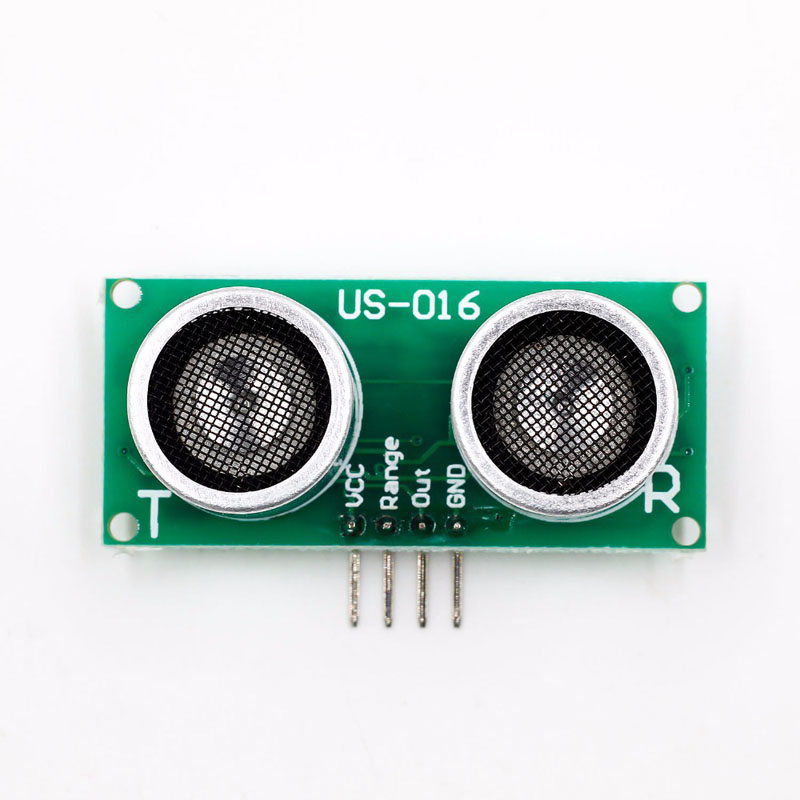

US-016 Ultrasonic Ranging Module
Summary:
The US-016 ultrasonic ranging module can achieve a non-contact ranging function of 2cm~3m, with a power supply voltage of 5V and a working current of 3.8mA. It supports analog voltage output, ensuring stable and reliable operation. This module can be set to different ranges according to different application scenarios (large measurement distances are 1m and 3m respectively); When the Range pin is suspended, the range is 3m.
US-016 can convert the measured distance into an analog voltage output, and the output voltage value is proportional to the measured distance
Main Technical Parameters:
● Name: US-016 Ultrasonic Ranging Module
● Working voltage: DC 5V
● Working current: 3.8mA
● Operating temperature: 0~+70 ℃
● Output mode: Analog voltage (0~Vcc)
● Sensing angle: less than 15 degrees
● Detection distance: 2cm-300cm
● Detection accuracy: 0.3cm+1%
● Resolution: 1mm
