Detail

- Product Name: 3S 12V18650 Lithium Battery Protection Board 11.1V 12.6V Anti Overcharge Over Discharge Over Current Protection 10A
- Item NO.: 3S1865010A
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 18650 , Lithium Battery Protection Board , 3S , Overcharge , Discharge , 10A , 11.1V , 3-String , 12.6V , 12V , Over Current Protection
- Creation Time: 2024-03-24

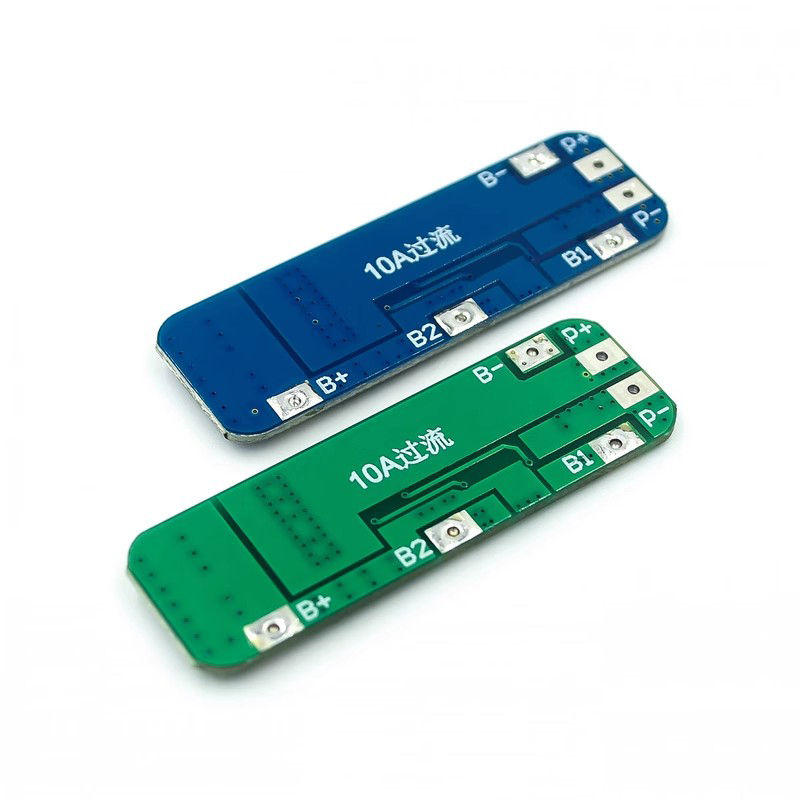

3S 12V18650 Lithium Battery Protection Board 10A

The Properties of the Lithium Battery Protection Board:

Model: HX-3S-01

Overcharge voltage range: 4.25-4.35v ± 0.05v

Size: 50 * 16 * 1.0mm

Overdischarge voltage range: 2.3-3.0v ± 0.05v

Working current: 5-8A

Working temperature: -40--+50 ℃

Instantaneous current: 9-10A

Storage conditions: -40--+80 ℃

Quiescent current: less than 6uA

Effective life: greater than 30000 hours

Internal resistance: less than 60m Ω

Short circuit protection: Protectable, delayed self recovery.

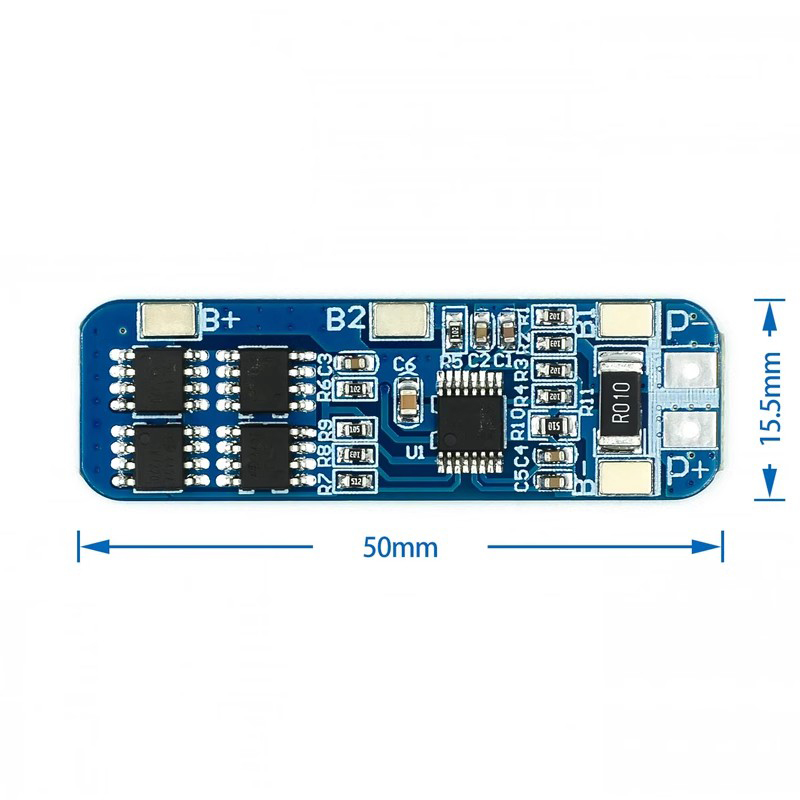

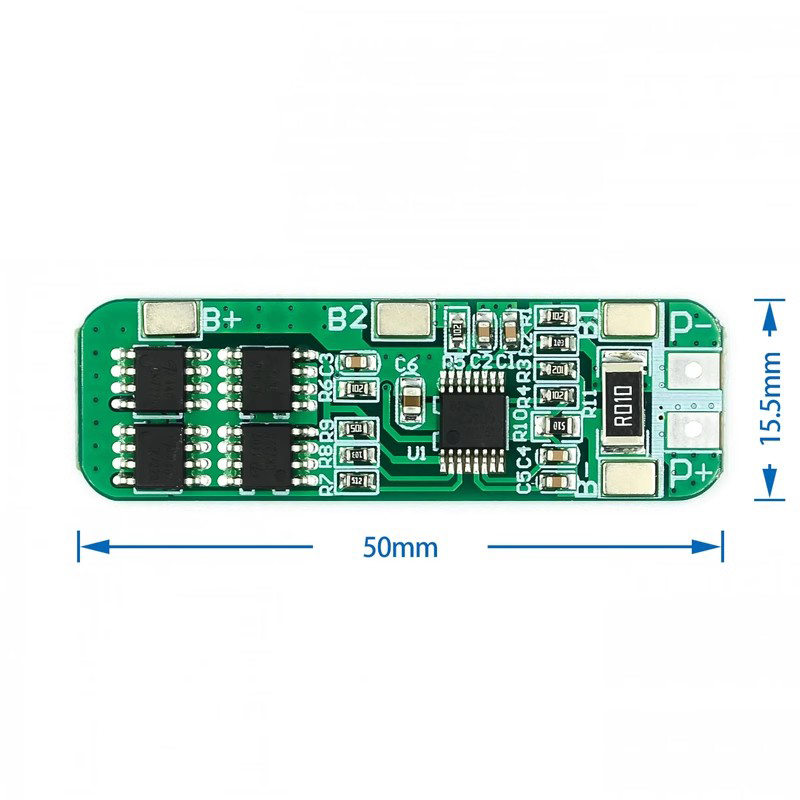

The size and device description of the protective board: The size of the protective board is 50 * 16 * 1.0mm; The components are Seiko S-8254AA protection chip and FDS 4435A * 4;
