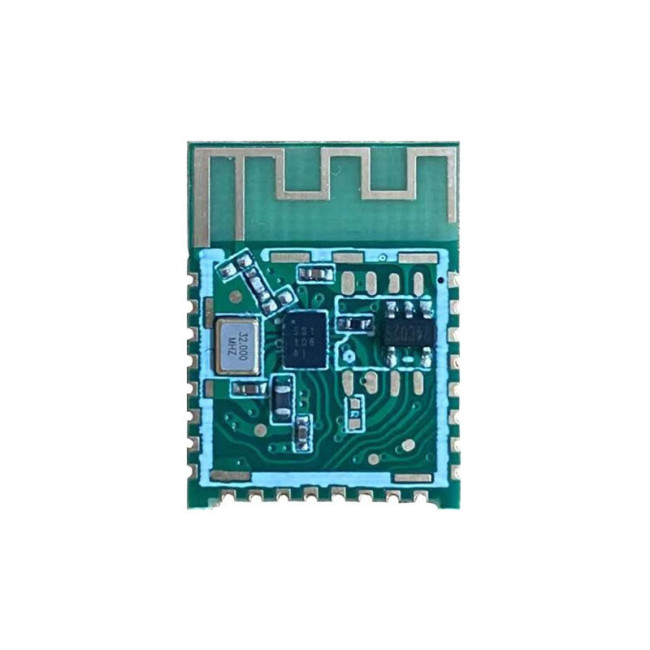

JDY-27 Module Bluetooth 5.1 Bluetooth Transparent Module Master-slave Integrated ModuleItem NO.: JDY-27
-
Customized Requirements
- Quantity
-
-
- Product Name: JDY-27 Module Bluetooth 5.1 Bluetooth Transparent Module Master-slave Integrated Module
- Item NO.: JDY-27
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Wireless Module
- Tag: JDY-27 , Bluetooth 5.1 , Bluetooth Transparent Module , aster-slave Integrated Module
- Creation Time: 2024-05-11
JDY-27 Module Bluetooth 5.1
Introduction:
The JDY-27 master-slave integrated transmission module is based on the Bluetooth 5.1 protocol standard, with a working frequency range of 2.4GHz, modulation method of GFSK, transmission power of 2dB, transmission distance of 100 meters. It supports users to modify device names, baud rates, and other instructions through AT commands, making it convenient, fast, and flexible to use.
Parameters:
Model: JDY-27
Working frequency band: 2.4G
Transmission power: 2db(maximum)
Communication interface: UART
Working voltage: 1.7V-3.6V
Working temperature: -40 ℃ -80 ℃
Antenna: Built in PCB antenna
Receiving sensitivity: -96dbm
Transmission distance: 100 meters
Master-slave support: master-slave integration
Module size: 19.6 * 14.94 * 1.8 mm (length, width, height)
Bluetooth version: BLE 5.1 (compatible with BLE 4.0, BLE 4.2, BLE 5.0)
Wake up current: 300uA (with broadcast)
Shallow sleep current:<50uA (with broadcast)
Deep sleep current: 1uA (no broadcast)
Command parameter saving: parameter configuration and power-off data are saved
SMT welding temperature:<250 ℃
Serial port to mobile phone: 12K Byte/S (supports 115200 full speed data transmission to mobile phone without packet loss)
Send 8K Byte/S from mobile phone to serial port
Android MTU support: ≤ 247 bytes
Apple MTU support: ≤ 185 bytes
