4000W Thyristor Voltage Regulator CNC High-power Dimming Speed Regulation Temperature Control Digital DisplayItem NO.: 4000W CNC
-
Customized Requirements
- Quantity
-
-
- Product Name: 4000W Thyristor Voltage Regulator CNC High-power Dimming Speed Regulation Temperature Control Digital Display
- Item NO.: 4000W CNC
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: Digital Display , High-power , CNC , 4000W , Thyristor Voltage Regulator , Dimming Speed Regulation , Temperature Control
- Creation Time: 2024-05-15

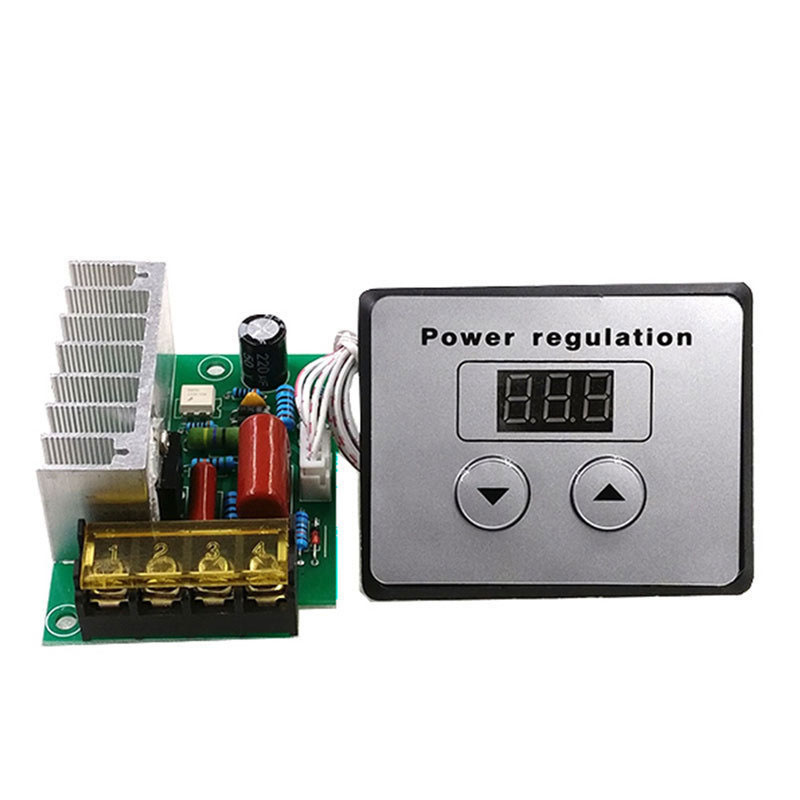

4000W Thyristor Voltage Regulator Digital Display
Parameters:
Operating voltage: AC 220V
High power: 4000W resistive load limited power, recommended for long-term use at room temperature within 2000W
Voltage regulation: 0- (220 volts per 100 steps regulation, non-linear)
Using a new type of bidirectional high-power thyristor, as the current can reach 40 amperes, it effectively solves the overcurrent problem caused by the low resistance of the electric furnace wire during cooling; It is easy to adjust the output voltage of the mains power, and can be adjusted freely between 0- (220 volts per 100 levels, non-linear) for use in electrical appliances. For example, adjusting the heating of electric furnaces and water heaters, adjusting the lighting of lamps, adjusting the speed of small motors, and adjusting the temperature of electric soldering irons. Thus achieving the effects of dimming, temperature regulation, and pressure regulation. Large appliances with a power consumption of less than 2000 watts are sufficient for general household appliances or small factories due to their already high power. This voltage regulator is equipped with bidirectional high-power controllable silicon, which can be used without adding any components, making it very convenient and practical. Comes with built-in heat sink, buyers can use it as soon as they receive it,

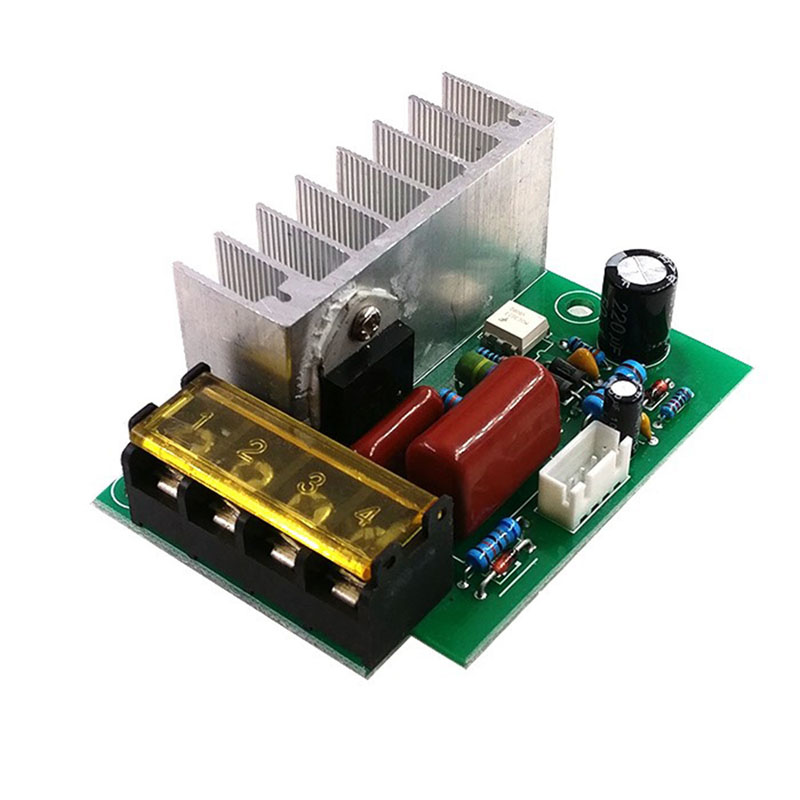

High current wiring terminals

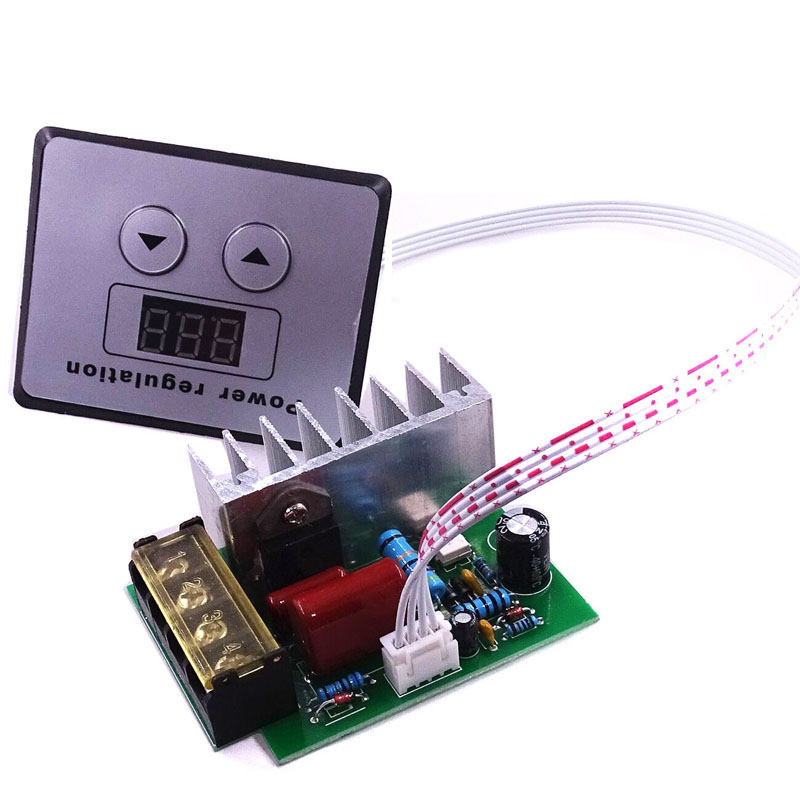

Button adjustment stability potentiometer type voltage regulator
The numerical value is automatically saved, and it will automatically start to the last set value after being powered on
Unified anti-static packaging
All metal film resistors are stable and durable
The voltage regulator with peak voltage absorption circuit effectively protects high-power thyristors, providing longer and more durable lifespan.
This product cannot replace the battery charger of an electric vehicle, nor can it drive appliances that use a power switch (such as 110V televisions, speakers, refrigerators, air conditioners, and computer-based rice cookers), nor can it drive induction cookers or energy-saving lights.
