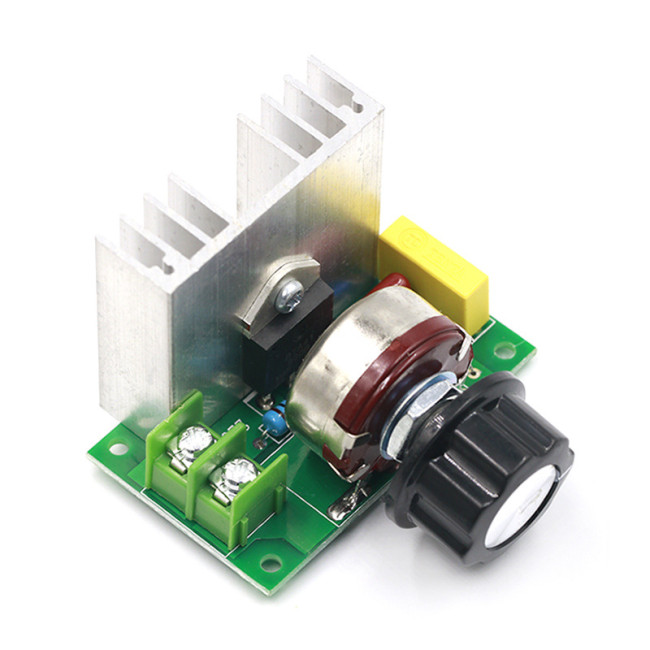

4000W Thyristor Voltage Regulator Motor Speed Controller Electric Furnace Fan High-power Dimming and Temperature Regulating SwitchItem NO.: 4000W 2P
-
Customized Requirements
- Quantity
-
-
- Product Name: 4000W Thyristor Voltage Regulator Motor Speed Controller Electric Furnace Fan High-power Dimming and Temperature Regulating Switch
- Item NO.: 4000W 2P
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 4000W , Thyristor Voltage Regulator , Motor Speed Controller , Dimming and Temperature Regulating Switch
- Creation Time: 2024-05-15

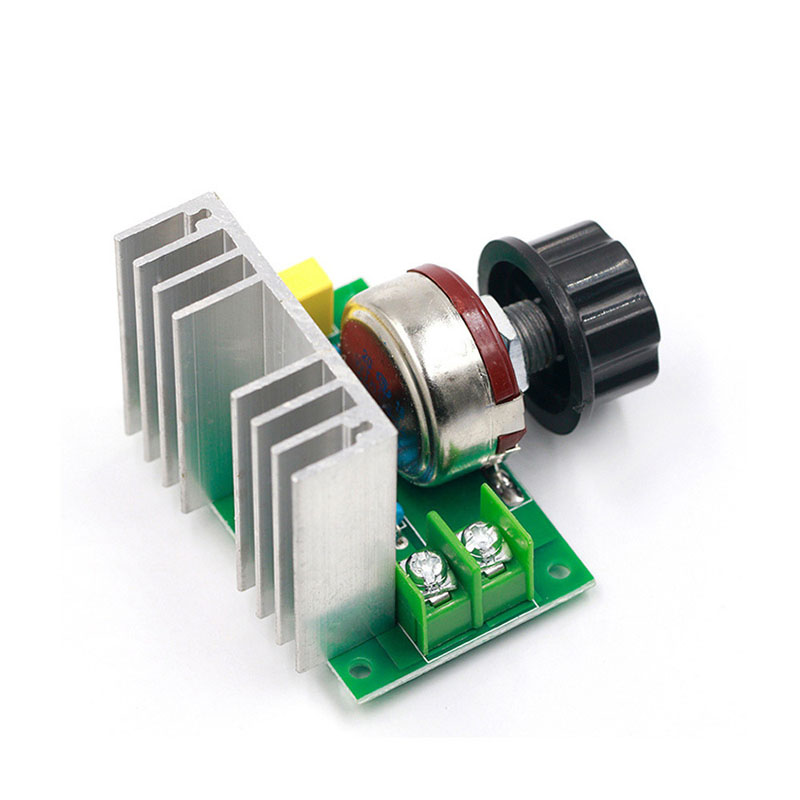

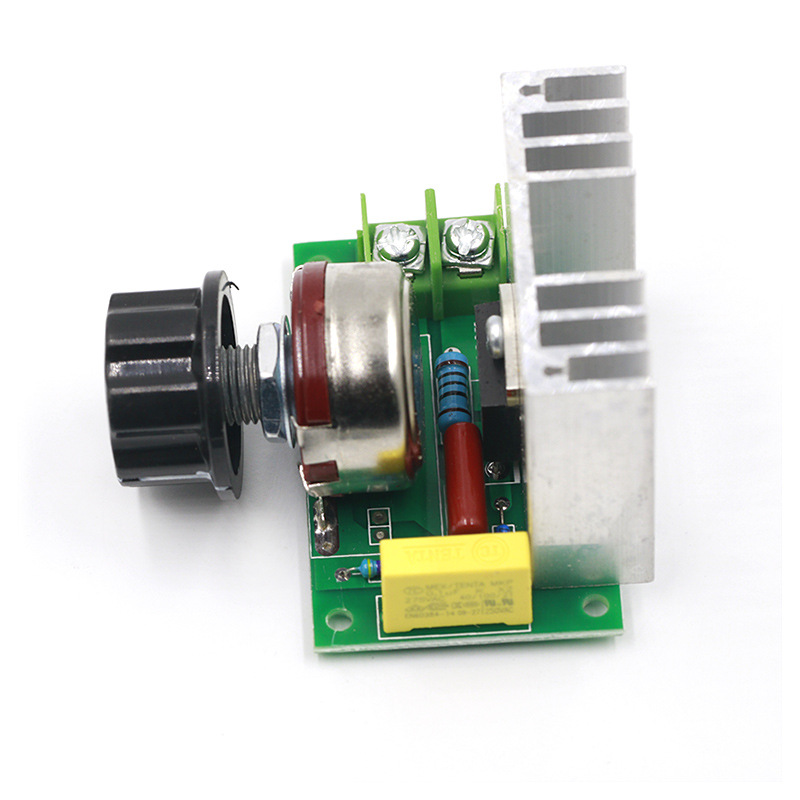

4000W Thyristor Voltage Regulator
Technical parameters:
Operating voltage: AC 220V
Maximum power: 4000W
Voltage regulation: AC 0V-220V continuously adjustable

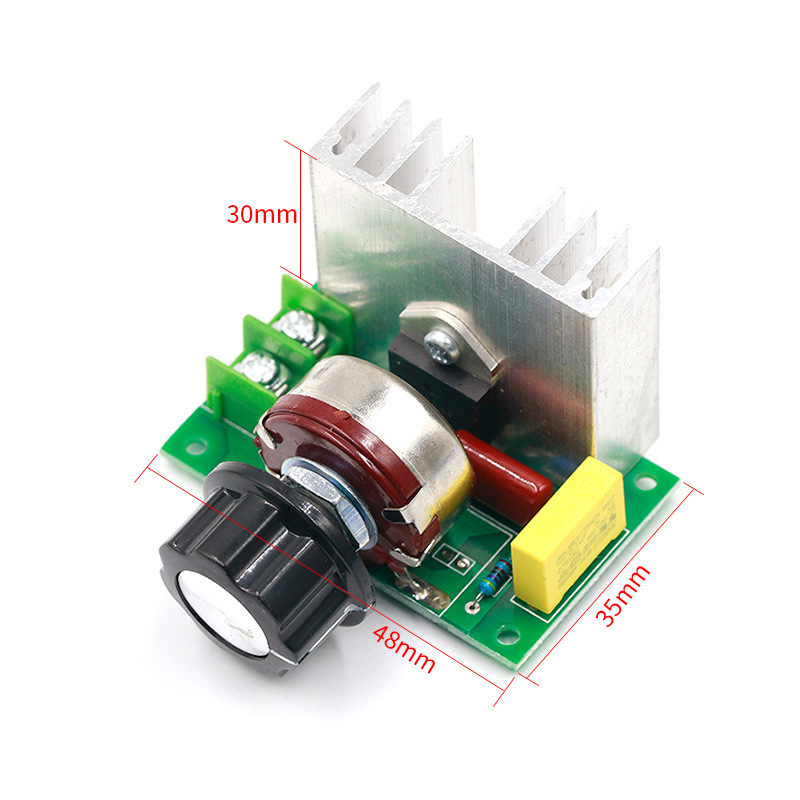

Specification and size: High temperature and fire-resistant FR4 circuit board, circuit board size 60mm * 37mm, height 45mm
Circuit function:
AC 0V-220V continuously adjustable, zero lag, zero delay, super strong heat dissipation.
Circuit characteristics:
Anti surge, anti peak, RC absorption multiple protection!
Usage:
Connect the voltage regulator in series in the circuit, and connect the regulator, desk lamp, and electrical appliances in series in the circuit (i.e. disconnect any of the live or neutral wires of the desk lamp, electrical appliance, etc., and connect them to the wiring terminal of the product). Rotate the knob cap to adjust the light, speed, temperature, and voltage; Easy to operate and convenient.
Adopting a new type of bidirectional high-power thyristor with a current of up to 40 amperes, it effectively solves the overcurrent problem caused by the low resistance of the electric furnace wire during cooling; It is easy to adjust the output voltage of the mains power, continuously adjustable between 0V and 220V, with zero delay and zero lag. Usage examples: Adjusting the heating of electric furnaces and water heaters, adjusting the lighting of lamps, adjusting the speed of small motors, adjusting the temperature of electric soldering irons, adjusting the voltage of imported 110V appliances (220V to 110V), etc., in order to achieve the effect of temperature, light, speed, and pressure regulation. Maximum load power: 4000W. It can be used for large, medium, and small electrical appliances. Due to its high power, it is sufficient for general household appliances or small factories (the power of inductive or capacitive loads should be reduced). Gently rotate the knob cap to adjust it flexibly without adding any components, making the product practical and convenient.

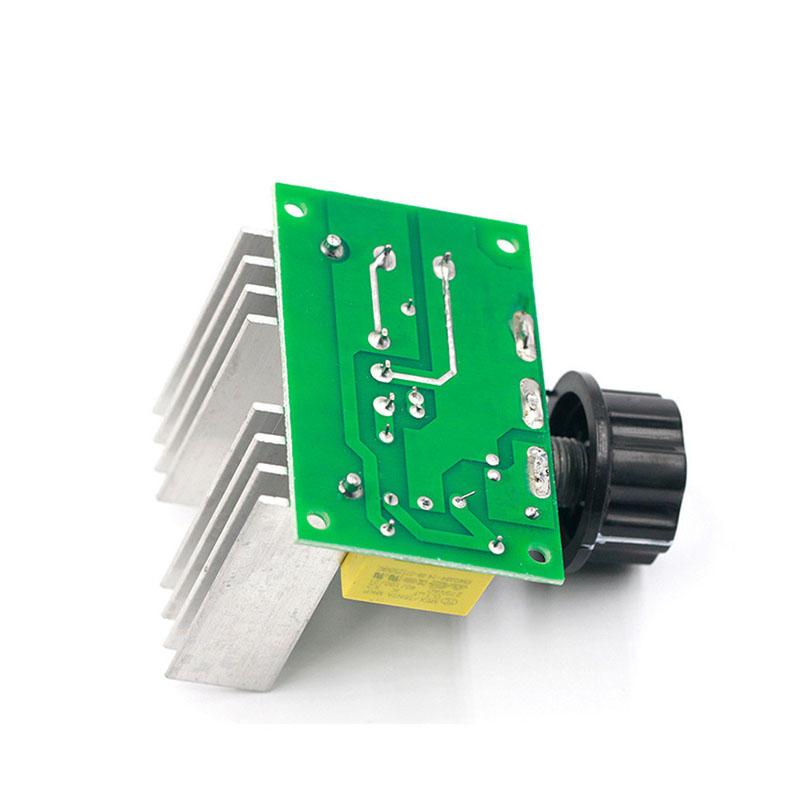

Note that some of the wiring on the back of the module has been exposed to copper, but it has not been soldered. For high current applications, customers should apply tin as needed.
Using ultra high power STMicroelectronics thyristor, BTA41-800B, high efficiency!
1.6mm thick epoxy copper-clad sheet with high current design, buyers can use it upon receiving it.
This voltage regulator is equipped with a peak voltage absorption circuit to effectively protect high-power thyristors, providing a longer and more durable lifespan.
