With Shell 5A CV CC Step-down Module With Voltage Current Power LED Display To Drive Lithium Battery ChargingItem NO.: XY-HXC

With Shell 5A CV CC Step Down Module

Module Parameters:

● Input voltage: 5-36V

● Output voltage: 1.25-32V continuously adjustable

● Output current: adjustable, 5A (recommended for use within 4.5A)

● Output power: 75W (recommended for use within 50W, please reduce power for high pressure differential)

● Operating temperature: -40~+85 degrees Celsius

● Operating frequency: 180KHz

● Conversion efficiency: 96%

● Short circuit protection: Yes

● Overtemperature protection: Yes (automatic shutdown output after overtemperature)

● Input reverse protection: None, (if necessary, please connect a high current diode in series with the input)

● Installation method: 4 3mm screws

● Wiring method: Wiring terminal or welding terminal, V-IN is the input, V-OUT is the output

Module Highlights:

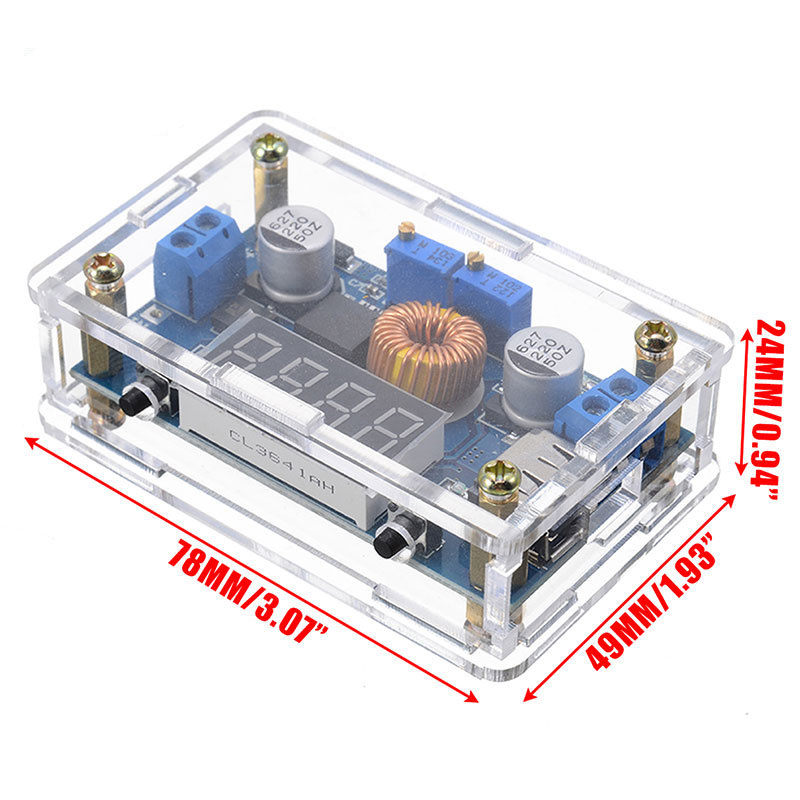

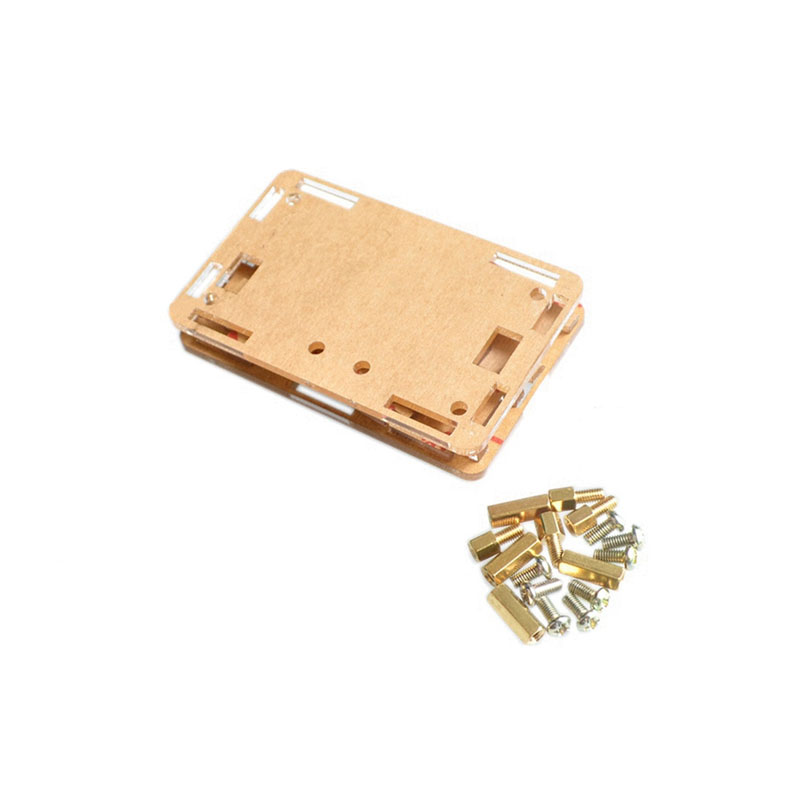

1. With crystal shell

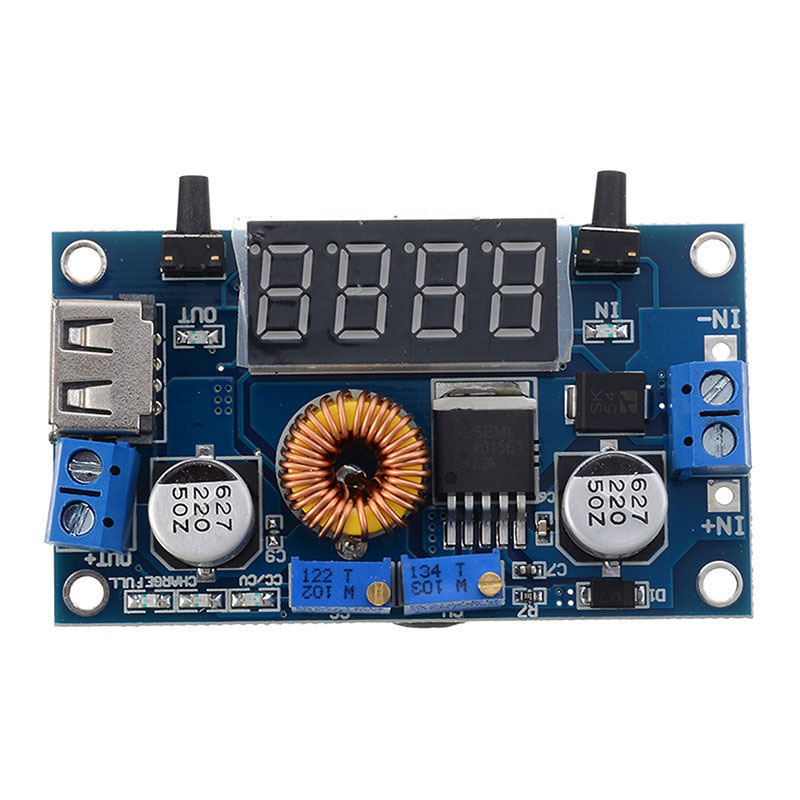

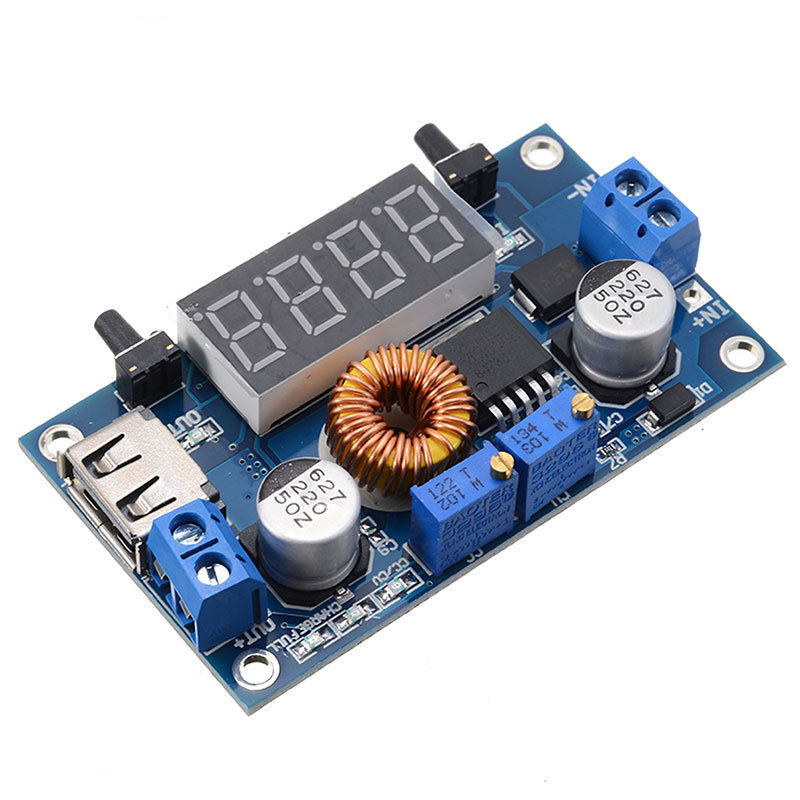

2. On board voltage, current, and power meters, you can easily use this module without a multimeter.

3. On board USB interface, which can easily charge your digital product. (Note: The USB output voltage is consistent with the module output voltage, not a fixed 5V output. Please confirm before charging the USB device)

4. High power, high efficiency, 5A, low ripple;

5. Three major functions:

(1) Used as a common step-down module with overcurrent protection capability;

(2) Used as a charger for various voltage value lithium batteries, batteries, and nickel cadmium nickel hydrogen batteries (battery packs), used in solar panels, wind turbines, and other applications;

(3) Used as a high-power LED constant current drive module;

6. It has two modes: constant voltage and constant current, with an indicator light indicating which mode the module is currently in;

When used as a lithium battery charger, the float charging voltage and charging current can be set, with an indicator light indicating

Indicates whether it is charging or fully charged;

8. It has a current limiting protection function, which will not burn out the module even if the output is short circuited.

9. On board voltage and ampere meters can be self calibrated to avoid inaccurate reading of voltmeter!
