3-String 11.1V 12.6V 18650 Lithium Battery Protection Board with Balanced Startable Drill 40A CurrentItem NO.: 3S40A
-
Customized Requirements
- Quantity
-
-
- Product Name: 3-String 11.1V 12.6V 18650 Lithium Battery Protection Board with Balanced Startable Drill 40A Current
- Item NO.: 3S40A
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 18650 , Lithium Battery Protection Board , 3S , Balanced , 11.1V , 3-String , 12.6V , Startable Drill , 40A
- Creation Time: 2024-03-24

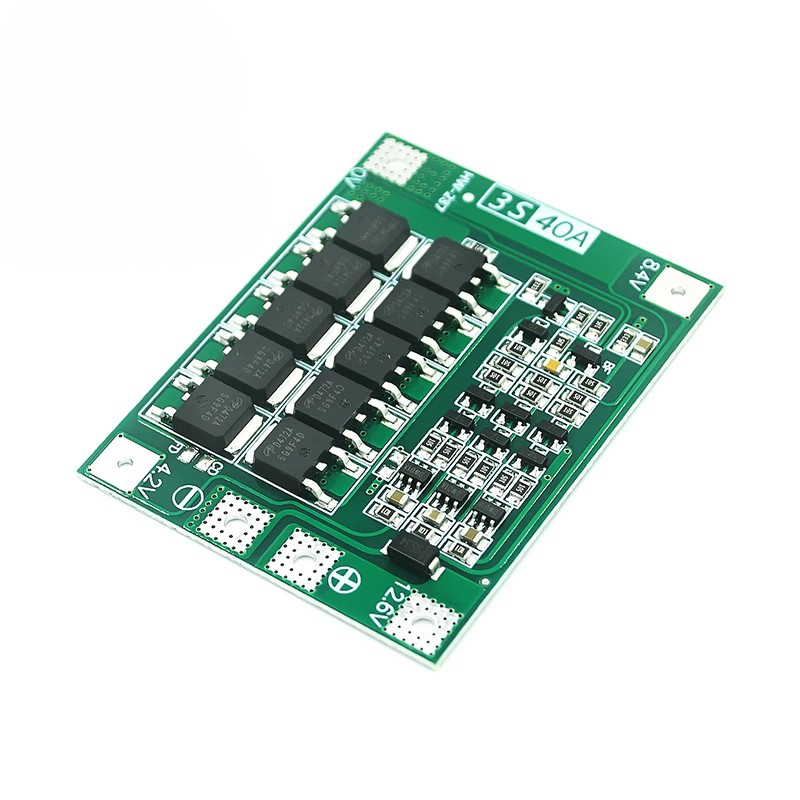

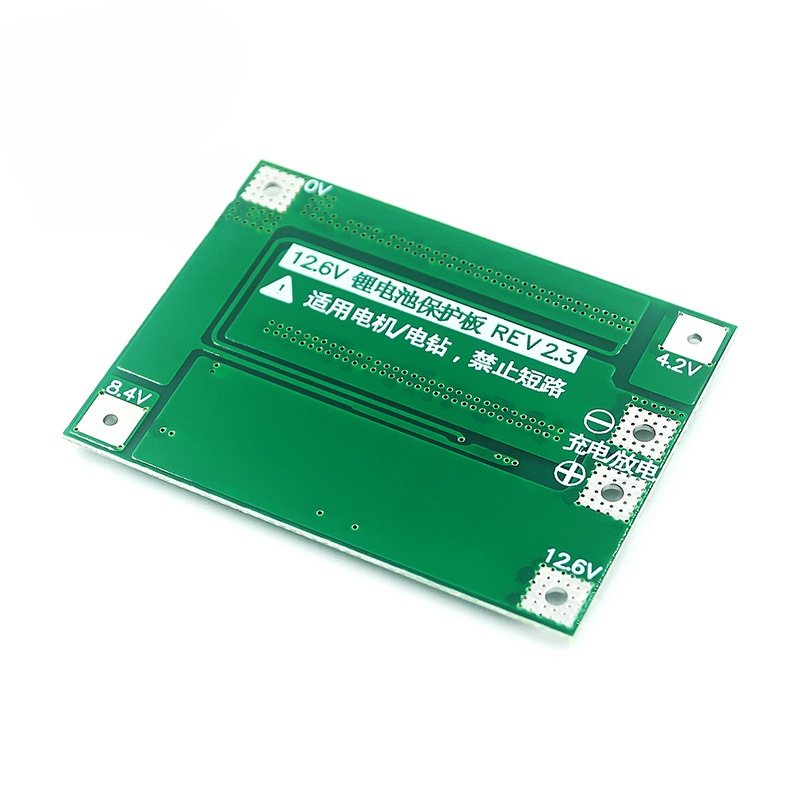

3-String 11.1V 12.6V 18650 Lithium Battery Protection Board
Product Description:
Scope of application: Suitable for lithium batteries with a nominal voltage of 3.7V and a fully charged voltage of 4.2V (including 18650, 26650, polymer lithium batteries, without any limitations on external dimensions)

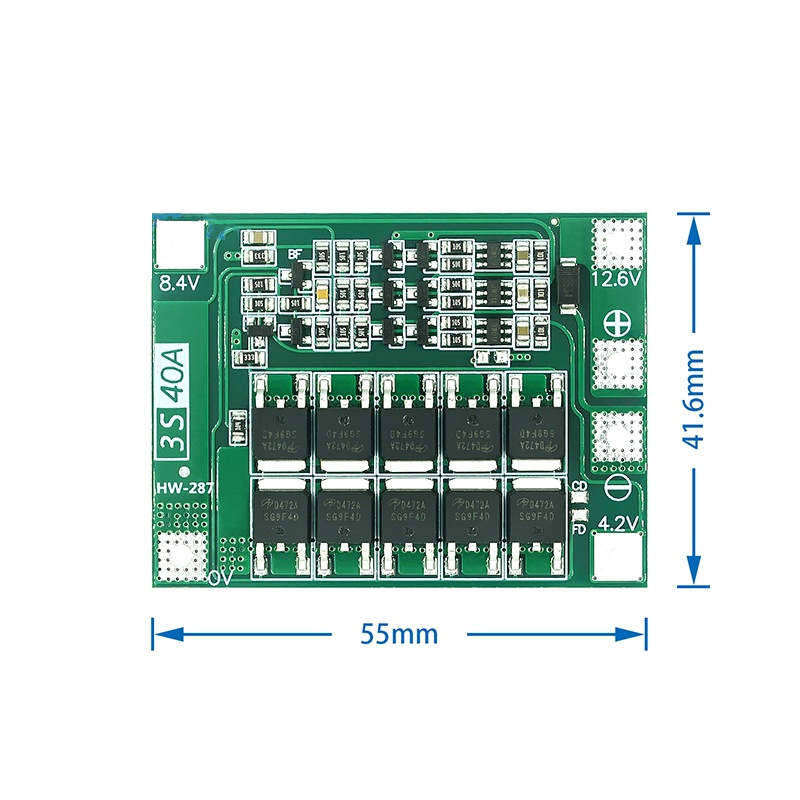

Product size: 41 * 55 * 3.4mm (enhanced version)
Product weight: 8.8g (enhanced version)
Charging voltage: 12.6V -13.6V
Continuous discharge current (upper limit): 40A (If the cooling environment is not good, please reduce the load current for use)
Continuous charging current (upper limit): 20A
Enhanced version: suitable for electric drills with starting current below 80A and power below 130W.
Attention 1: Successfully starting the drill requires 3 15C-20C power batteries or 6 10C-15C power batteries (regular 18650 cannot start the drill!!); 0V and 12.6V connecting wires, use copper wires with a size of 3 square millimeters or more (nickel sheets cannot be used!!!).
Attention 2: Strictly follow the wiring diagram for 0V, 4.2V, 8.4V, and 12.6V, and do not intentionally short circuit.

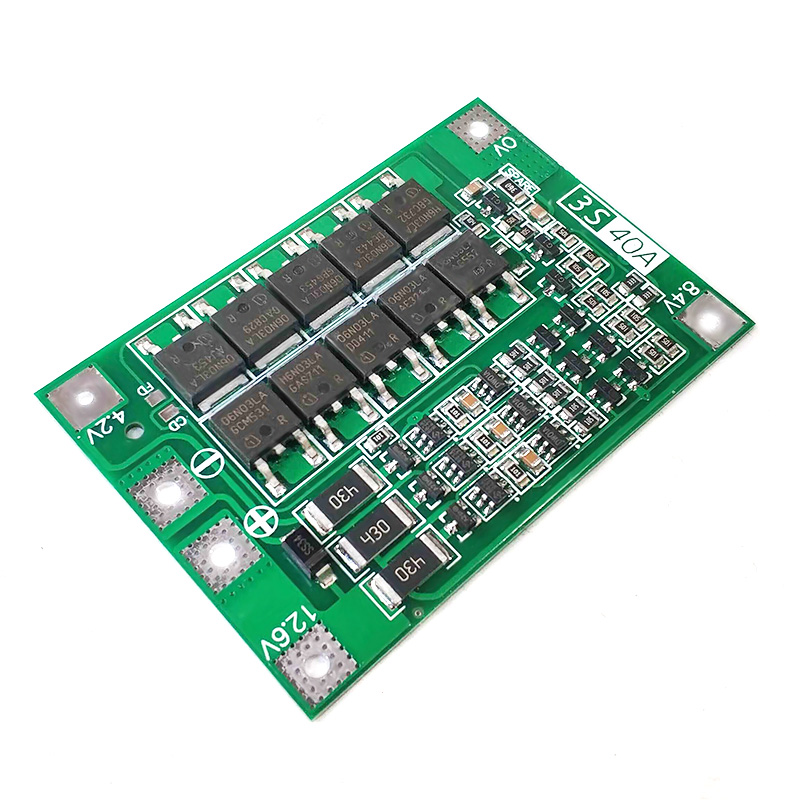

Note 3: When charging the battery, it is normal for the "430" resistor to generate heat, indicating that the equalization circuit is working; If the "430" resistor also heats up without charging, please check if it is connected incorrectly.
