5128 Power Amplifier Module AB Class D Digital Power Amplifier Module 5W Mono Audio Power Amplifier ModuleItem NO.: 5128 Amplifier D
-
Customized Requirements
- Quantity
-
-
- Product Name: 5128 Power Amplifier Module AB Class D Digital Power Amplifier Module 5W Mono Audio Power Amplifier Module
- Item NO.: 5128 Amplifier D
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: 5128 , Power Amplifier Module , AB Class , Class D , Digital Power Amplifier Module , 5W , Mono Audio Power Amplifier Module
- Creation Time: 2024-03-26
5128 Power Amplifier Module
AB Product Parameters:
● Product name: Mono digital power amplifier module
● Load range: Impedance 2 8 ohms, power 3-50W speaker
● Working voltage: DC2.5-5.5V
● Operating current: above 1A
● Output power: 3-5W

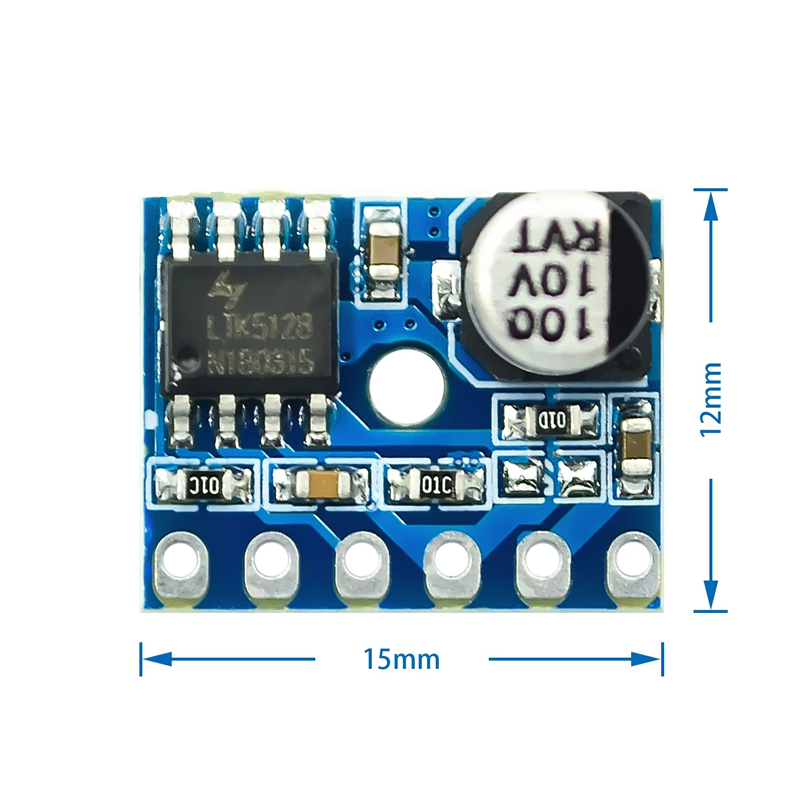

● Finished product specification: 20x 16x15mm (length x width x height)
● Product net weight: 2.5g
Class D Parameter Characteristics:
● Operating voltage: 2.5-5.5VDC
● Operating current: above 1A
● Output power: 3-5 W
● Load parameters: Impedance 4-8 Ω??, Power 3-5 W horn
● Signal to noise ratio: 85dB @ VDD=5V, Vorms=1V
● Class D power amplifier module
● Low distortion, low background noise
