5A XL4015 CV and CC Step-down Power Module Voltage and Current Display LED Driving Lithium Battery ChargingItem NO.: XL4015 display
-
Customized Requirements
- Quantity
-
-
- Product Name: 5A XL4015 CV and CC Step-down Power Module Voltage and Current Display LED Driving Lithium Battery Charging
- Item NO.: XL4015 display
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 5A , Step-down Power Module , XL4015 , CV and CC , Voltage and Current Display , LED Driving , Lithium Battery Charging
- Creation Time: 2024-04-10

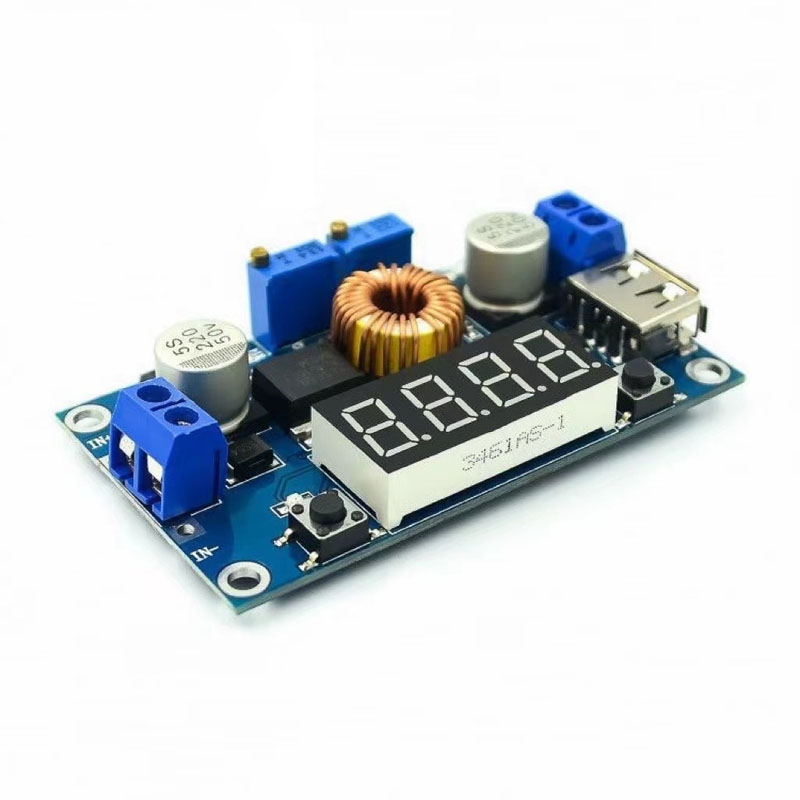

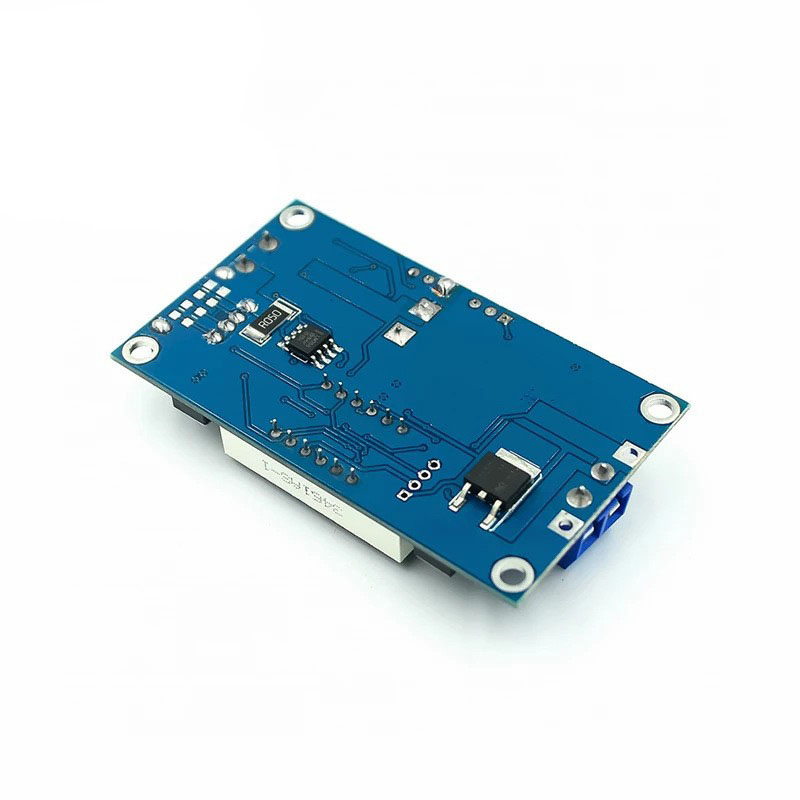

5A XL4015 CV and CC Step Down Power Module
Module Parameters:
●Input voltage: 5-36V
●Output voltage: 1.25-32V continuously adjustable
●Output current: adjustable, 5A (recommended for use within 4.5A)
●Output power: 75W (recommended for use within 50W, please reduce power for high pressure differential)
●Operating temperature: -40~+85 degrees Celsius
●Operating frequency: 180KHz
●Conversion efficiency: 96%
●Short circuit protection: Yes
● Overtemperature protection: Yes (automatic shutdown output after overtemperature)
● Input reverse protection: None, (if necessary, please connect a high current diode in series with the input)

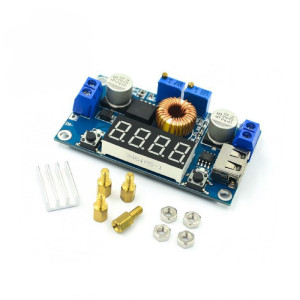

●Installation method: 4 3mm screws
●Wiring method: Wiring terminal or welding terminal, V-IN is the input, V-OUT is the output

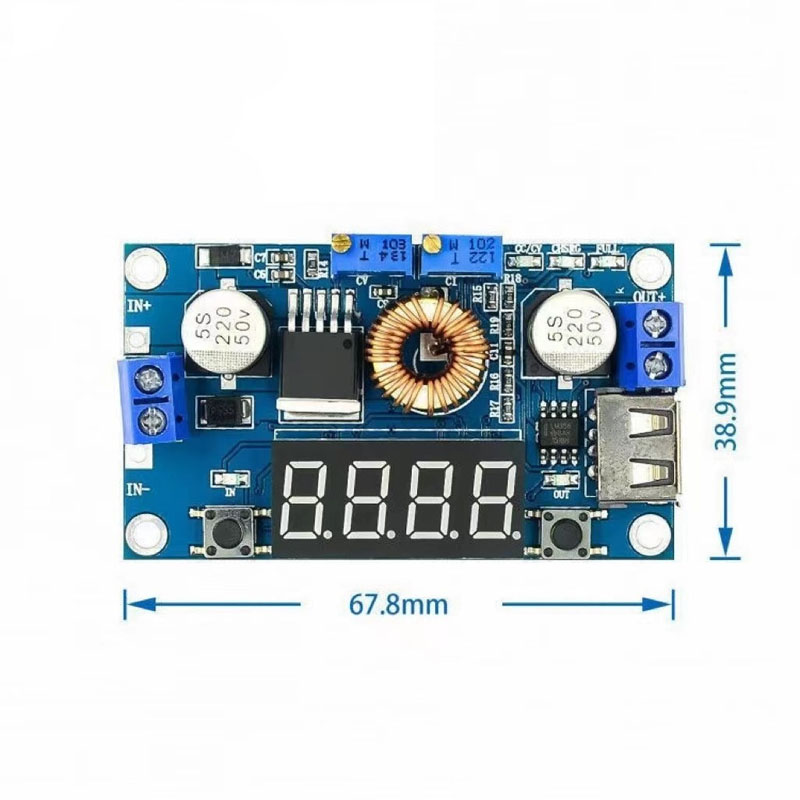

●Module size: 68.2mm long, 38.8mm wide, and 15mm high
●Weight: 35g
