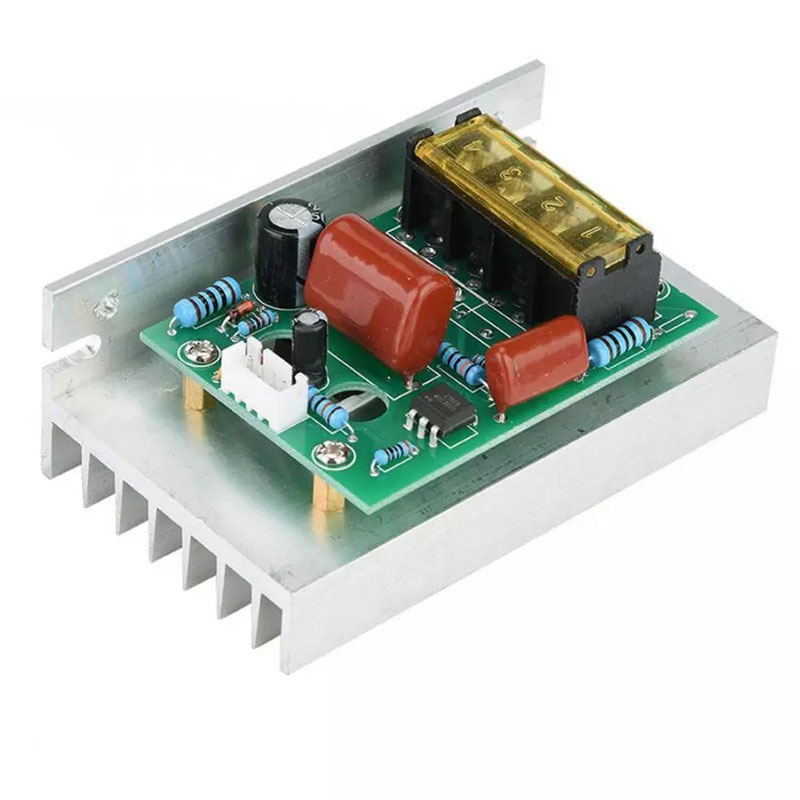

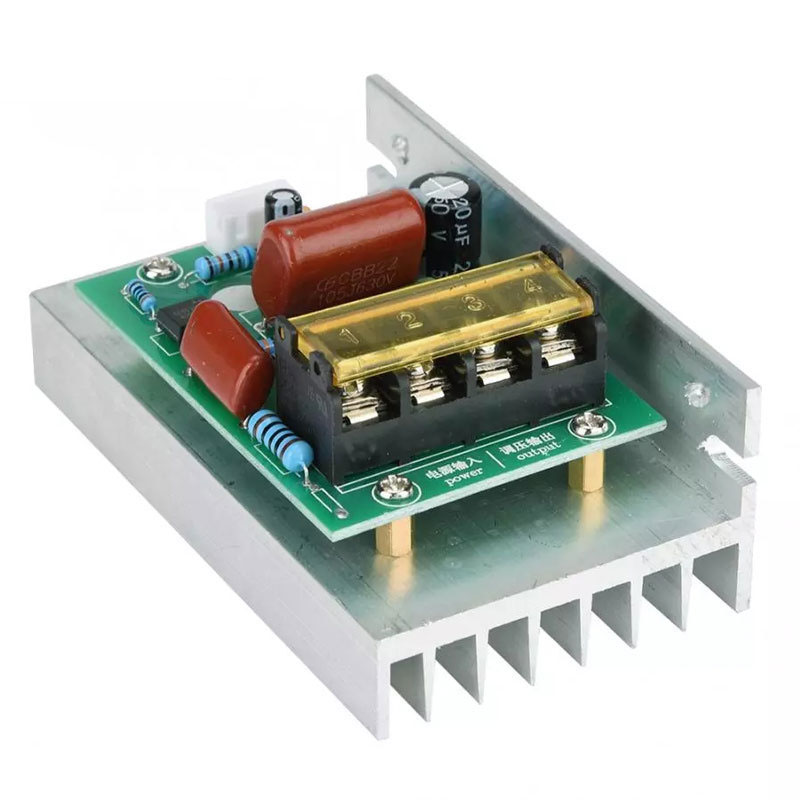

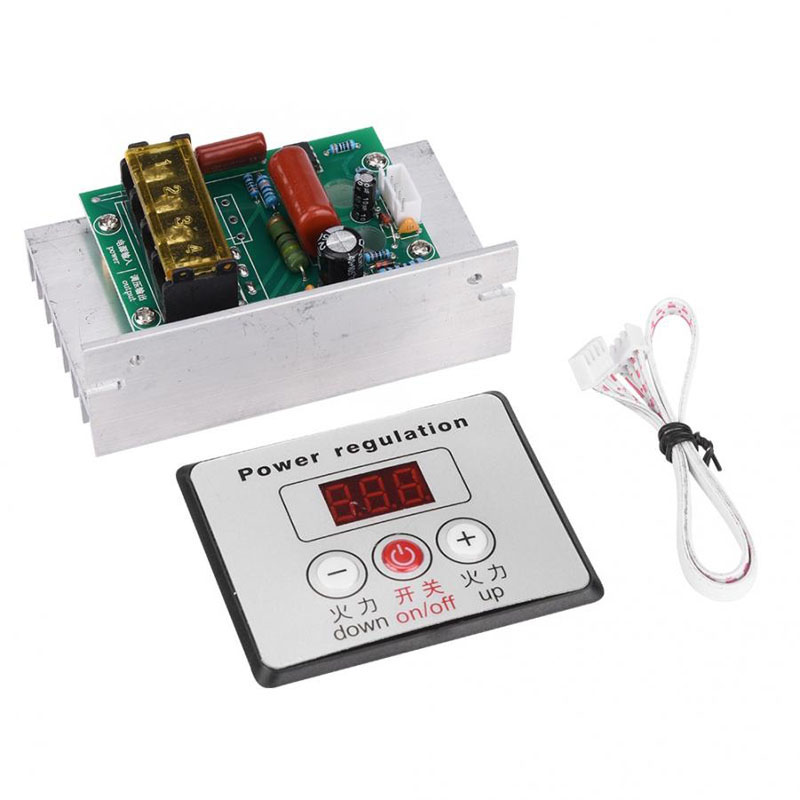

6000W SCR Voltage Regulator High Power Oven Thermostat Controller Voltage Regulator 220V 380VItem NO.: MK00121

6000W SCR Voltage Regulator Over Thermostat Controller

Product Information:

This product is not omnipotent. It can not replace the battery charger of electric vehicles, nor can it drive electrical appliances using switching power (such as 110v TV, stereo, refrigerator, air conditioner, Rice cooker with computer), nor can it drive Induction cooking and energy-saving lamps. Before shooting: This product is an AC input, AC output, and can only be reduced in voltage. It can only be adjusted when connected to a load. It is useless to connect a multimeter without load, not a transformer. Please read all the instructions on the product page before shooting! Thyristors are mainly used for resistive loads (such as electric filament incandescent lamps). Other types of loads should be confirmed by the buyer themselves, and our store does not guarantee them.

Technical Parameters:

● Operating voltage: AC 220V

● Maximum power: 6000W resistive load instantaneous limit power, recommended for long-term use at room temperature within 3000W

● Voltage regulation: The default gear with switch is (0,30.35.40... 100, starting from 30, 5 steps per gear). If other gears are needed, please contact customer service for customization. 0-100% (220 volts, 100 step regulation, non-linear)

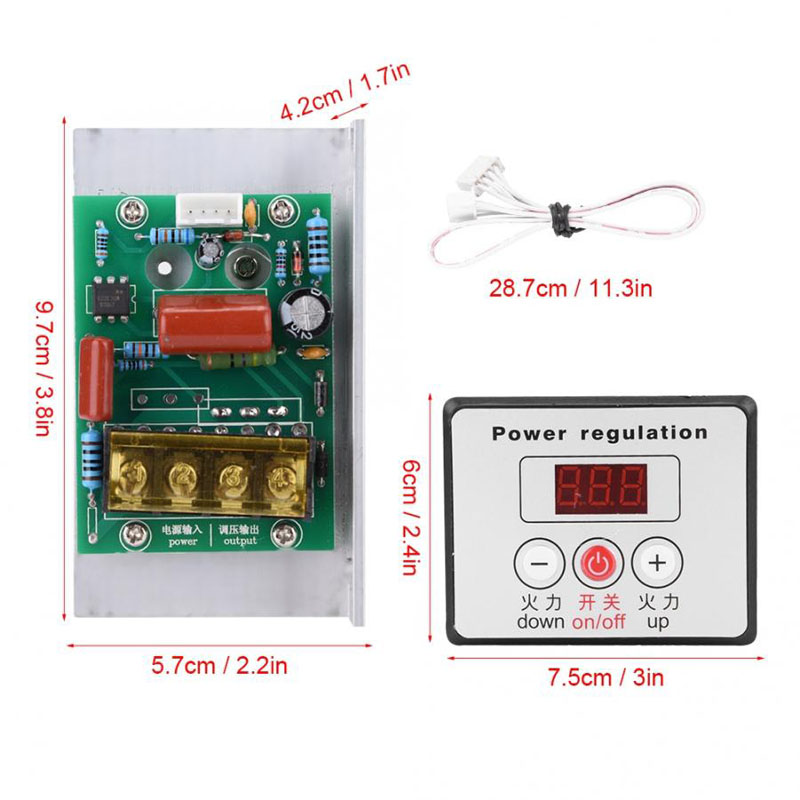

● Panel size: Outline 75 * 60mm, thickness about 10mm, and the distance between fixing screw holes on the panel is 60 * 45mm

Attention:

1. AC input, AC output, output voltage below (or equal to) input voltage; The voltage can only be adjusted when loaded; Especially suitable for ohmic loads (such as electric heating wires, incandescent bulbs).

2. It cannot replace the charger of electric bicycle, drive electrical equipment using switching power supply (such as 110V TV, speaker, refrigerator, air conditioner, rice cooker and computer), drive Induction cooking and energy-saving lamp.
