600W DC-DC Booster Step-up Module Solar Laptop Power Supply 10-60V to 12-80V High Efficiency High PowerItem NO.: MK01344
-
Customized Requirements
- Quantity
-
-
- Product Name: 600W DC-DC Booster Step-up Module Solar Laptop Power Supply 10-60V to 12-80V High Efficiency High Power
- Item NO.: MK01344
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: DC-DC , 600W , Booster Step-up Module , 10-60V to 12-80V
- Creation Time: 2024-05-13
600W DC-DC Step-up Module
Detailed Parameters:
● Input voltage: 12V-60V
● Input current: Maximum input current 15A
● Output voltage: 12V-80V continuously adjustable
● Output current: Maximum output current 10A (adjustable)
● Output power: effective power P=input voltage V * 10A
● Conversion efficiency: up to 95% (input voltage and current; output voltage and current affect conversion efficiency)
● Short circuit protection: fuses

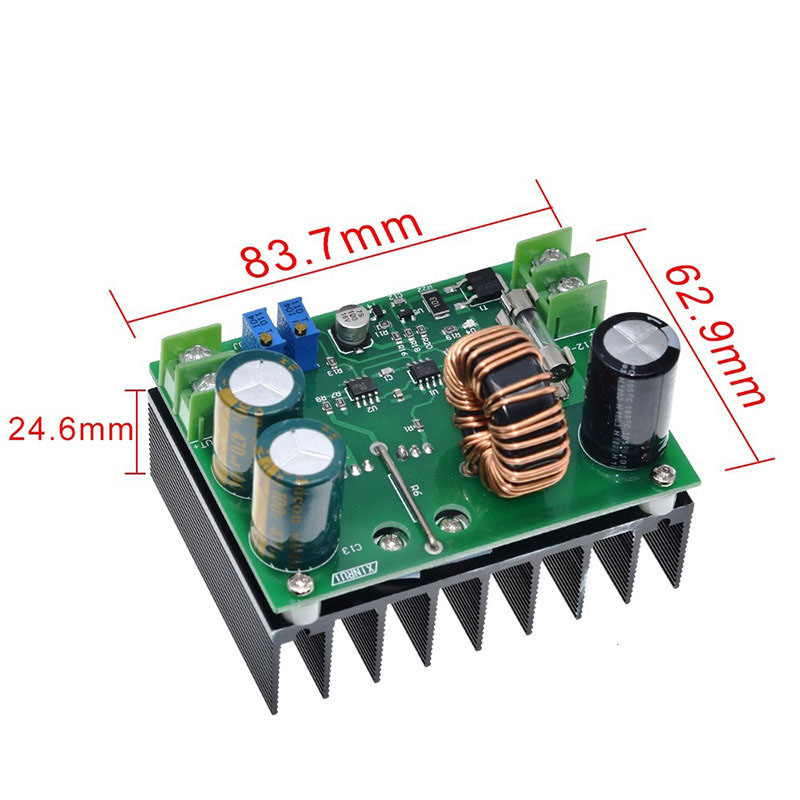

● Module size: 73 * 51mm
● Weight: 265g
Detailed Description:

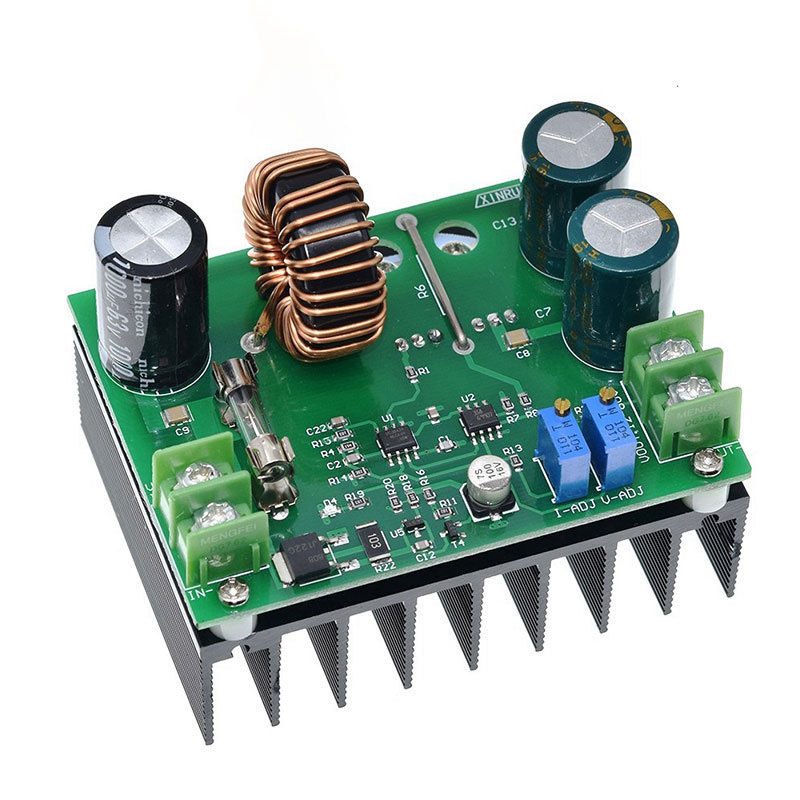

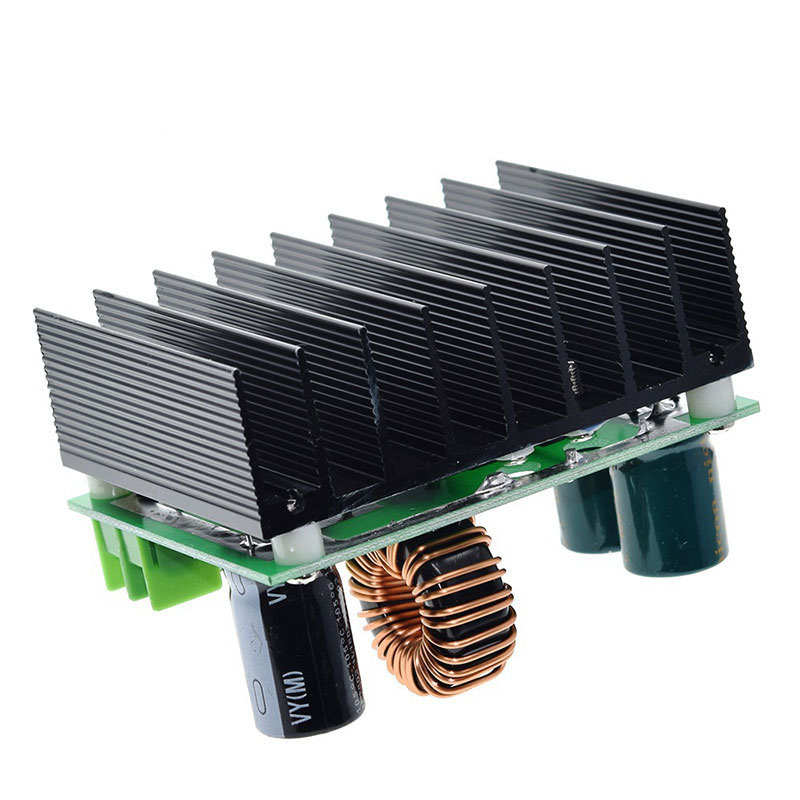

1. The product is made of solid materials and adopts a customized radiator. The specifications include a radiator base plate thickness of 5mm, a tooth height of 21mm, a length of 85mm, and a width of 63mm. The booster plate is fixed above the radiator, with a reasonable design and an integrated design of the radiator and booster plate, which is convenient for users to use directly. Long screws can be used to directly fix the radiator during use.

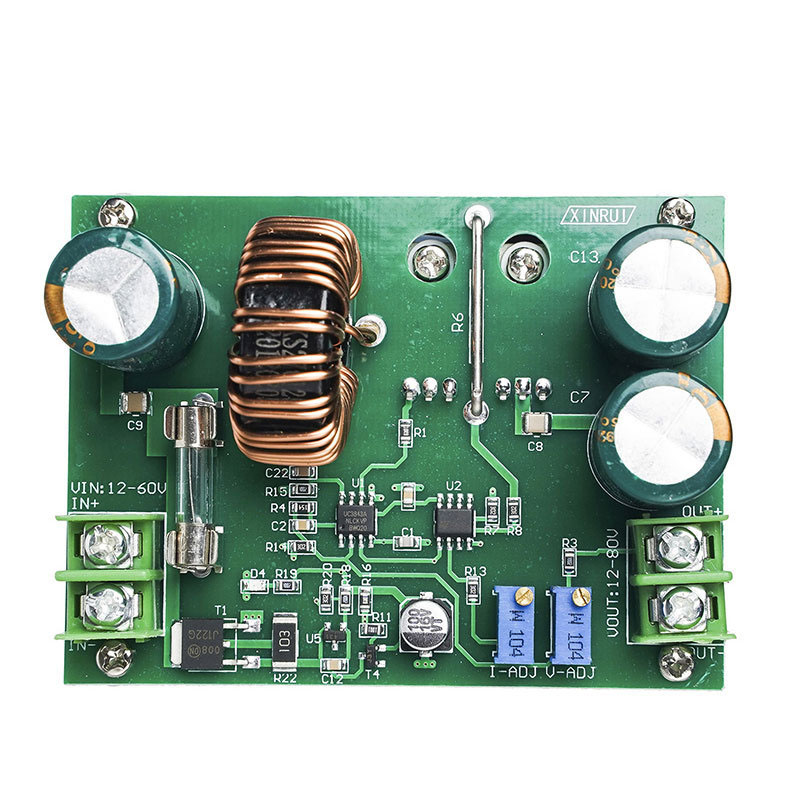

2. The inductance magnetic ring adopts 27mm iron silicon aluminum magnetic ring, 1mm double wound inductance, high-quality filter capacitor, one 1000uF63V electrolytic capacitor is input, and two 470uF100V electrolytic capacitor are output. The quality of the step-up output power supply is better, the on-board power switch, the power supply indicator light, and the potentiometer with voltage regulation and current regulation make the output more convenient. The output voltage and current can be adjusted at any time. The input and output terminals are 8500, Strong current capability ensures long-term reliable operation.
Application Scope:
1. DIY has an adjustable output on-board power supply, which only needs to be connected to a 12V power supply at the input. The output voltage can be freely and continuously adjusted (14V-80V), but the output voltage cannot be lower than the input voltage.
2. Universal car laptop power supply. Connect the input to a 12V power supply, and adjust the output to the voltage required for the laptop to work.
3. Booster charger, which can use a 12V power supply to charge batteries above 12V, such as a 24V battery, and the charging current can be adjusted.
4. To power electronic devices, as long as the voltage is adjusted to the required voltage and the current does not exceed the rated current, it can work normally.
5. System front-end power supply. When working on a certain project, the input voltage is 10V-18V, and the system board requires a power supply of around 24V with high power. If the power of a regular DC-DC module is too small, then this module will be your good choice. You can work directly on the computer without debugging, easily achieving high efficiency and high power boost.
