3.3V Power Module AMS1117 3.3V Power Module Without Welded Pins New Product 5VItem NO.: AMS1117notPIN
-
Customized Requirements
- Quantity
-
-
- Product Name: 3.3V Power Module AMS1117 3.3V Power Module Without Welded Pins New Product 5V
- Item NO.: AMS1117notPIN
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 5V , Power Module , 3.3V , AMS1117
- Creation Time: 2024-04-11

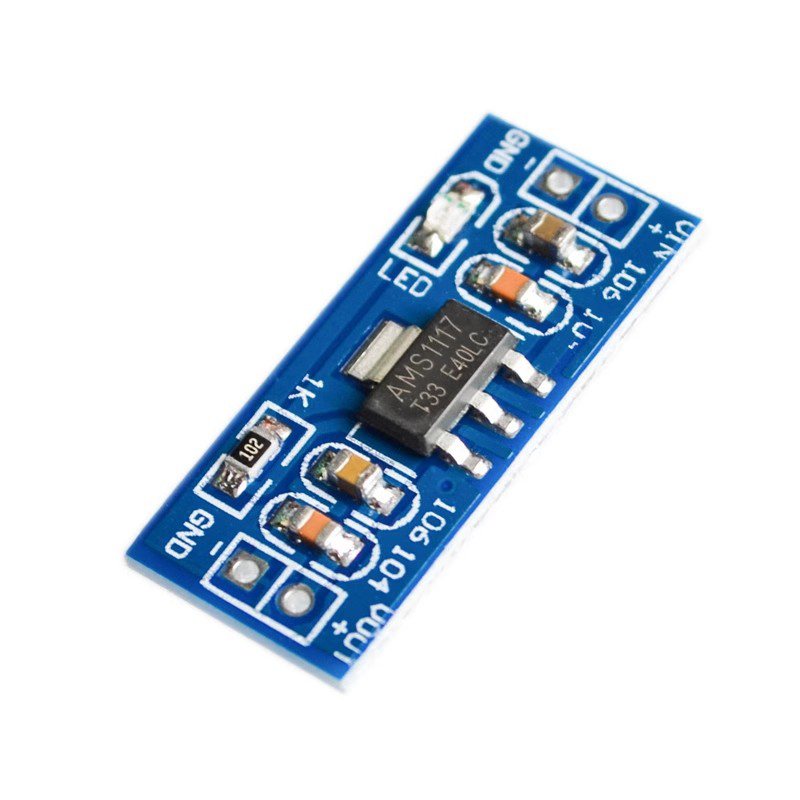

AMS1117 3.3V 5V Power Module
Design background:
As an electronics enthusiast, do you struggle to find a 3.3V power supply, or are you troubled by the insufficient number of expansion interfaces for the power supply? I believe that people who work in electronic design will often encounter such experiences. In order to facilitate everyone's search for a high safety performance, easy to use, and rich power expansion interface voltage regulator module, our store has designed a 5V to 3.3V power regulator module, which is suitable for electronic devices that require 3.3V power supply such as microcontroller project design. At the same time, it can provide convenience for power expansion in some electronic designs.
Product Description:
1 Input: DC 4.5V-7V (The input voltage must be more than 1V higher than the output voltage.)
2 output: 3.3V or 5V, 800mA (load current cannot exceed 800ma)
3 double panel design, beautiful and generous layout;
4. Specially designed 2 pin fixing holes, which can be directly fixed on the hole plate for expansion experiments;
5 inputs and outputs use 2P single row pins for easy connection;

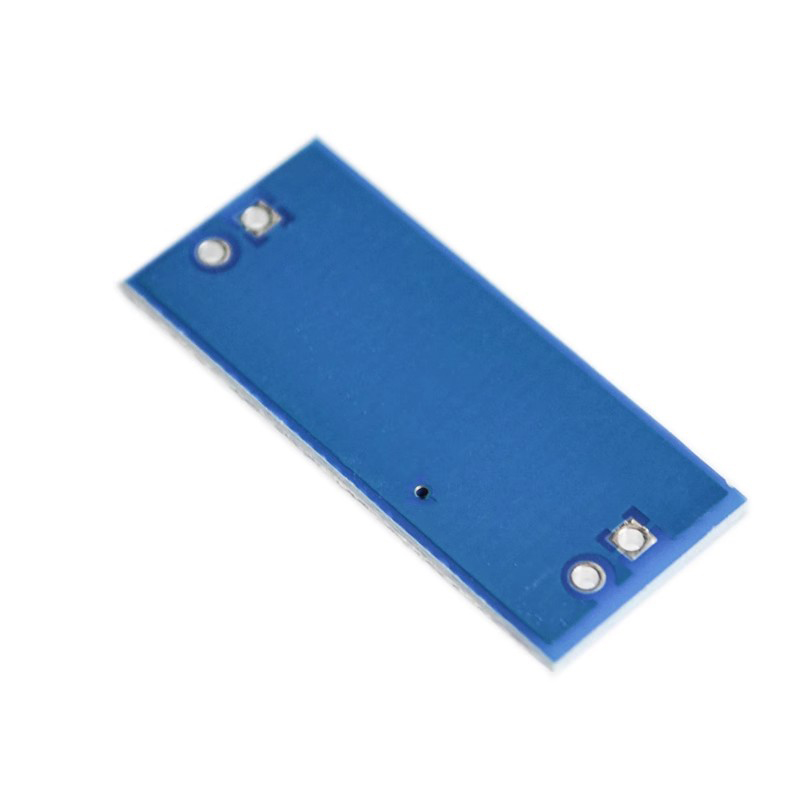

6 PCB board size: 2.5cm * 1.1cm
7 with power indicator light (red)
81 pieces weighing approximately 1.6g
Shipping list:
One AMS117-3.3V or AMS117-5V power module (test passed)
