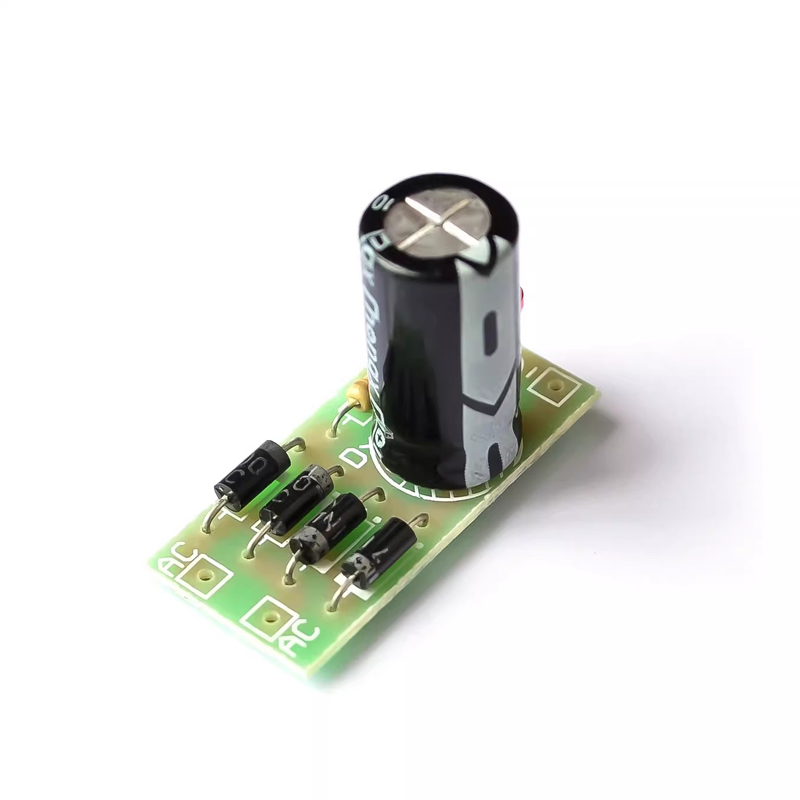

AC to DC Power Conversion Module 1N4007 Full Bridge Rectifier Filter 12V 1A AC to DC

AC to DC Power Conversion Module 1N4007 Full Bridge Rectifier Filter 12V 1A AC to DCItem NO.: ACDC1N4007

US$ 2.89
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
AC to DC Power Conversion Module 1N4007 Full Bridge Rectifier Filter 12V 1A AC to DC
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • AC to DC Power Conversion Module



    Product Description:



    Input AC voltage [6V-16V] (capacitance 50V470UF)

    Input and output current [1A]

    Usage frequency range [50-60Hz]

    Wire length (9 centimeters)

    PCB size mm [28 * 13 * 1.2]

    Rectification output voltage [output=input x1.414] [For example, if input 12V AC, then output 12x1.414=16.968V, this is the calculated no-load voltage, only for reference, and there may be deviation in practice]



    This treasure is a simplified rectification and filtering module widely used in the rectification and filtering of small transformer outputs, mainly for appliances with low power requirements. The power module is designed to be small and can be placed in smaller electrical boxes. The circuit board is equipped with a power indicator light, making it easy to intuitively know the status of the power supply when connecting to it.
