QC Fast Charge Decoy USB Fast Charge Deception 9V 12V Power Bank Aging Detection Board Support QC2.0 QC3.0

QC Fast Charge Decoy USB Fast Charge Deception 9V 12V Power Bank Aging Detection Board Support QC2.0 QC3.0Item NO.: QCUSB

US$ 2.85
Model
9V
12V
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
QC Fast Charge Decoy USB Fast Charge Deception 9V 12V Power Bank Aging Detection Board Support QC2.0 QC3.0
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • QC Fast Charging Decoy QC2.0 QC3.0



    Module parameters:



    ● Input port: USB A-port input

    Output voltage: 9V, 12V

    ● Support protocol: QC2.0 QC3.0

    ● Input current: determined by the fast charging head



    Module Description:



    Support 9V and 12V deception. Supports QC2.0 and QC3.0. Support customization! Customizable shapes, sizes, and interfaces according to customer requirements!!!

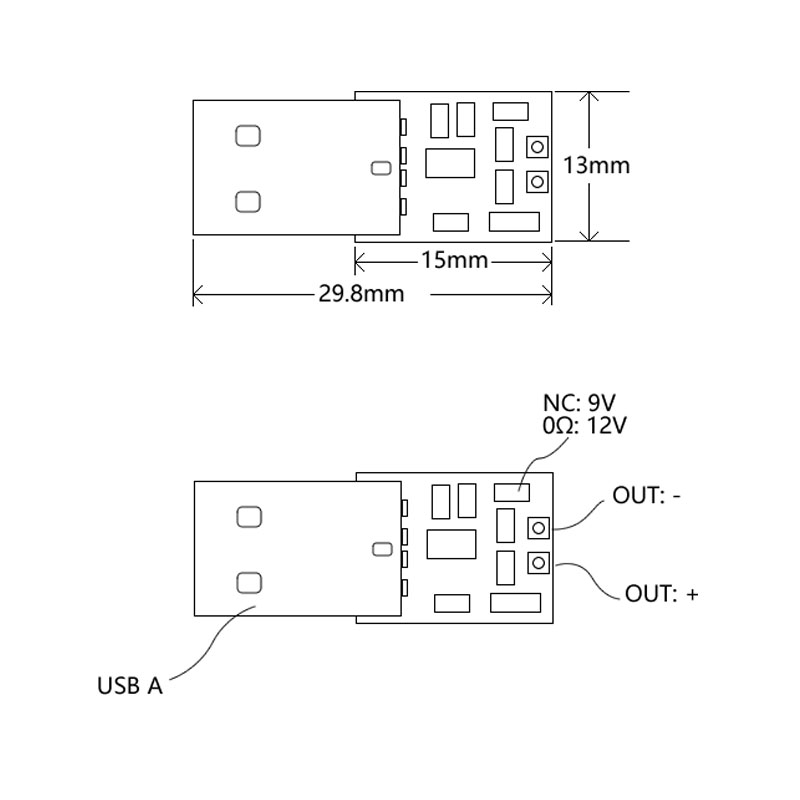

    The deception output voltage can be either 9V or 12V R2 NC induces an output voltage of 9V, while R2 soldering 0R resistor induces an output voltage of 12V. Please choose the desired voltage when placing an order.

    The output copper wire width exceeds 3mm, which can be soldered using standard 2.54 terminals or directly soldered for easy use.

    Note: This product is only suitable for mobile power supplies or chargers with QC function. A regular 5V mobile power supply or charging head can only output 5V!!!



    Question: How much current is lured out?

    Answer: The scammer is only responsible for luring voltage from the mobile power supply or QC fast charging head, and the current size is determined by the output power of the mobile power supply or fast charging head and the size of the load. Due to the use of a USB A port in the lurer module, the interface can usually withstand a current of no more than 2A-3A, so the maximum current cannot exceed.



    Question: The voltage deceived is not an accurate voltage of 9.0000V or 12.0000V

    Answer: A scammer is not a precision power source, it does not output any power on its own, and the voltage it induces is determined by a mobile power source or fast charging head.
