- Product Name: AGS10 TVOC Air Quality Ethanol Gas Sensor I2C MEMS Replaces AGS02MA
- Item NO.: AGS10 Module
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Gas Sensor , AGS10 , Air Quality
- Creation Time: 2024-05-08

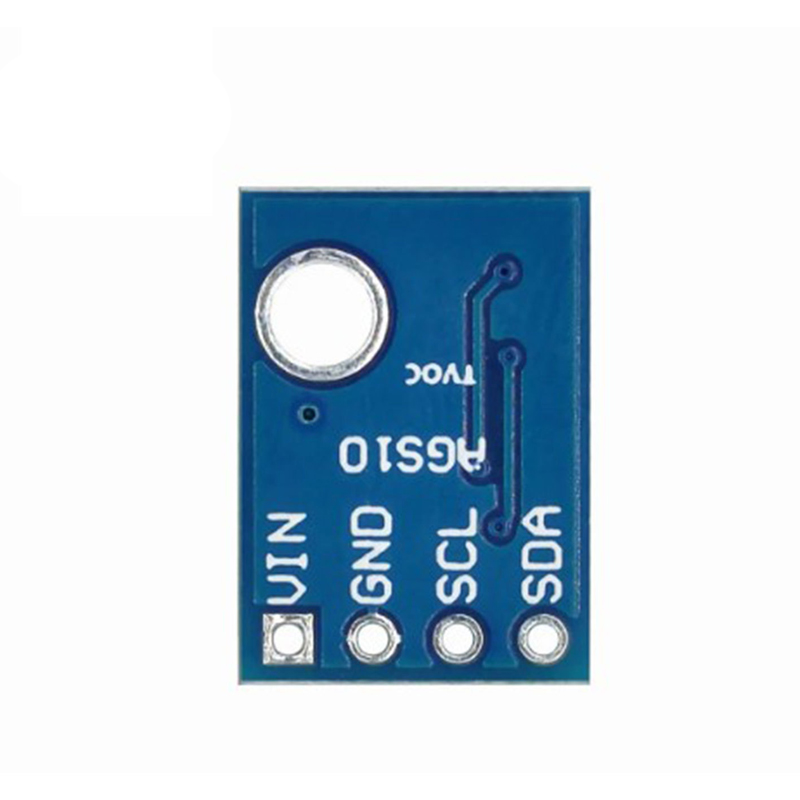

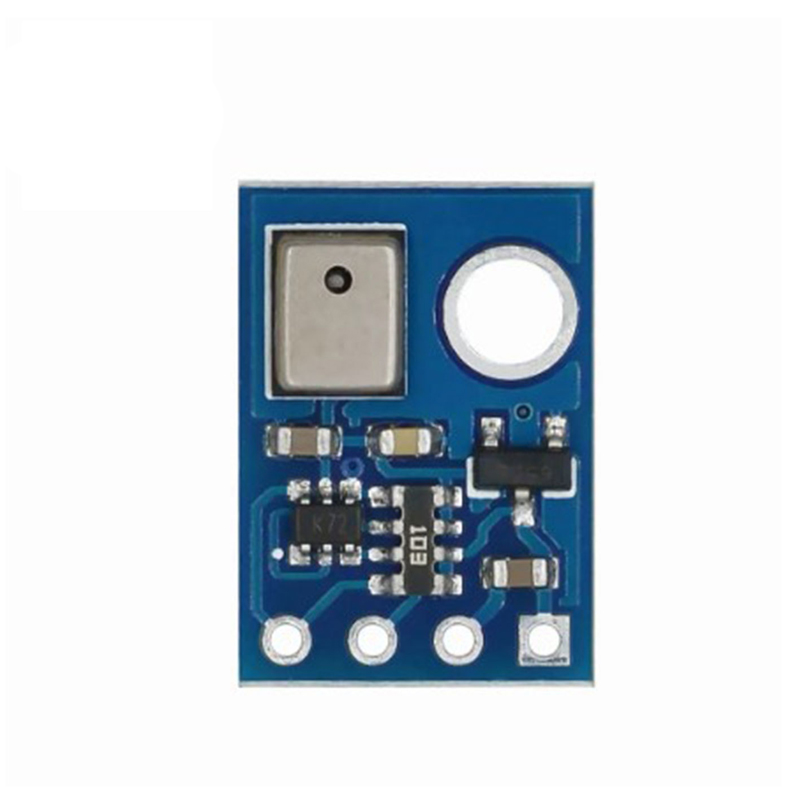

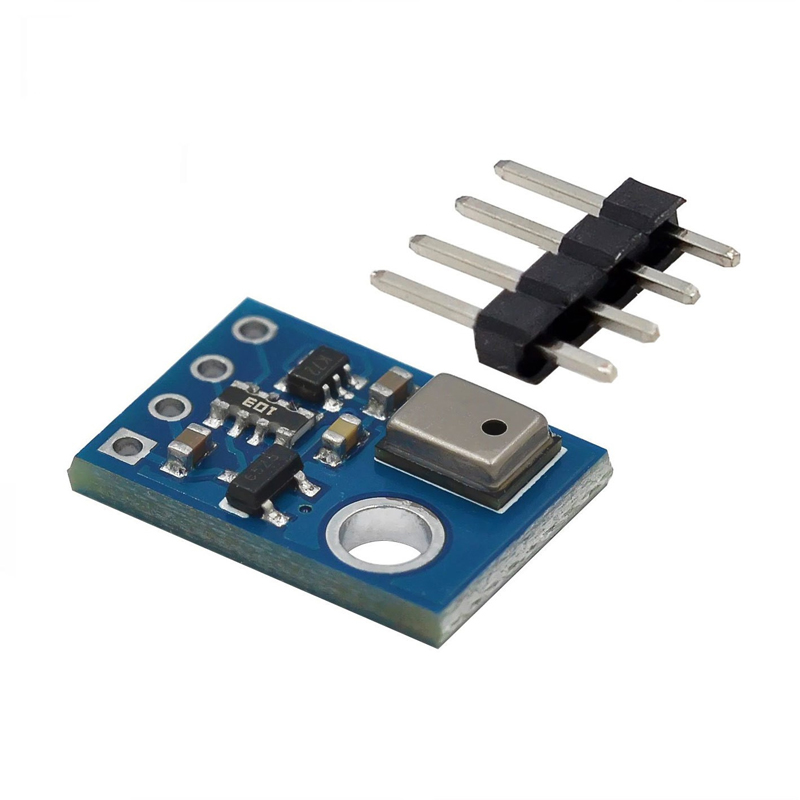

AGS10 TVOC Air Quality Gas Sensor
Product Introduction:
AGS10 is a MEMS TVOC sensor that uses digital I2C signal output. Dedicated digital module acquisition technology and gas sensing technology are configured to ensure high reliability and excellent long-term stability of the product, as well as low power consumption, high sensitivity, fast response, low cost, and simple driving circuit.
Product Characteristics:
● Working voltage: 3.0-6.0 V
● Typical power: 75mW
● Sampling period: ≥ 2s
● Interface speed: I2C slave mode (≤ 15kHz)
● Warm-up time: ≥ 120s
● Working temperature: 0~50 ℃
● Working humidity: 0-95% RH
● Service life:>5 years (25 ℃, in clean air)
● Output unit: ppb
● Measurement range: 0 to 99999 ppb
● Typical accuracy (25 ℃/50% RH): 25% reading
● Standard test gas: ethanol
● Module size: 15 * 10.6mm
