SHT30 Digital Temperature and Humidity Sensor I2C Communication Probe Sensor Module with HousingItem NO.: SHT30
-
Customized Requirements
- Quantity
-
-
- Product Name: SHT30 Digital Temperature and Humidity Sensor I2C Communication Probe Sensor Module with Housing
- Item NO.: SHT30
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Digital Temperature And Humidity Sensor , SHT30 , Probe Sensor Module
- Creation Time: 2024-05-10

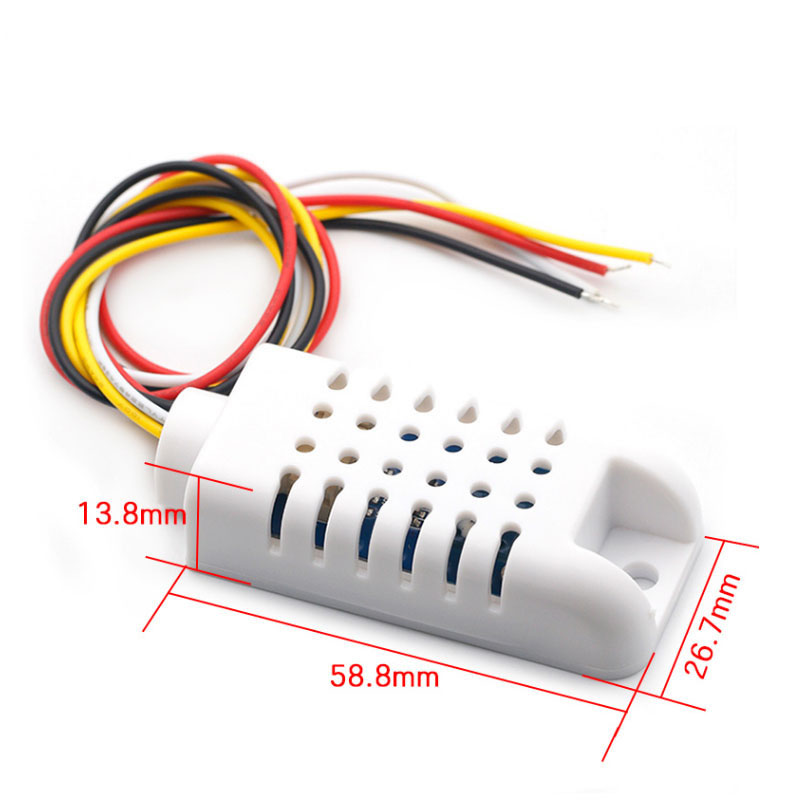

SHT30 Digital Temperature and Humidity Sensor
Product Introduction:
The SHT30 digital temperature and humidity sensor uses the SHT3 chip. The new SHT3x digital humidity sensor series takes sensor technology to a new level. As the successor of the SHT2x series, it has been determined to set the next industry standard for a humidity sensor. The SHT3x humidity sensor series includes the low-cost version of the SHT30 humidity sensor, the standard version of the SHT31 humidity sensor, and the high-end version of the SHT35 humidity sensor.
Product Features:
SHT3x is based on a newly optimized CMOS chip, which can improve reliability and accuracy indicators. SHT3x provides a series of new features, such as enhanced signal processing, two unique and user selectable I2C addresses, programmable alarm modes for humidity and temperature limits, and communication speeds up to 1MHz.
Product Parameters:
● Product model: I0T-TH02 SHT30
● Working voltage: 2.15~5.5V
● Output signal: IIC digital signal
● Humidity measurement range: 0-100% RH
● Temperature measurement range: -40~125 ℃ (please use in an environment of -40~80 ℃ due to the high temperature resistance of the shell and wire)
● Accuracy: ± 2% RH ± 0.2 ℃
● IIC address: 0X44
● Product shell material: ABS
