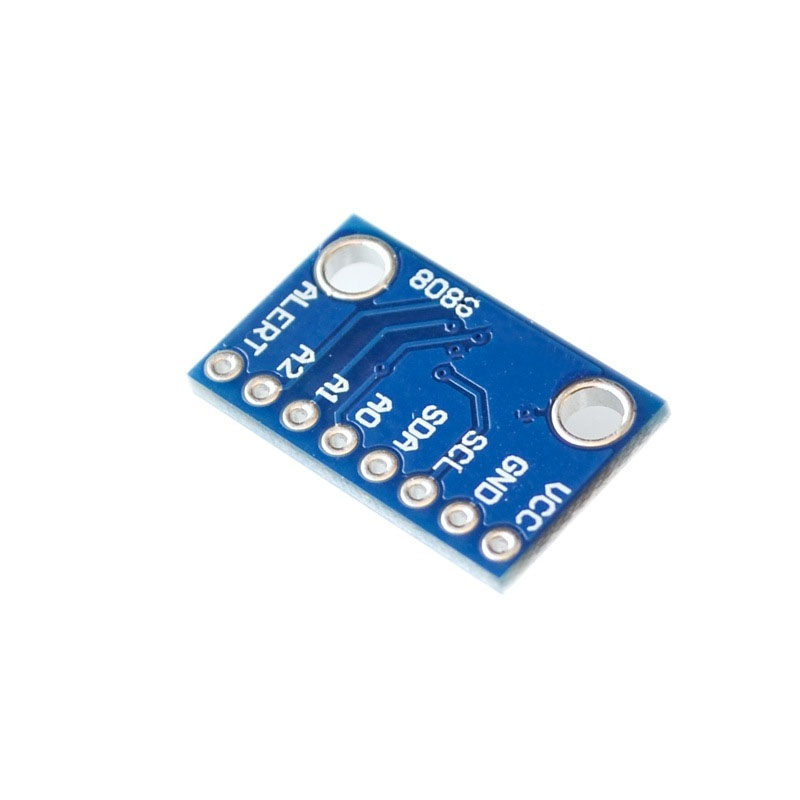

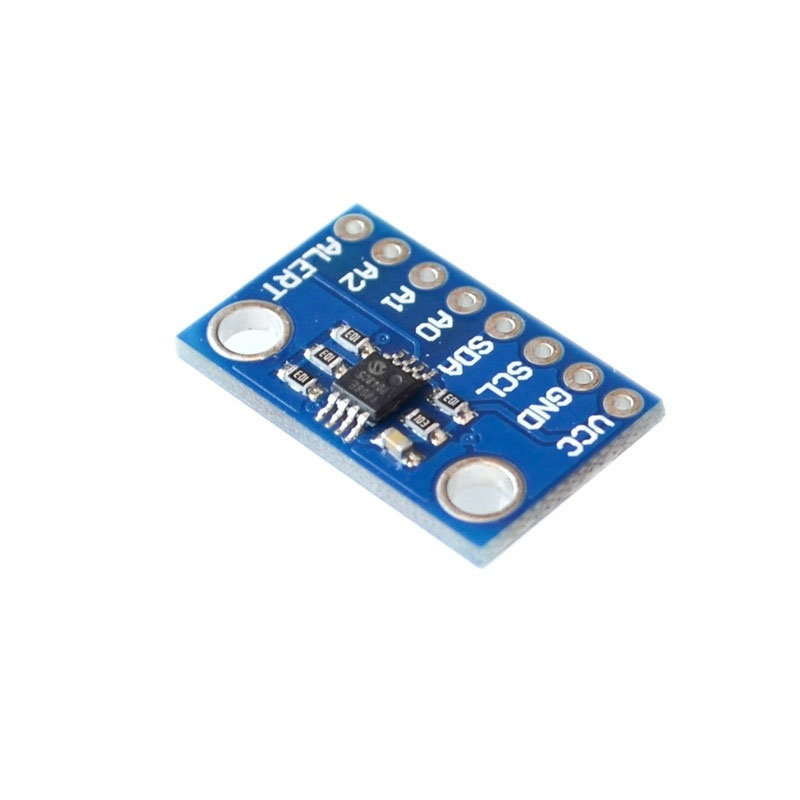

MCP9808 High-Precision I2C Temperature Sensor With A Resolution Of ±0.25°C/0.0625°CItem NO.: MCP9808

MCP9808 High-Precision I2C Temperature Sensor

Description:

The MCP9808 digital temperature sensor converts temperatures between -20 ° C and+100 ° C into digital words with an accuracy of ± 0.25 ° C/± 0.5 ° C (typical/maximum). MCP9808 is equipped with user programmable registers, providing flexibility for temperature sensing applications. These registers allow users to choose settings such as shutdown or low-power mode, as well as specifications for temperature alarm window limits and critical output limits. When the temperature changes exceed the specified boundary limit, MCP9808 outputs an alarm signal. Users can choose to set the polarity of the alarm output signal to a low level effective comparator or low level effective comparator output for thermostat operation, or set it to a temperature alarm interrupt output for microprocessor based systems. The alarm output can only be configured as a critical temperature output. This sensor has an industry standard 400 kHz, 2-wire, smbus/i2c compatible serial interface, allowing up to 8 or 16 sensors to be controlled using a single serial bus (see Table 3-2 for available address codes). These functions make MCP9808 very suitable for complex multi zone temperature monitoring applications.

Features:

● Accuracy: - ± 0.25 (typical value) at 40 ° C to+125 ° C - ± 0.5 ° C (maximum value) at 20 ° C to 100 ° C ± 1 ° C (maximum value) within the range of 40 ° C to+125 ° C

● User selectable measurement resolutions: -+0.5 ° C,+0.25 ° C,+0.125 ° C,+0.0625 ° C.

● User programmable temperature limit: - Temperature window limit. User programmable temperature alarm output.

● Operating voltage range: 2.7V to 5.5V.

● Operating current: 200 μ A (typical value).

● Switching current: 0.1 microamps (typical value).

● Available packaging: 2x3 DFN-8, MSOP-8

Typical Applications:

● General purpose

● Industrial applications

● Industrial refrigerators and electric refrigerators

● Food processing

● PC and servers

● PC peripherals

● consumer electronics

● Handheld/portable devices
