Bluetooth 4.0 Module Main Control CSR8635 Bluetooth Speaker Power Amplifier DIY Bluetooth Stereo Audio ModuleItem NO.: F-3288-35
-
Customized Requirements
- Quantity
-
-
- Product Name: Bluetooth 4.0 Module Main Control CSR8635 Bluetooth Speaker Power Amplifier DIY Bluetooth Stereo Audio Module
- Item NO.: F-3288-35
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: DIY , CSR8635 , Bluetooth 4.0 Module , Bluetooth Speaker Power Amplifier , Bluetooth Stereo Audio Module
- Creation Time: 2024-05-03

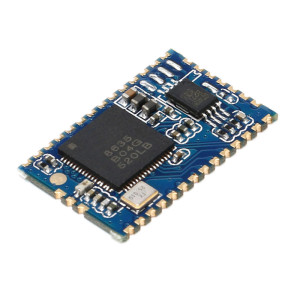

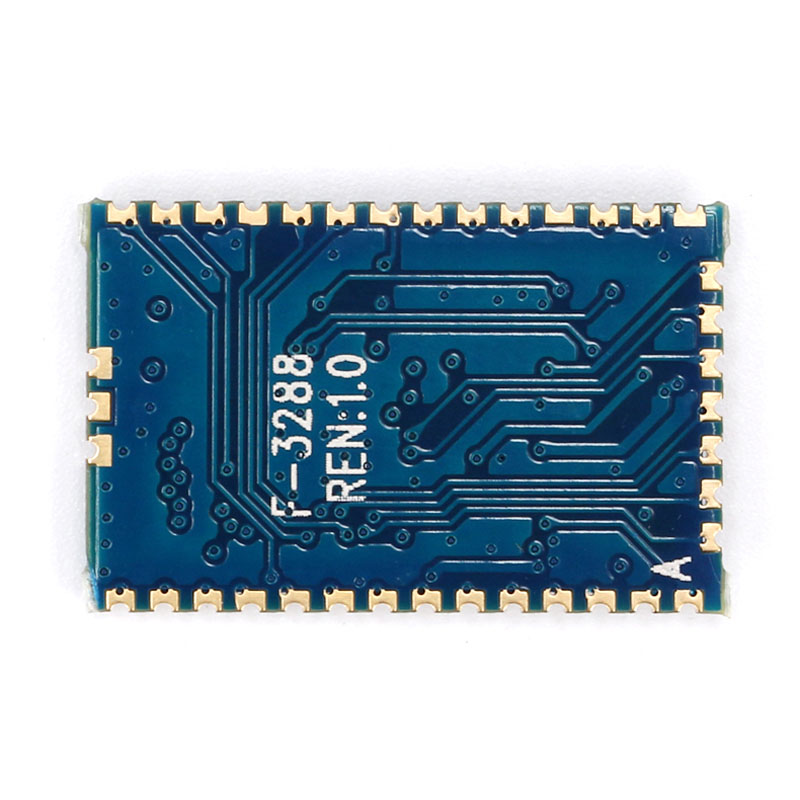

Bluetooth 4.0 Speaker Power Amplifier
Product Introduction:
The module uses the CSR8635 chip, which provides the module with high-quality sound quality and compatibility, and the overall performance is more optimized. It is a low-cost and high-efficiency stereo wireless transmission scheme. Bluetooth module adopts drive-free mode. Customers can quickly realize wireless transmission of music and enjoy wireless music by connecting the module to the product.
Product Parameters:
● Model: F-3288-35
● Bluetooth specification: Bluetooth V4.0
● Modulation mode: GFSK, π/4 DQPSK, 8DPSK
● Power supply voltage: 3.3~4.2V
● Bluetooth protocol support: HFP V1.6, HSP V1.2, A2DP V1.2, AVRCP V1.4, DI V1.3
● Working current: ≤ 30mA
● Standby current: < 50 μ A
● Temperature range: - 40 ℃~+80 ℃
● Wireless transmission range: greater than 10M
● Transmission power: support CLASS1/CLASS2/CLASS3 with maximum adjustable 8dBm
● Sensitivity: - 80dBm < 0.1% BER
● Frequency range: 2.4GHz~2.480GHz
● External interface: PIO, SPI, Audio in/out, USB
● Audio performance: support AAC, MP3, SBC, stereo
● Audio signal to noise ratio: ≥ 75dB
● Distortion: ≤ 0.1%
● Module size: 21.9 * 14.1 * 1.8mm
