TPA3110 Bluetooth 5.0 Digital Power Amplifier Board 2*15W Power Stereo Class D Audio Amplifier ModuleItem NO.: TPA3110 Bluetooth 5.0
-
Customized Requirements
- Quantity
-
-
- Product Name: TPA3110 Bluetooth 5.0 Digital Power Amplifier Board 2*15W Power Stereo Class D Audio Amplifier Module
- Item NO.: TPA3110 Bluetooth 5.0
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: Bluetooth 5.0 , Stereo , Class D , Audio Amplifier Module , Digital Power Amplifier Board , 2*15W , TPA3110
- Creation Time: 2024-05-02

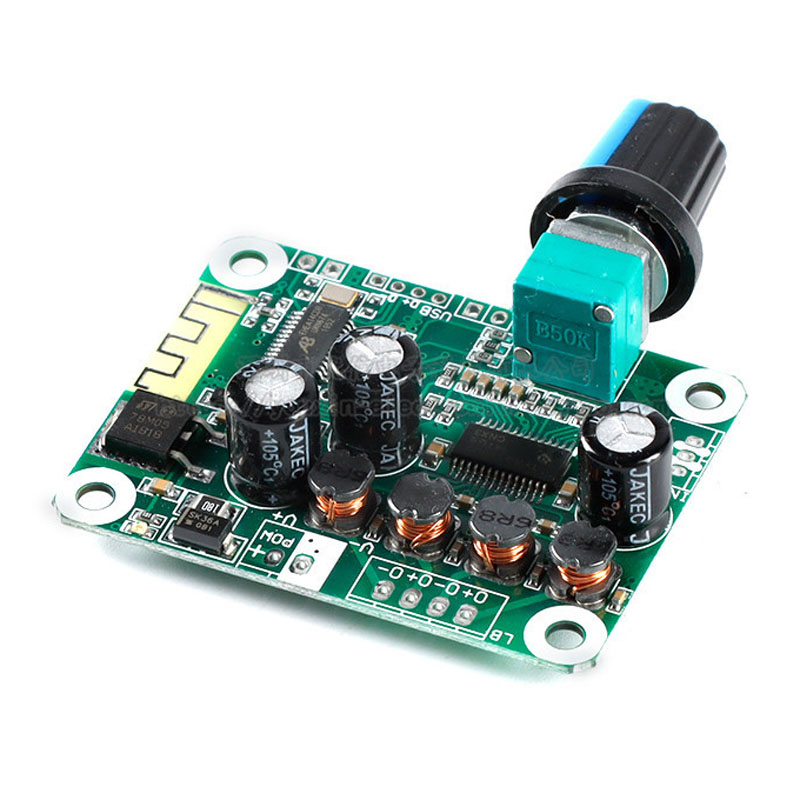

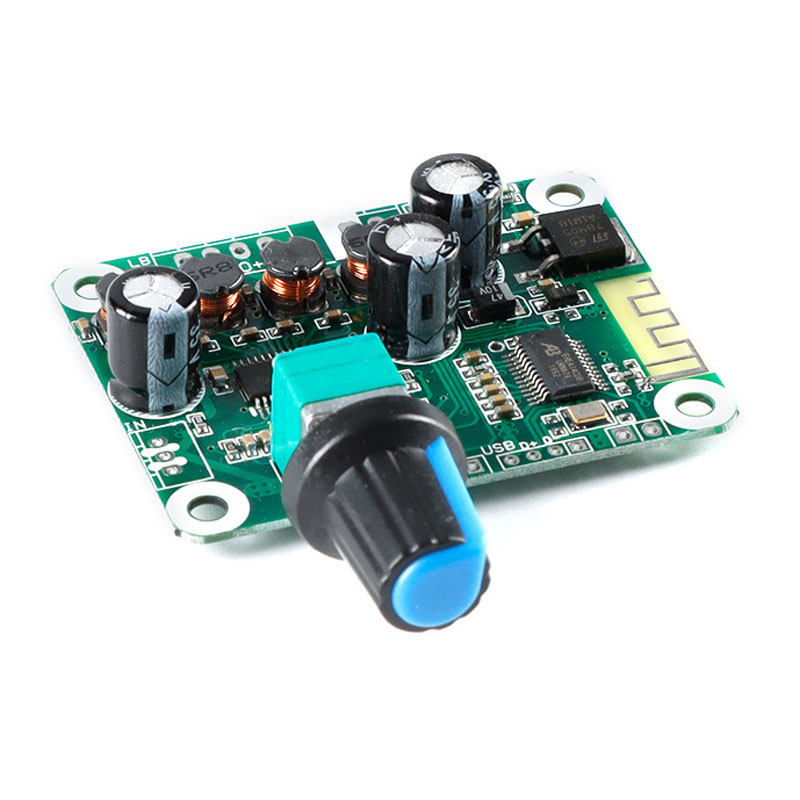

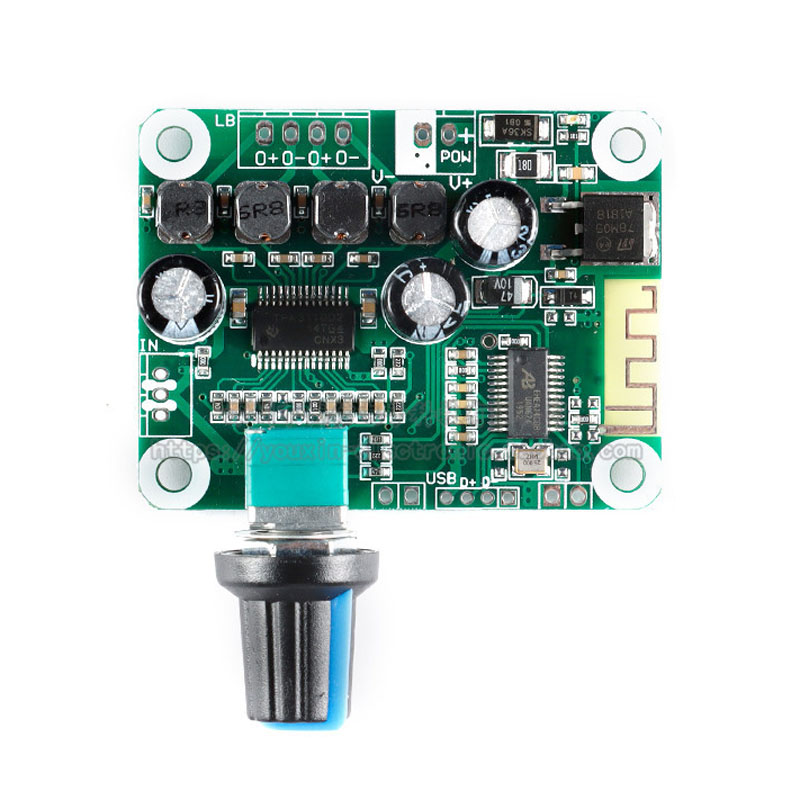

TPA3110 Bluetooth 5.0 Digital Power Amplifier Board
Product Introduction:
This board adopts the typical circuit of TPA3110, and adopts single power supply with anti-reverse connection. It is convenient to use universal adapter and switching power supply, or ordinary linear transformer plus rectifier filter board to supply power for it. Most of the resistance-capacitance devices adopt standardized patch technology, which is simple and stable. With integrated design of built-in Bluetooth audio reception and built-in 5V voltage stabilizing circuit, it can easily DIY Bluetooth speakers. The output power is 15W X 2 (@ 16V), and the board can be connected with 8 Ω and 4 Ω speakers.

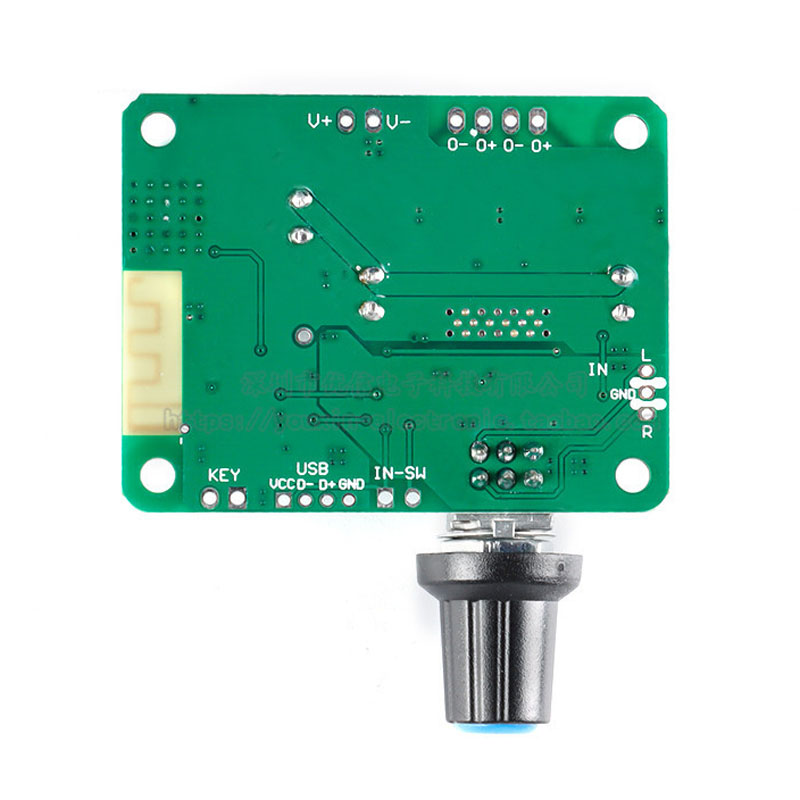

Note: When external audio input is required, the two pads of "external audio switch" need to be short-circuited.
Product Parameters:
● Power supply voltage: 10-25VDC
● Power supply current: 2A or above is recommended
● Output power: 15W X 2 (@ 16V or above)

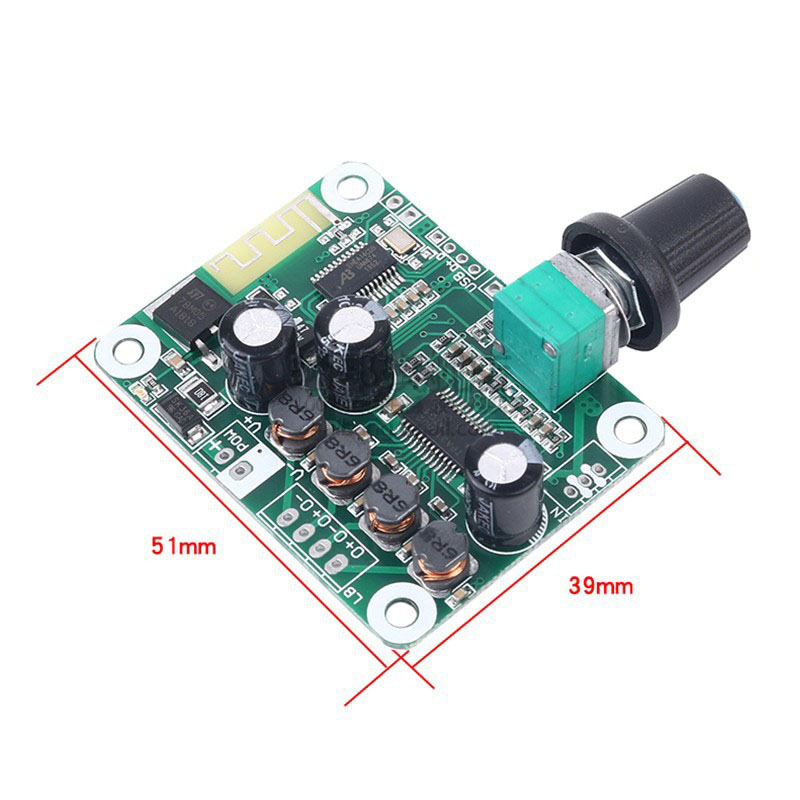

● Size: 51MM long x 39MM wide
Power Supply Description:
When using a universal adapter and switching power supply, it can be directly connected to the positive and negative poles of the power supply. If linear transformer is used for power supply, the recommended AC voltage is 9-12V (maximum AC 15V), and the power is 20-30W linear transformer. Rectifier filter board is required
