- Product Name: TPA3116 Digital Power Amplifier Board Mono BTL Output 100w
- Item NO.: TPA3116 BTL100w
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: Digital Power Amplifier Board , Mono , 100W , TPA3116
- Creation Time: 2024-05-03

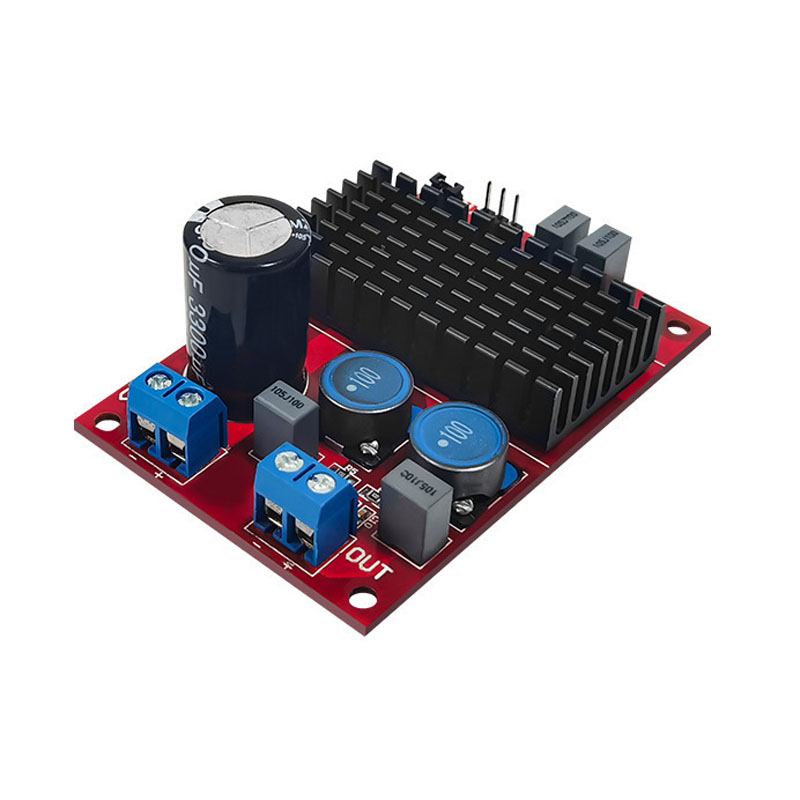

TPA3116 Digital Power Amplifier Board
Product Introduction:
Small size design, BTL output, maximum output power 100w, can drive 2 Ω horn, can balance (differential) input, and the chip with heat sink works more stably.
Latest revision: optimized circuit wiring and added mute control terminal.
Product Parameters:

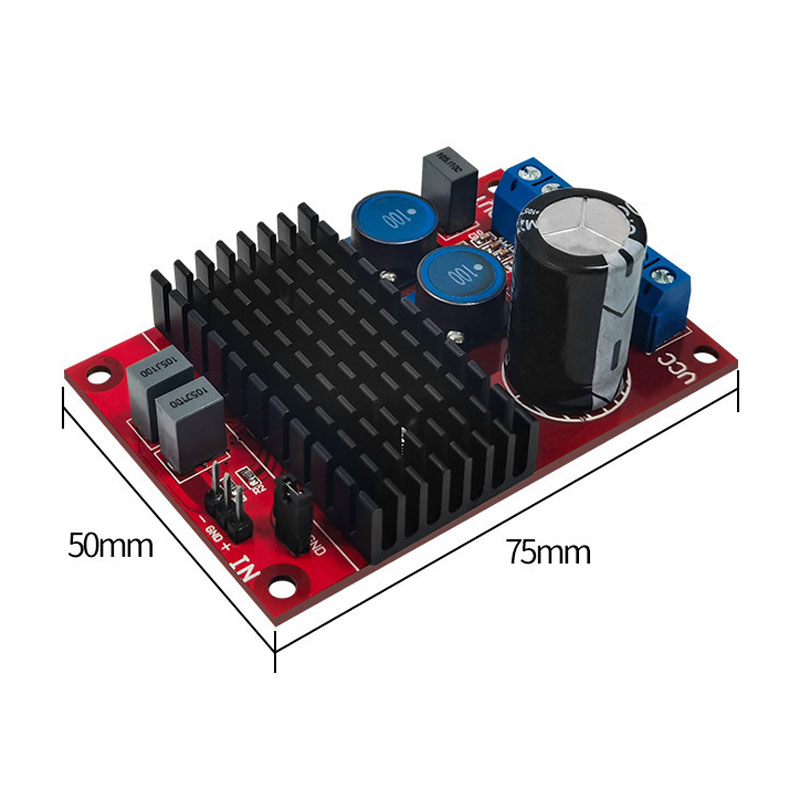

● Board size: 75mm * 50mm
● Working voltage: DC 12v-24V
● Maximum output power: 100w (connected to 2-ohm horn)
● Overall height of board: 25mm

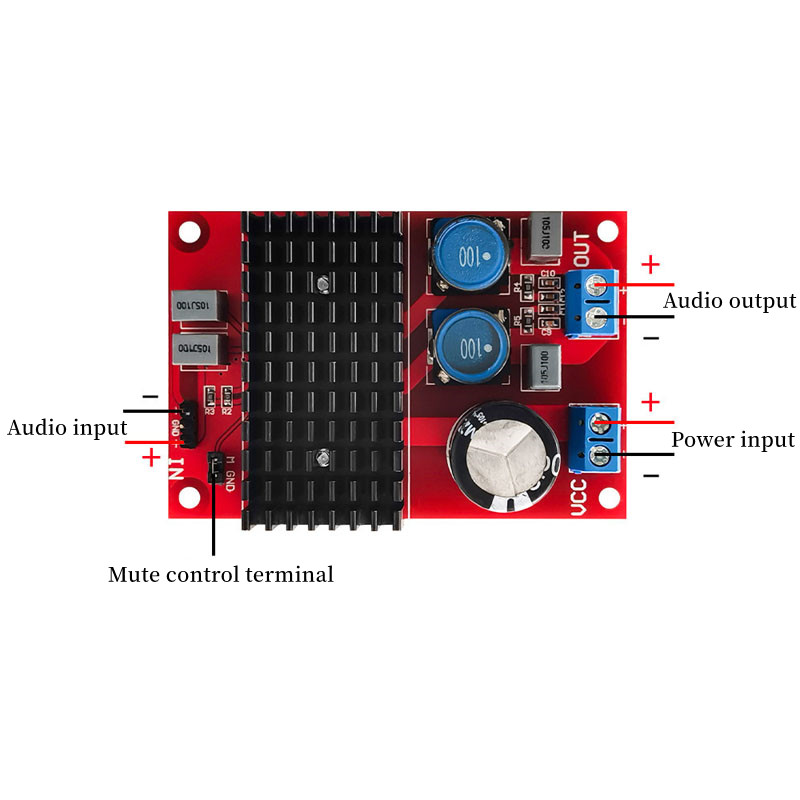

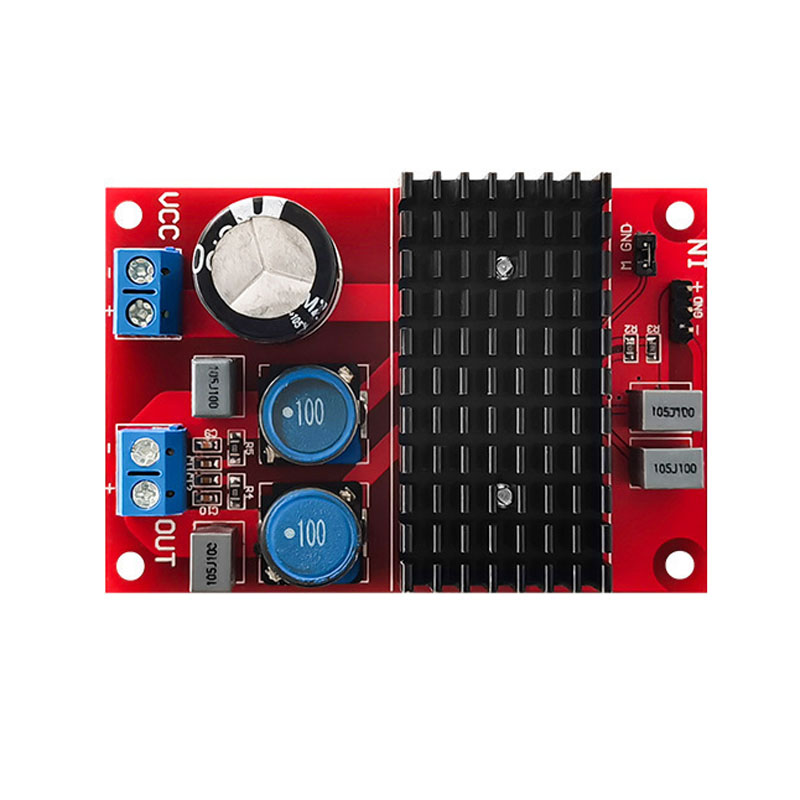

Mute Control Description:
M is the mute control terminal. High level mute (voltage 3.3v-12v), low level work (connection with GND is the working state), there is a distribution short cap, which is the working state by default when shipping. When mute control is required, remove the short cap, and the external control is OK.
The Following Two Signal Input Modes Can Be Selected As Required:
1: Signal balance input (differential): signal+, signal -, GND (ground).
2: Unbalanced input (single end): the - end is shorted to GND (ground), and the signal is input from the+end.
Note: When unbalanced input, be sure to connect "-" with GND in a short circuit, otherwise the sound is abnormal and the chip may be burned seriously.
