Bluetooth 4.0 Stereo Audio Receiver Module/Wireless Speaker Power Amplifier Conversion DIY Module KRC-86BItem NO.: KRC-86B
-
Customized Requirements
- Quantity
-
-
- Product Name: Bluetooth 4.0 Stereo Audio Receiver Module/Wireless Speaker Power Amplifier Conversion DIY Module KRC-86B
- Item NO.: KRC-86B
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: Bluetooth 4.0 Stereo Audio Receiver Module , Wireless Speaker Power Amplifier Conversion , KRC-86B
- Creation Time: 2024-04-30

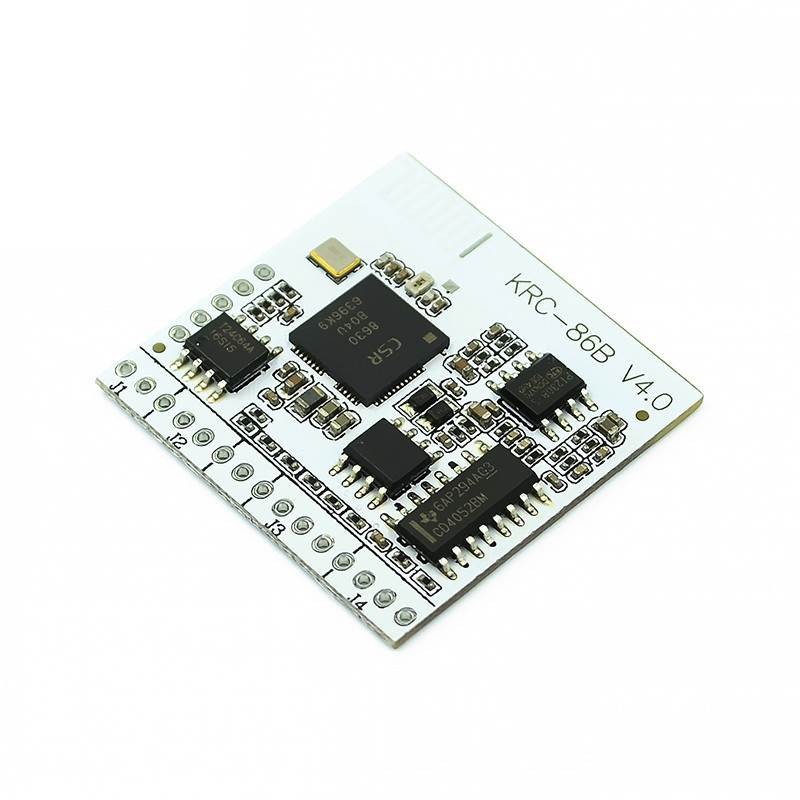

Bluetooth 4.0 Stereo Audio Receiver Module
Module Parameters
1. CSR 8630 Bluetooth chip, Bluetooth version V4.0+EDR
2. Receiving distance ≥ 10m

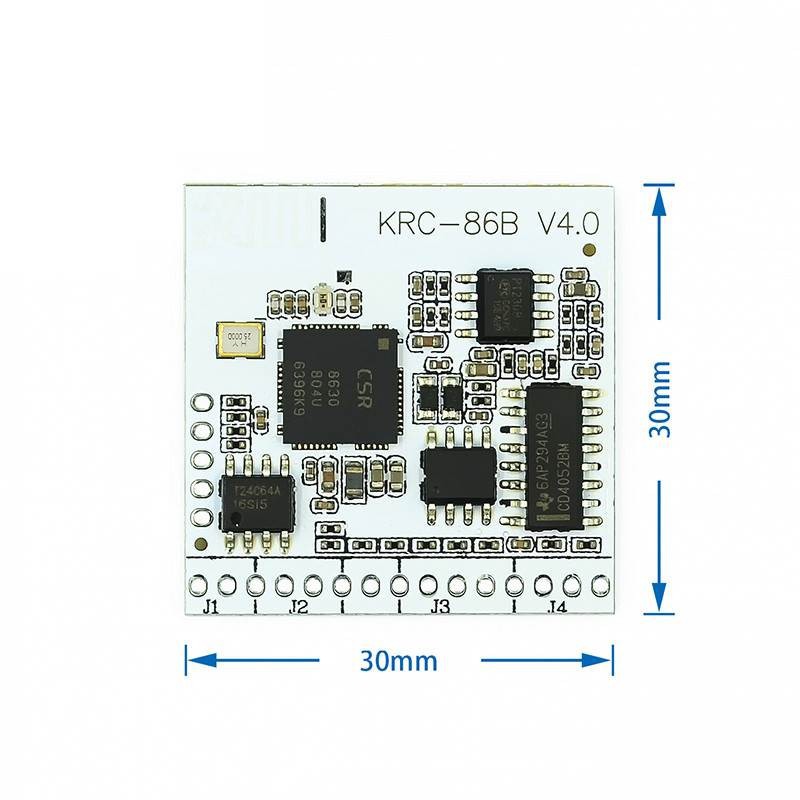

3. Small size (30mm * 30mm)
4. Power supply:+5V
5. One external stereo audio source input
6. A Bluetooth status indicator
7. Three key inputs (volume+/previous track, volume -/next track, playback pause)
8. Pairing password can be set
Module Function Description:
1. The module is powered on automatically, the mode is AUX input, and the LED flashes
2. When the Bluetooth audio device is connected, the mode automatically changes to Bluetooth mode, and the LED stays on
3. EN pin, connected to output high level (+3.3V)
