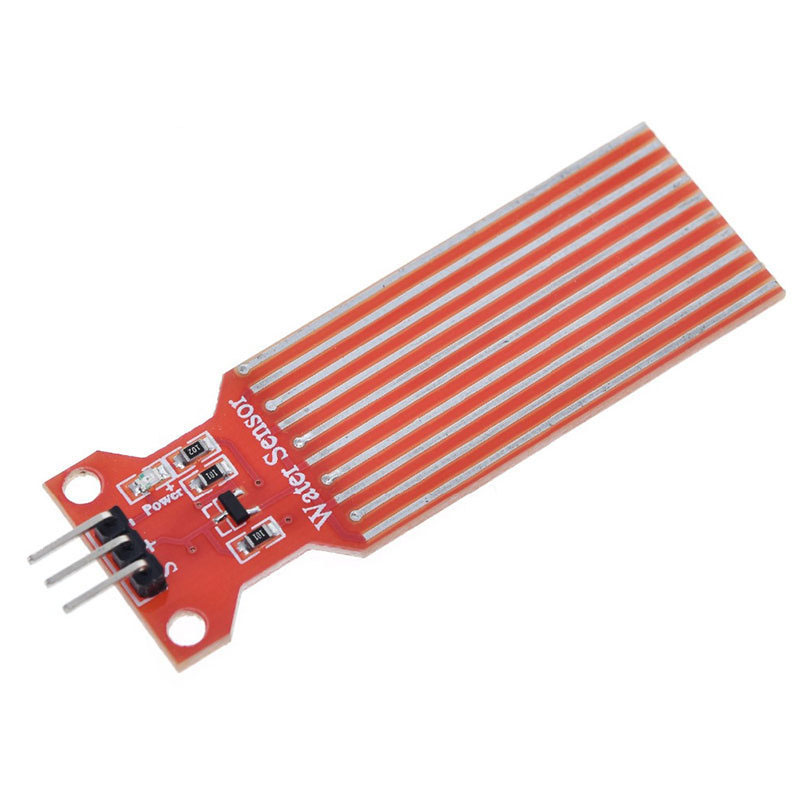

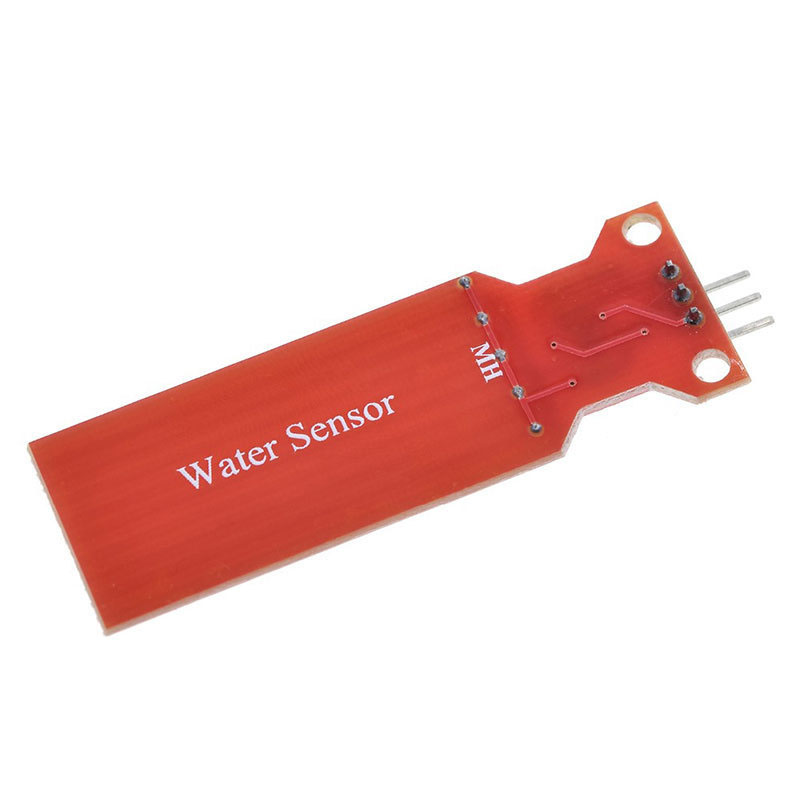

Water Level Sensor
Product Information:
Water sensor is a simple and cost-effective water level/water drop recognition sensor. It measures the size of water drops/water volume through a series of exposed parallel wire traces to determine the water level. The conversion from water volume to analog signal can be easily completed, and the output analog value can be directly read by the Arduino development board to achieve the effect of water level alarm.
Specifications:
● Product name: water level sensor
● Working voltage: DC3-5 V
● Working current: less than 20mA
● Sensor type: analog
● Detection area: 40mm x 16mm
● Manufacturing process: FR4 double-sided tin spraying
● Operating temperature: 10 ℃ - 30 ℃
● Operating humidity: 10% - 90% non condensing
● Product weight: 3.5g

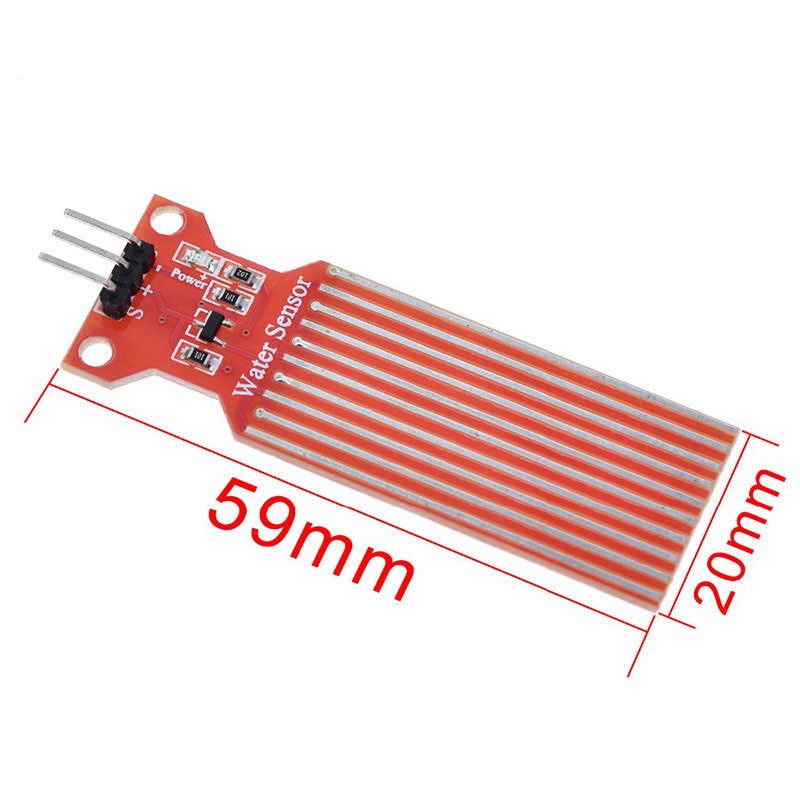

● Product size: 62x20x8mm
● Packaging method: electrostatic bag
