XH-M603 Battery Lithium Battery Charging Control Module Battery Charging Control Protection Switch 12-24VItem NO.: XH-M603
-
Customized Requirements
- Quantity
-
-
- Product Name: XH-M603 Battery Lithium Battery Charging Control Module Battery Charging Control Protection Switch 12-24V
- Item NO.: XH-M603
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 12-24V , Battery Lithium Battery Charging Control Module , XH-M603 , Battery Charging Control Protection Switch
- Creation Time: 2024-04-08

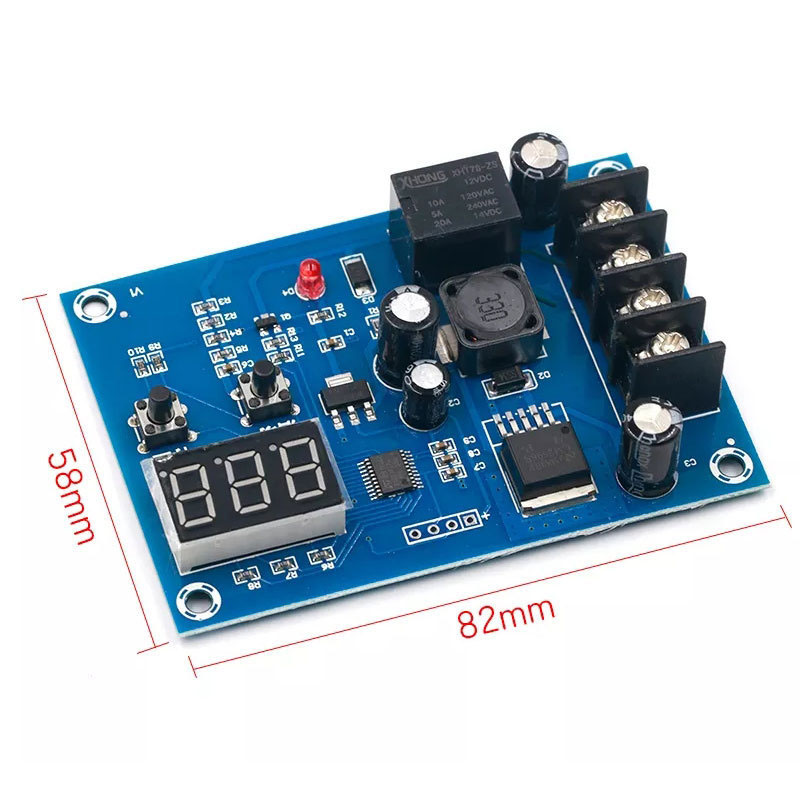

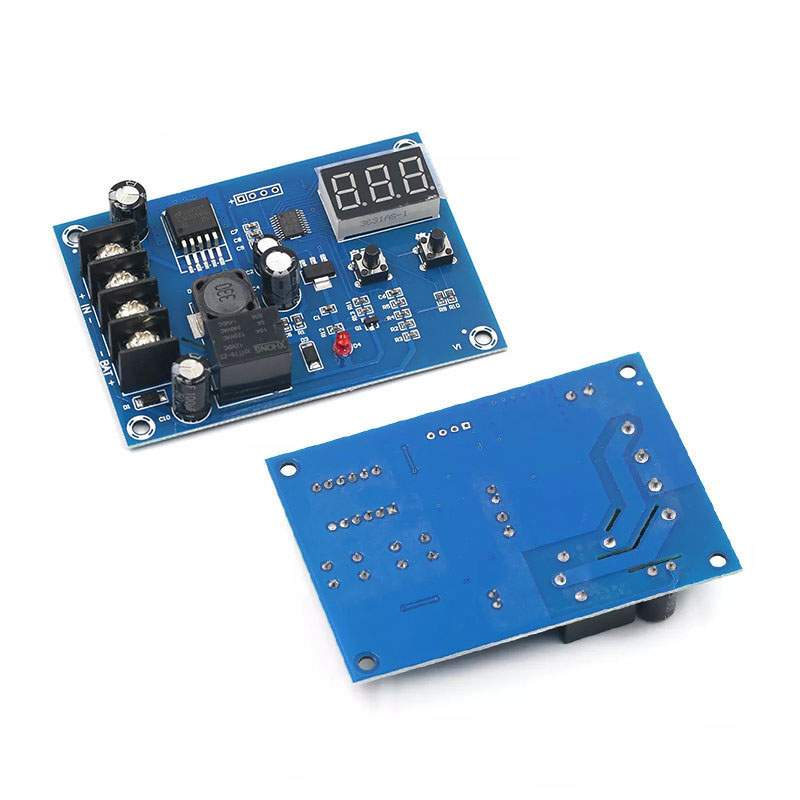

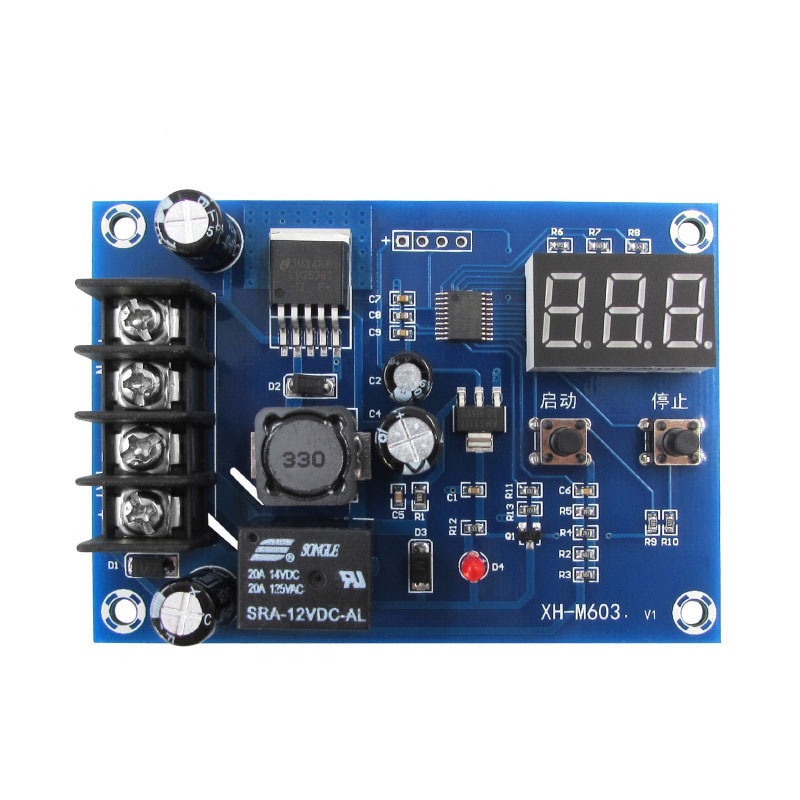

XH-M603 Lithium Battery Charging Control Module
Product Information:
● Product Name: CNC Battery Charging Control Module
● Product model: XH-M603
● Input voltage: DC 10-30V
● Control current: up to 20A
● Control accuracy: 0.1V
● Output type: direct output
● Voltage error: ± 0.1V
● Scope of use: 12~24V various batteries
● Product net weight: 40g
● Product size: 82 × fifty-eight × 18mm
Usage:
1. Setting the starting voltage: In the normal display voltage state, pressing the button will display the starting charging voltage; Long press the digital tube for 3 seconds to flash; The start or stop button can be used to set the start charging voltage value
2. Setting the shutdown voltage: Under the normal display voltage state, pressing the button will display the charging voltage; Long press the key for 3 seconds, the Nixie tube will flash; Can start or stop buttons to set the charging voltage value
3. Factory reset: when the start/stop button is pressed in the startup status, the Nixie tube will display 888; Indicates factory reset settings
