Bluetooth Digital Amplifier Board Bluetooth Speaker Ceiling Speaker Background Music Amplifier Board 2X15W HW-346Item NO.: HW-346
-
Customized Requirements
- Quantity
-
-
- Product Name: Bluetooth Digital Amplifier Board Bluetooth Speaker Ceiling Speaker Background Music Amplifier Board 2X15W HW-346
- Item NO.: HW-346
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: 2x15W , HW-346 , Bluetooth Digital Amplifier Board , Bluetooth Speaker , Background Music Amplifier Board
- Creation Time: 2024-04-30
Bluetooth Digital Amplifier Board 2X15W
Features:
●Sound quality is very good by using this module.
●Wireless Bluetooth audio input and the Max. receiving distance is 10m.
●Dual channel of 15W+15W power output.
●Applicable speaker impedance: 4/6/8/10 ohm.
Specifications:
●Audio Input: Wireless Bluetooth
●Max. Receiving Distance: 10M
●Power Output: Dual-channel 15W+15W
●Applicable Speaker Impedance: 4/6/8/10 ohm
●Supply Voltage: DC 10-25V(recommended More than 2A)
●Power Supply Interface: 2.54*3PIN
●Speaker Interface: 2.54*2PIN

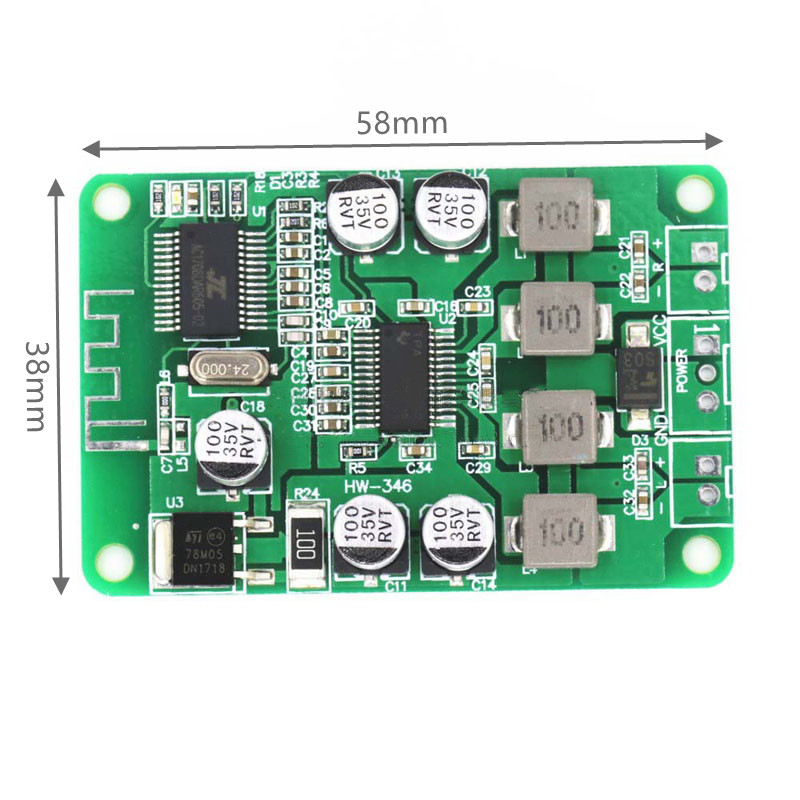

●PCB Board Size: 58 * 38mm / 2.3 * 1.5in
●Weight: 14g
Package Included:
1 X TPA3110 2X15W Bluetooth Digital Power Amplifier Board for Bluetooth Speaker
