CCM5NJ PWM DC Motor Governor Stepless Speed Control Switch 12V24V36V60V 10A Reverse ProtectionItem NO.: CCM5NJ

CCM5NJ PWM DC Motor Governor

Product Features:

The maximum power design of this governor is 10A, without false calibration. It can operate for a long time under normal working conditions and in a well ventilated environment.

High performance speed controller, no harsh whistling sound, with sufficient material usage, high power, low heat generation, high efficiency, and high torque.

The governor adopts high-grade sealed Potentiometer with switch function, and its price is 3 times that of the ordinary Potentiometer. The ordinary Potentiometer is not dust-proof, and the speed regulation is easy to jump and unstable after a period of time.

Both the power and voltage stabilizing tubes are imported with original packaging. At high voltage, domestic voltage stabilizing tubes cannot withstand it at all, so the power and voltage stabilizing tubes of this product are almost unbreakable (except for non human factors)

Technical Parameters:

● Model: CCM5NJ

● Potentiometer: resistance B100K, opening 8mm

● Operating voltage: 10V-60VDC output voltage is approximately 0-100% of input voltage

● Control power: 12V=72W, 24V=192W ····· 60V=480W

● Rated current: 8A

● Maximum current: 10A

● Speed regulation range: 0-100%

● PWM frequency: 21KHZ

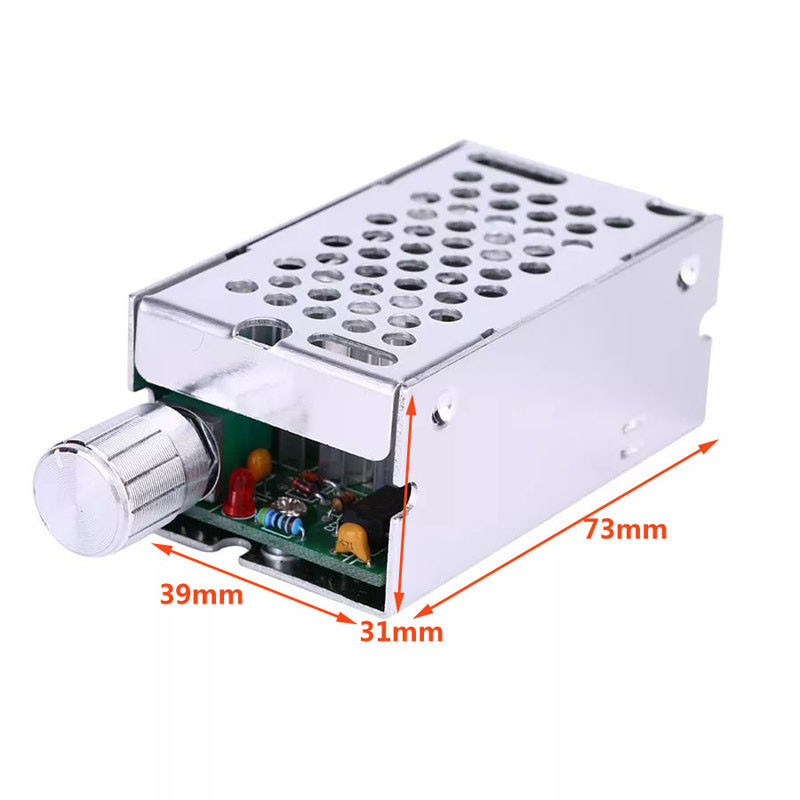

● Size: 73mm x 39mm in length and width, with a height of approximately 31mm

● Net weight: 61g

● If the forward and reverse functions are required, customers can connect the forward and reverse switches externally.

● Please note that this is not a power module and the motor must be connected to adjust the speed. If the motor is not connected, the output of the multimeter will not change.

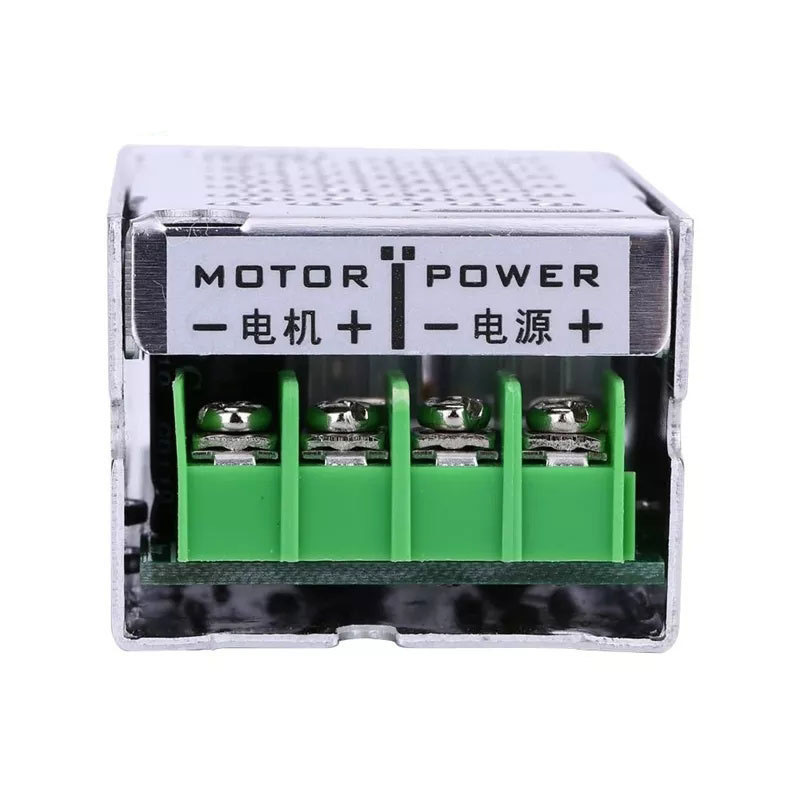

● The motor can be connected without distinguishing between positive and negative. When the running direction is not consistent with the expected direction, the direction can be changed by adjusting the wire sequence.

Please Note:

1. This governor is used for DC brushless motors.

2. Not suitable for speed regulation of DC brushless motors; It cannot be used as a Pressure regulator or voltage stabilizer!
