Ceramic Vibration Sensor Analog Piezoelectric Electronic Building Block Single Chip ModuleItem NO.: Ceramic shock sensor
-
Customized Requirements
- Quantity
-
-
- Product Name: Ceramic Vibration Sensor Analog Piezoelectric Electronic Building Block Single Chip Module
- Item NO.: Ceramic shock sensor
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Switch/Relay Module
- Tag: Ceramic Vibration Sensor
- Creation Time: 2024-03-30

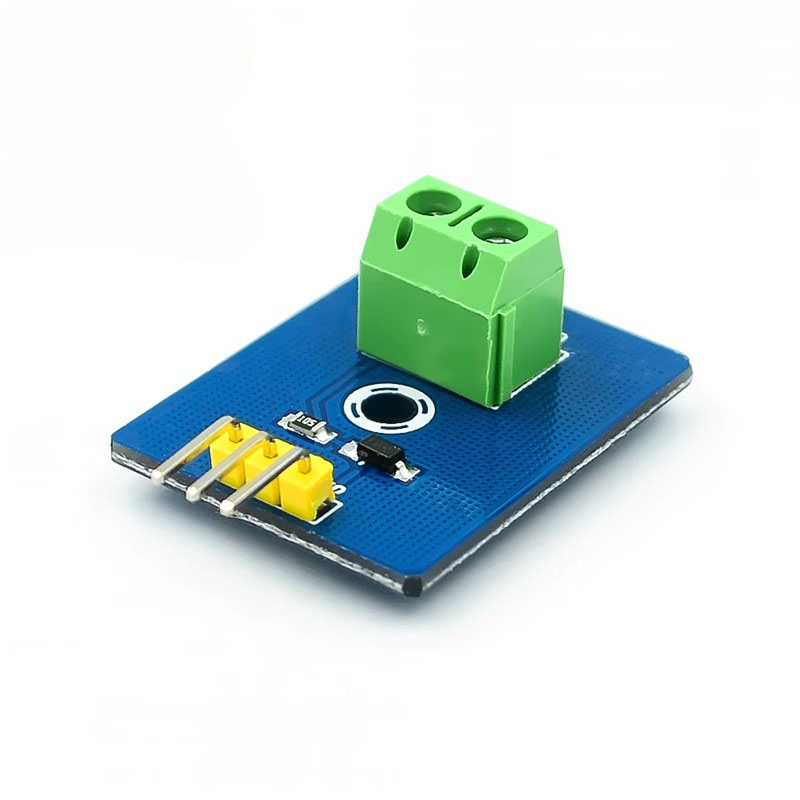

Ceramic Vibration Sensor Module
Product Information:
Port S is connected to the analog input pin of the controller. 5V and GND are respectively connected to+5V and GND of the power supply. Input and Gnd shall be connected to the positive and negative electrodes of piezoelectric ceramic chips when purchasing.
Product Parameters:
1. Working voltage: 3.3V or 5V
2. Working current:<1mA
3. Operating temperature range: - 10 ℃~ + 70 ℃
4. Interface type: analog signal output

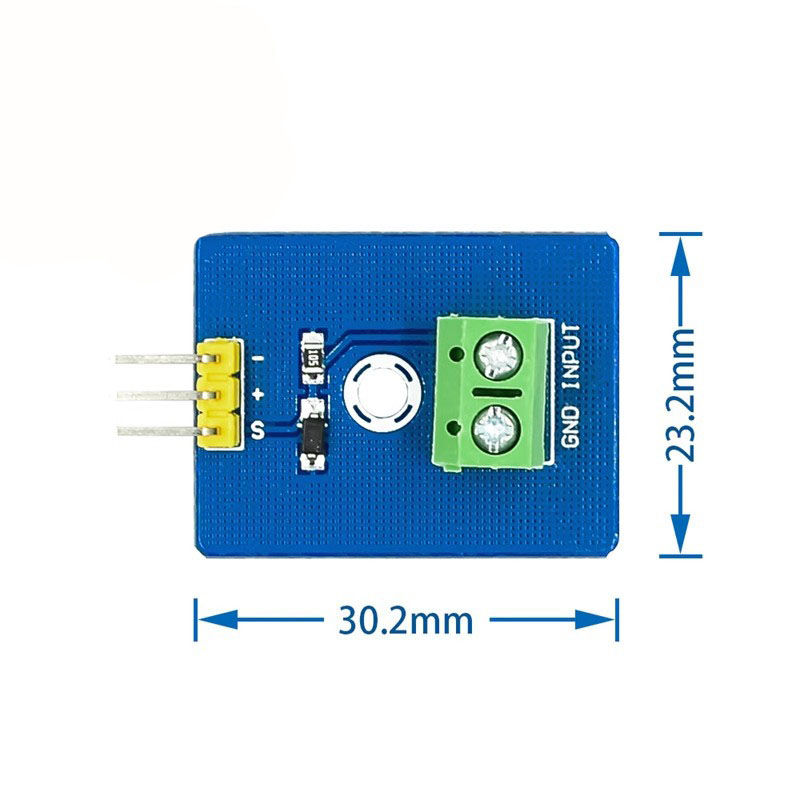

5. Size: 30mm x 23mm
6. Weight: 5g
7. Pin definition: S signal output,+power supply (VCC), - ground (GND)
8. Input: positive pole of piezoelectric ceramic chip
9. Gnd: negative pole of piezoelectric ceramic sheet
