HC-020K Photoelectric Speed Measurement Module 4-wheel Drive Trolley Dual Speed Measurement with Encoder Kit

HC-020K Photoelectric Speed Measurement Module 4-wheel Drive Trolley Dual Speed Measurement with Encoder KitItem NO.: HC-020

US$ 3.27
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
HC-020K Photoelectric Speed Measurement Module 4-wheel Drive Trolley Dual Speed Measurement with Encoder Kit
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy

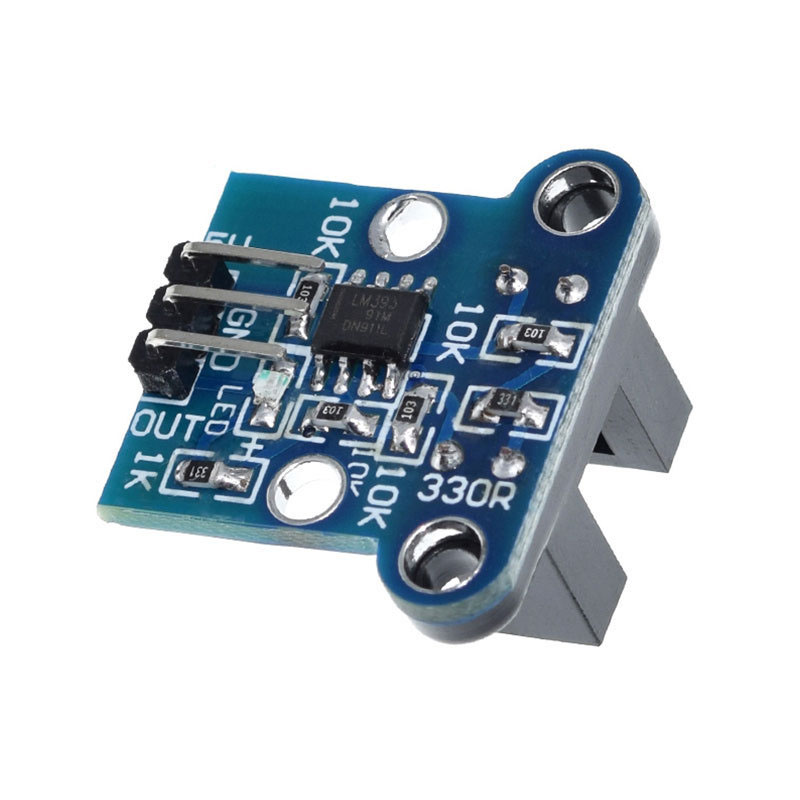

  • HC-020K Photoelectric Speed Measurement Module



    Product Information:

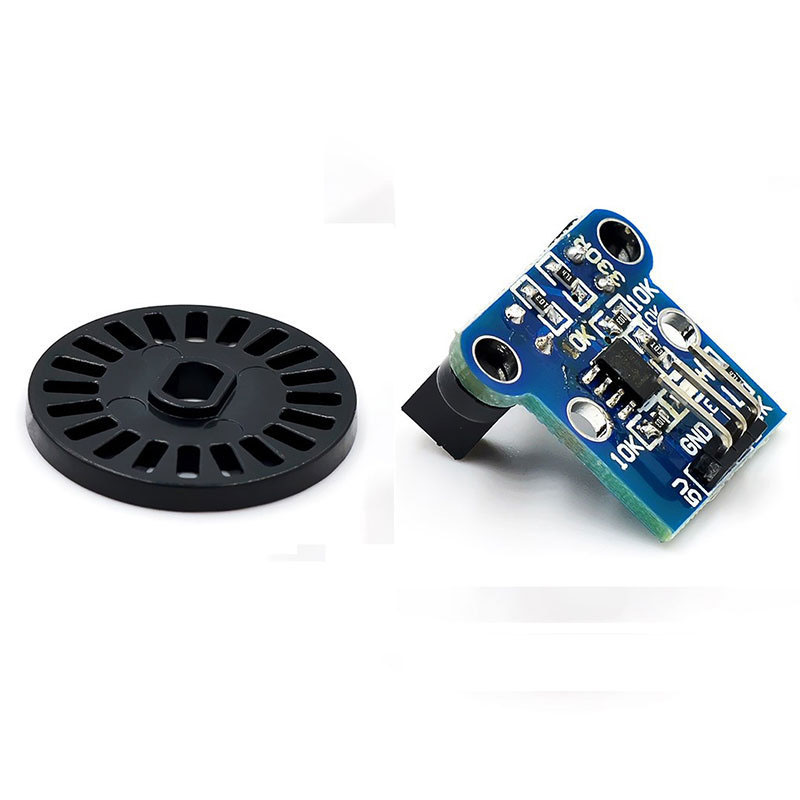

    HC-020K speed sensor is a speed measuring module with wide voltage, high resolution, short response time and switching value output. The black encoder can be used to test the motor speed (the measured specification is the encoder, the inner diameter of the D-type encoder provided is 4mm, which can be used for the diameter of the motor output shaft, the matching TT motor, yellow housing and white shaft).



    Product Features:



    ● Working voltage of module: 4.5-5.5V

    ● Pressure drop of transmitting tube: Vf=1.6V

    ● Emitter tube current:<20mA

    ● Signal output: A and B lines; TT power level;

    ● Resolution: 0.01mm

    ● Measuring frequency: 100KHz

    ● Disc diameter: 24mm

    ● Diameter of inner disc: 4mm

    ● Encoder resolution: 20 lines

    ● Speed sensor configuration: motor speed of Line 1
