DC-DC 10-32V to 35-60V Adjustable Boosting and Stabilizing Power Module Board 120W Electric Vehicle ChargingItem NO.: DC120W
-
Customized Requirements
- Quantity
-
-
- Product Name: DC-DC 10-32V to 35-60V Adjustable Boosting and Stabilizing Power Module Board 120W Electric Vehicle Charging
- Item NO.: DC120W
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 120W , DC-DC , 10-32V to 35-60V , Adjustable Boosting and Stabilizing Power Module
- Creation Time: 2024-05-13

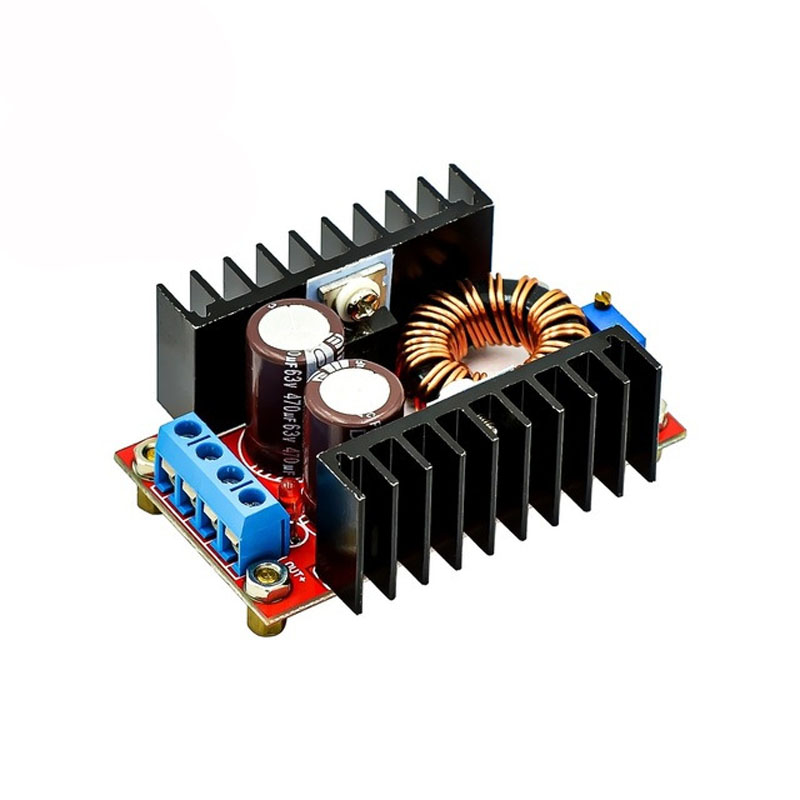

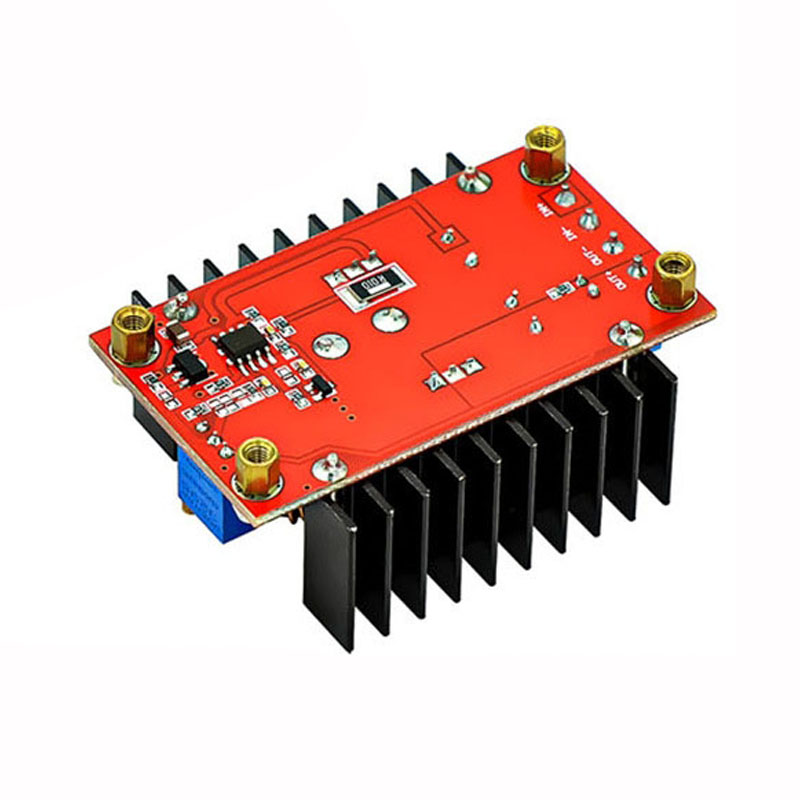

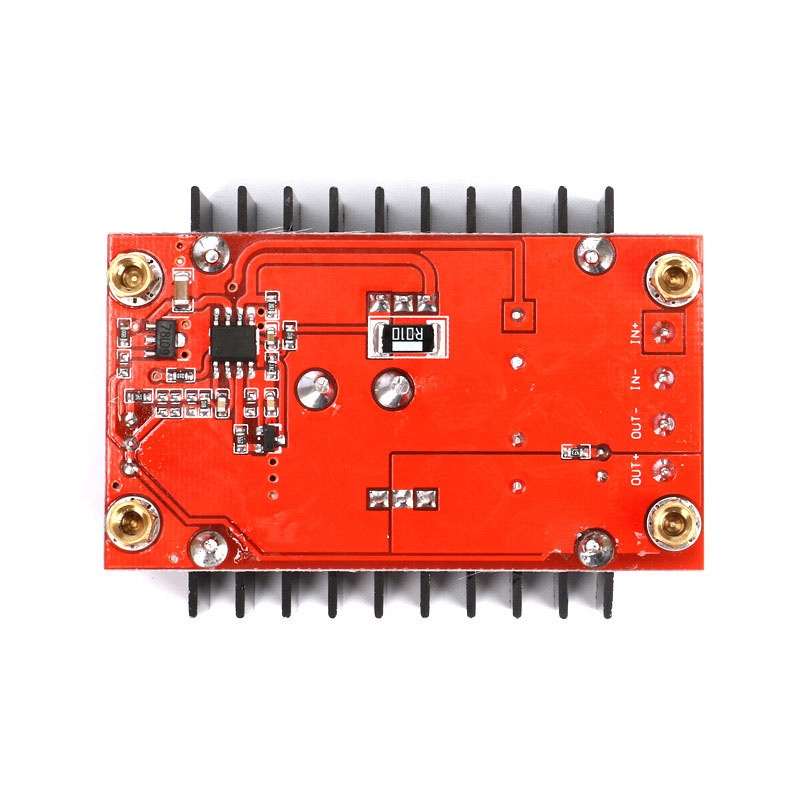

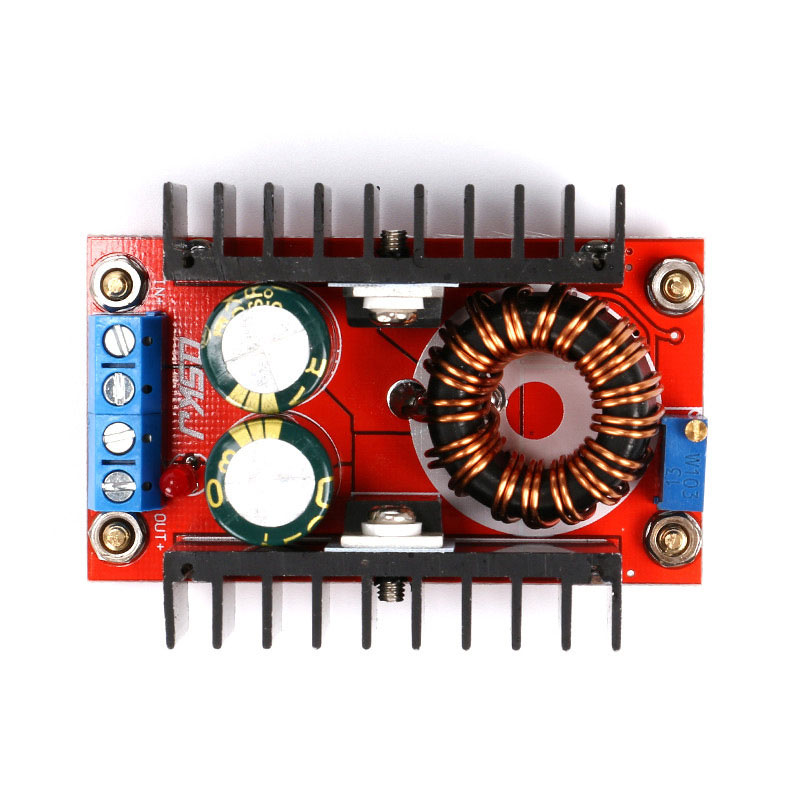

DC-DC Boost Module 120W
Module parameters:
Module nature: Non isolated boost module (BOOST)
Input voltage: 10-32V
Output voltage: continuously adjustable (35-60V)
Output current: 5A (MAX)
Input current: 16A (MAX) (If it exceeds 10A, please strengthen heat dissipation.)
Output power: Natural cooling 80W (MAX), enhanced heat dissipation 120W (MAX) Actual power
Conversion efficiency: 90% typical (for reference only)
Output ripple: 2% (MAX) 20M bandwidth
Working temperature: Industrial grade (-40 ℃ to+85 ℃) (If the ambient temperature exceeds 40 ℃, please reduce the power or strengthen heat dissipation)
Full load temperature rise: 45 ℃
No load current: typical 25mA
Load adjustment rate: ± 0.5%
Voltage adjustment rate: ± 0.5%
Dynamic response speed: 5% 200uS
Short circuit protection: None (please install fuses or protective circuits in the input)
Input reverse protection: None, please cooperate with our reverse protection board or connect diodes in series with the input.
Wiring method: solderless, terminals
Weight: 67 grams
