Customized Requirements
- Quantity
-
-
- Product Name: DC-DC 3A Mini Buck Module Car Power Supply 6V9V12V-30V to 3.3V/5V/9V/12V Output
- Item NO.: AJ38
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 3A , DC-DC , Mini Buck Module , Car Power Supply , 6V9V12V-30V to 3.3V/5V/9V/12V
- Creation Time: 2024-04-10

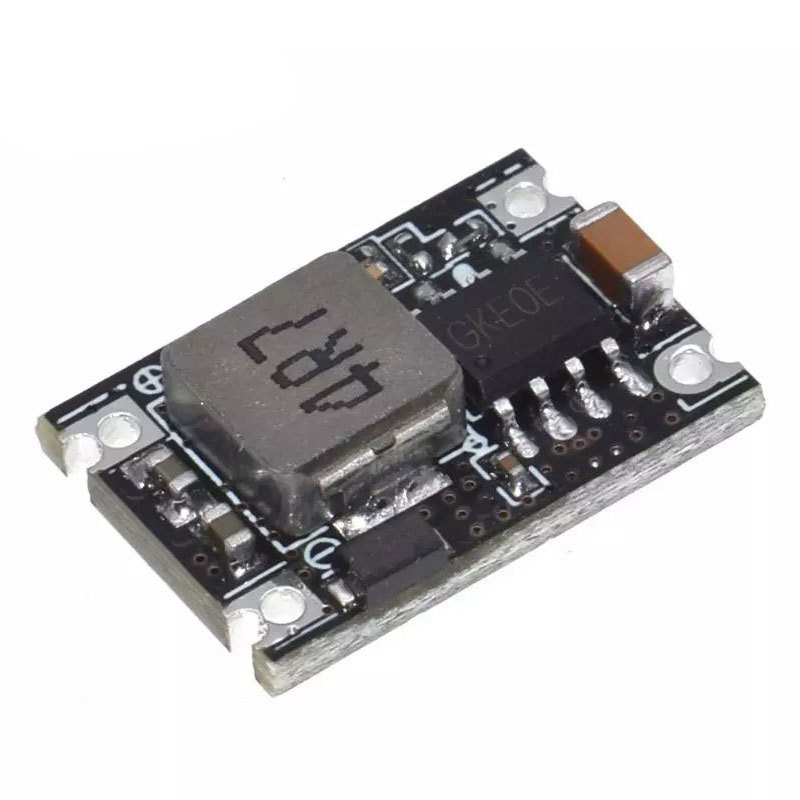

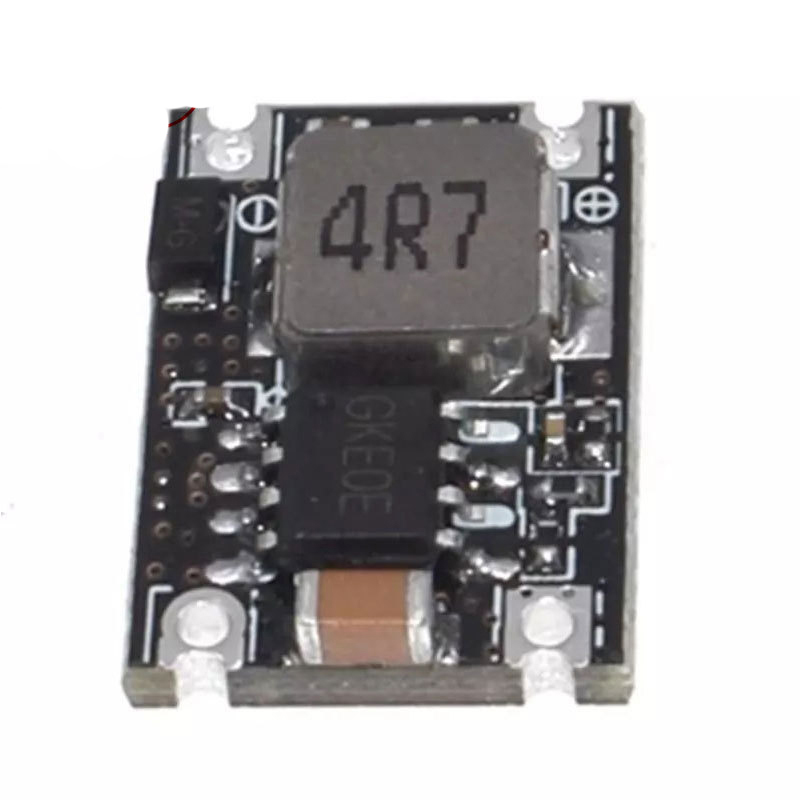

DC-DC 3A Mini Buck Module
Product Introduction:
A power module is a power supply that can be directly mounted on a printed circuit board, with two types: buck and boost. Its characteristic is that it can provide power for specialized integrated circuits (ASICs), digital signal processors (DSPs), microprocessors, memory, field programmable gate arrays (FPGAs), and other digital or analog loads.
Selecting industrial grade components, combined with years of professional and manufacturing experience, each power module undergoes multiple quality and performance tests before leaving the factory. Ensure the performance and stability of the module, and meet the usage requirements of industrial grade products.
Performance Parameters:
● Input voltage: 5V~30V (must be higher than the output voltage)
● Output voltage: 3.3V/5V, other voltage values can be customized
● Output current: 3A (maximum)
● Conversion efficiency: 96% (highest)
● Output ripple: < 30mA
● Output accuracy: ± 0.1V
● No-load current: < 1mA
● Operating temperature: -40 ℃~+85 ℃
● Operating humidity: 20%~90%
● Size: 17.5mm * 12mm * 4.3mm (length * width * height)
● PCB layers: 2 layers of boards
● Shutdown function: not supported
● Heat dissipation method: natural heat dissipation
● Installation method: wiring
● With or without isolation: without isolation
● Device sources: some imported, some domestically produced
● Production process: machine pasting, reflow soldering welding
● Design aging standard: 720 hours without failure
● Factory aging standard: 72 hours without failure
● Service life: 30000 hours without faults (output current not exceeding rated value)
● Inspection standard: All tests (factory test+warehouse test)

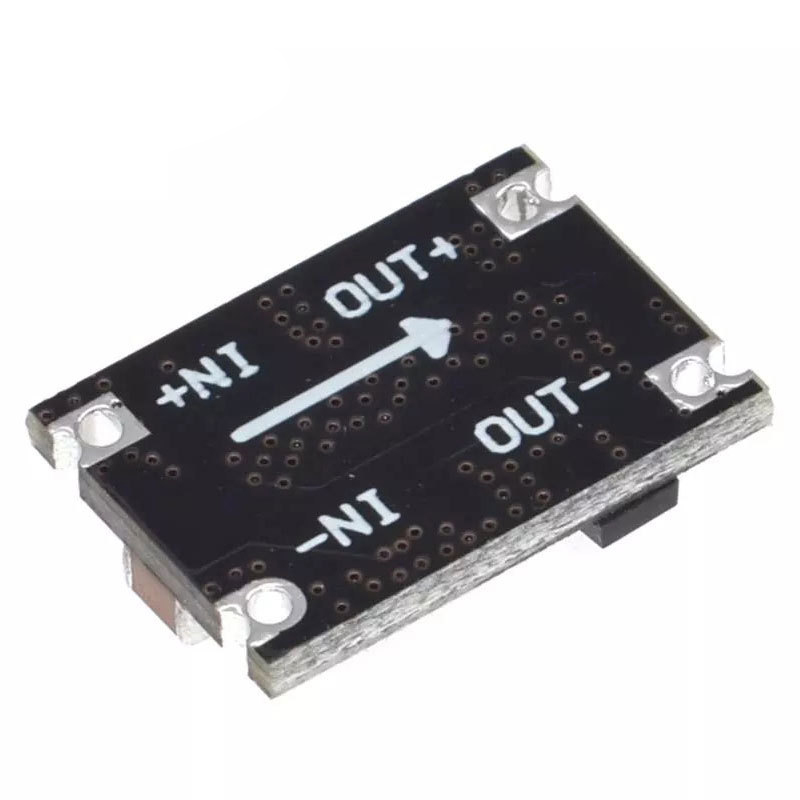

Pin Definition:
● IN -: Input power negative terminal
● IN+: Input power positive terminal
● OUT -: Output power negative terminal
● OUT+: output power positive terminal
