Home>Electronic Modules>Power Module>High-precision 5V2A Integrated Charging and Discharging Module Type-C Input Compatible with 4.2V/4.35V Lithium Battery
High-precision 5V2A Integrated Charging and Discharging Module Type-C Input Compatible with 4.2V/4.35V Lithium BatteryItem NO.: 5V2AType-C
US$ 2.79
-
Customized Requirements
- Quantity
-
Adding to cart succeed
High-precision 5V2A Integrated Charging and Discharging Module Type-C Input Compatible with 4.2V/4.35V Lithium Battery
color:red,size:xxl
Subtotal: US$ 0
View My Cart
-
- Product Name: High-precision 5V2A Integrated Charging and Discharging Module Type-C Input Compatible with 4.2V/4.35V Lithium Battery
- Item NO.: 5V2AType-C
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: High-Precision , Integrated Charging And Discharging Module , 5V2A , Type-C Input , Compatible with 4.2V/4.35V Lithium Battery
- Creation Time: 2024-04-09

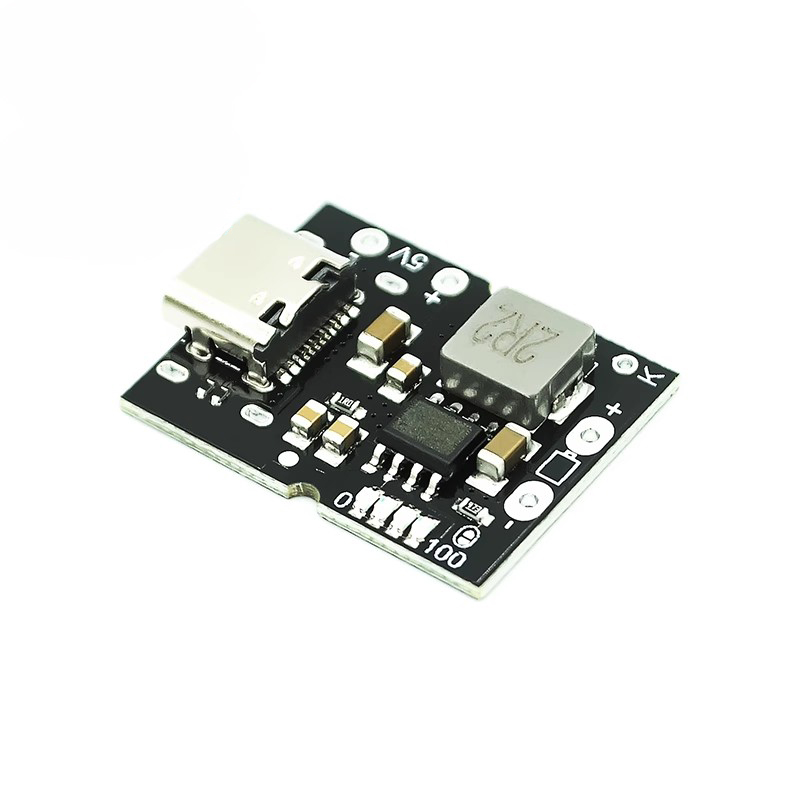

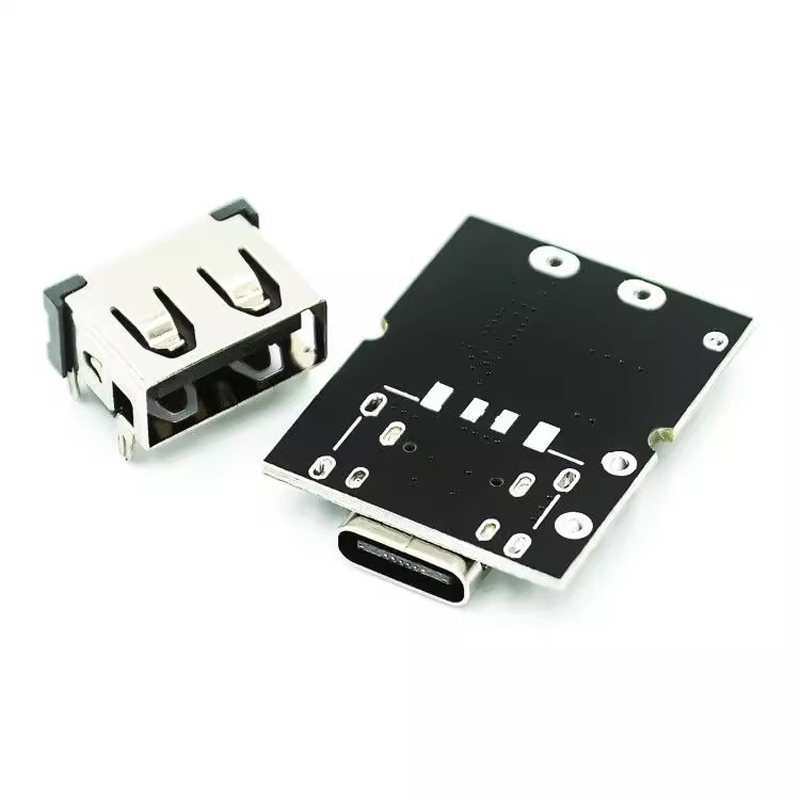

5V2A Integrated Charging and Discharging Module
Basic Parameters:
Input voltage range: 5~5.5V
Charging cut-off voltage: (4.2V/4.35V) ± 0.5%
Charging current: 2.4A ± 5%
Boost output voltage: 5V~5.15V (wire loss compensation)
Boost output voltage ripple: 100mV
Boost output current: 2A
Boost conversion efficiency: 92.5% (3.6V input, 5V2A output)
Battery end static current:<30uA

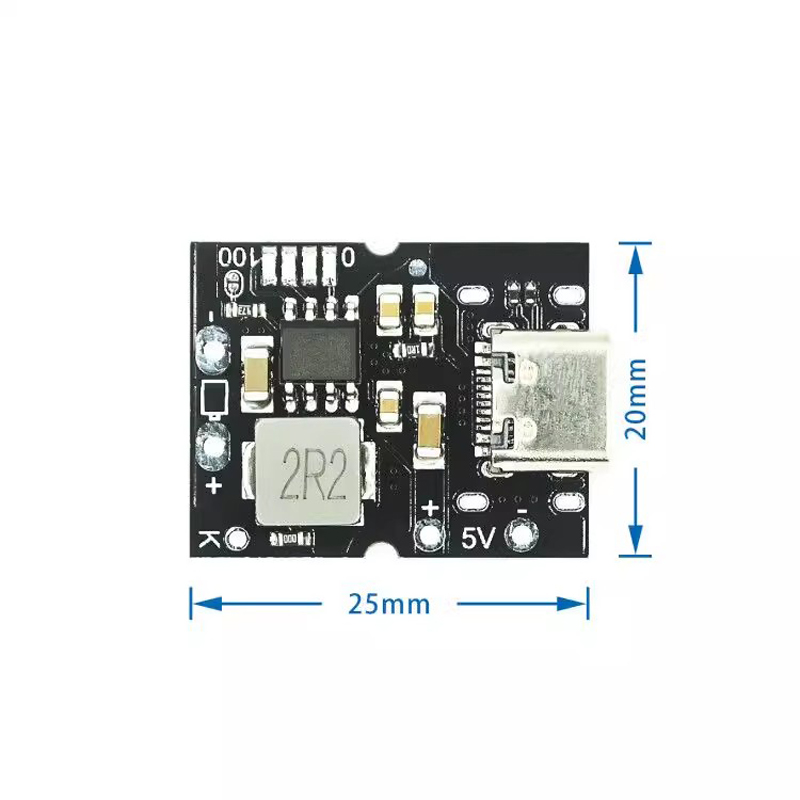

Size: 20 * 25 * 4.5mm (height 11.3mm including USB+Type-C port height)
