- Product Name: PWM DC Motor Speed Controller 5V-35V Speed Switch 5A Switch Function LED Dimmer
- Item NO.: HW-687
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 5A , PWM DC Motor Speed Controller , Speed Switch , LED Dimmer , Switch Function , 5V-35V
- Creation Time: 2024-05-15

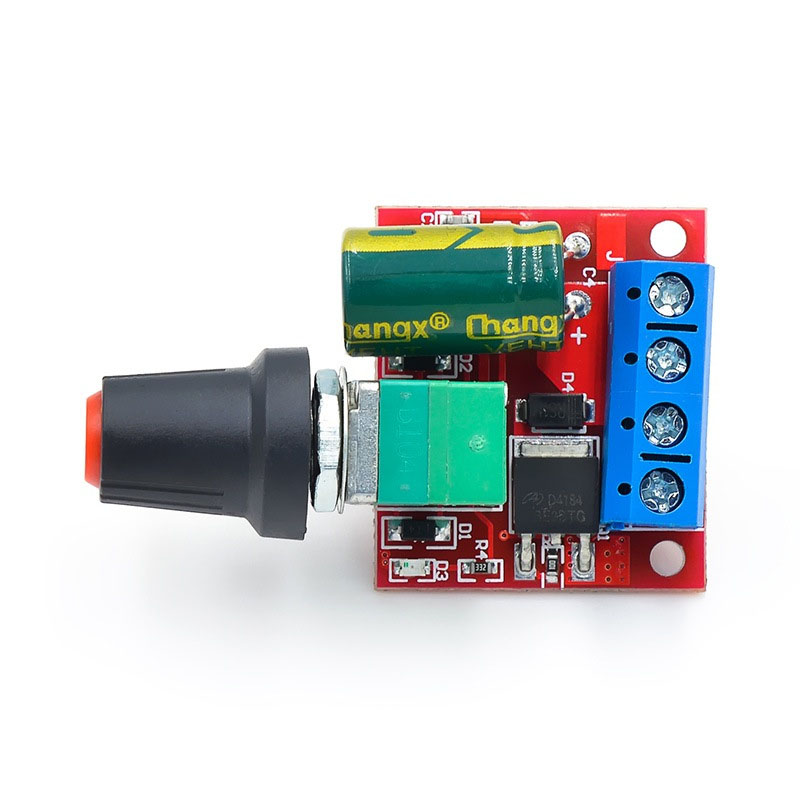

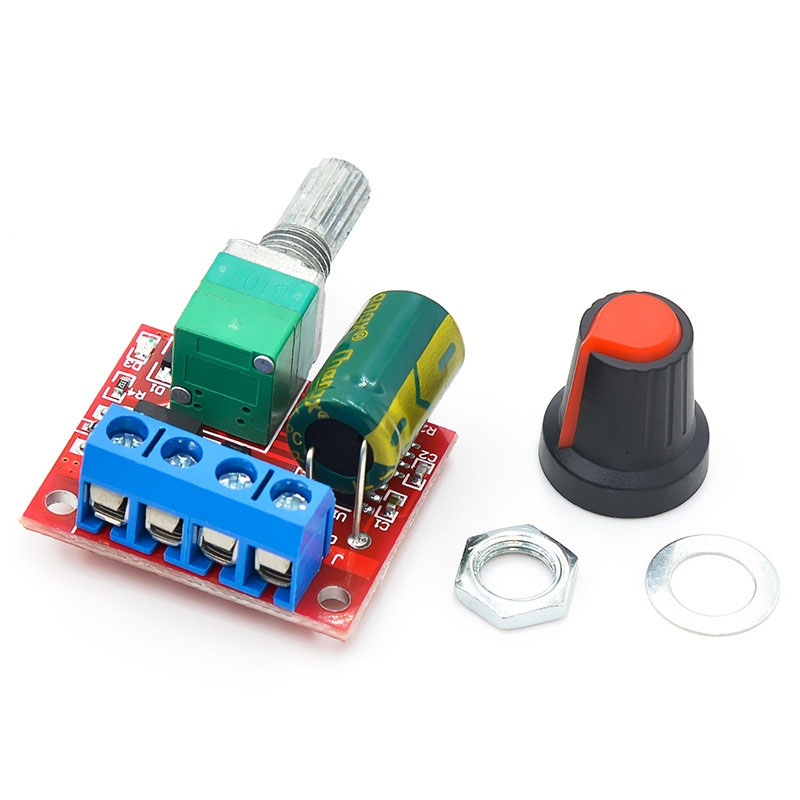

PWM DC Motor Speed Controller 5A
Product Parameters:
1. Working voltage: DC4.5V-35V
2. Output current: 0-5A
3. Output power: 90W (maximum)
4. Static current: 7u A (standby state)
5. PWM duty cycle: 1% -100%
6. PWM frequency: 20khz
7. Dimensions: 30MM long x 26MM wide (excluding handle) x 14MM high
8. Weight: 0.013KG
Precautions:
1. The input of the DC motor governor is DC power, and it cannot be directly connected to AC power (such as 220V AC power for household use), otherwise it will burn out!!!
2. Do not reverse connect the positive and negative terminals of the DC power supply, otherwise the governor may be damaged.
3. The motor can distinguish between positive and negative, and when the running direction is not consistent with the expected direction, the direction can be changed by adjusting the line sequence.
4. Adjusting the Potentiometer knob can change the output duty cycle of the governor and the motor speed.
