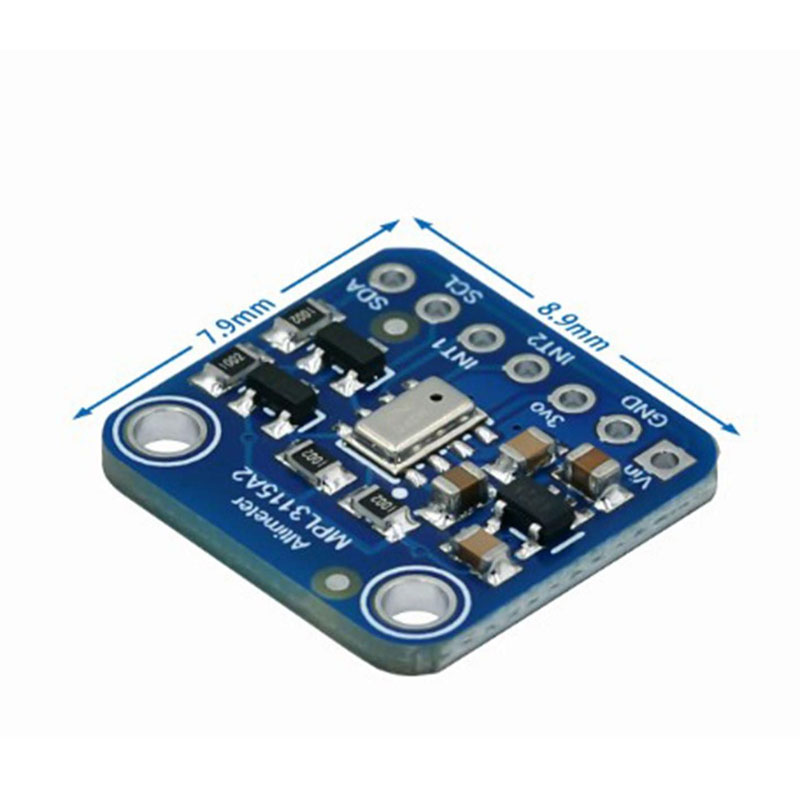

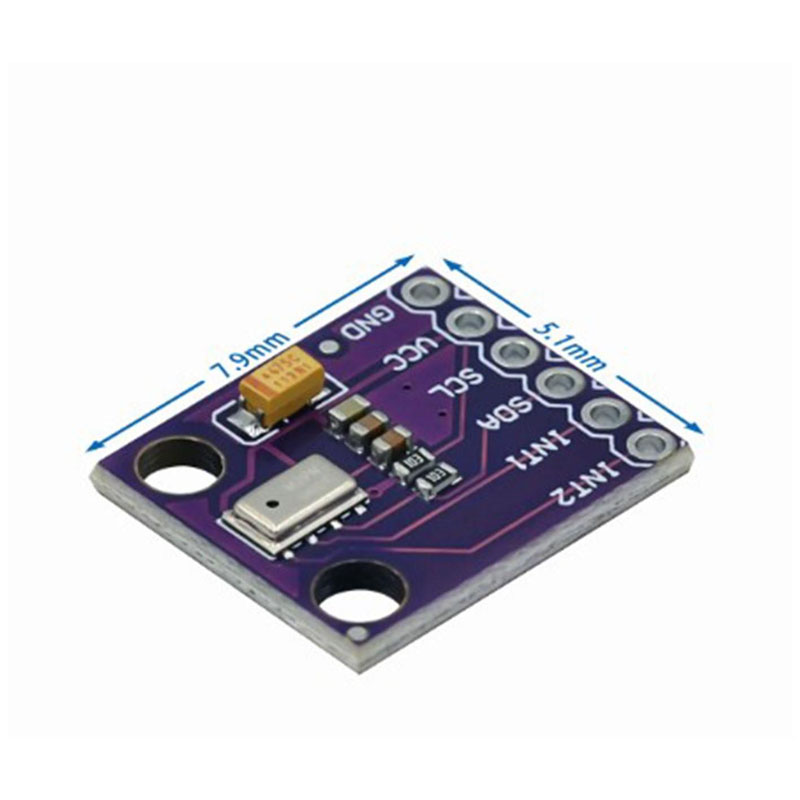

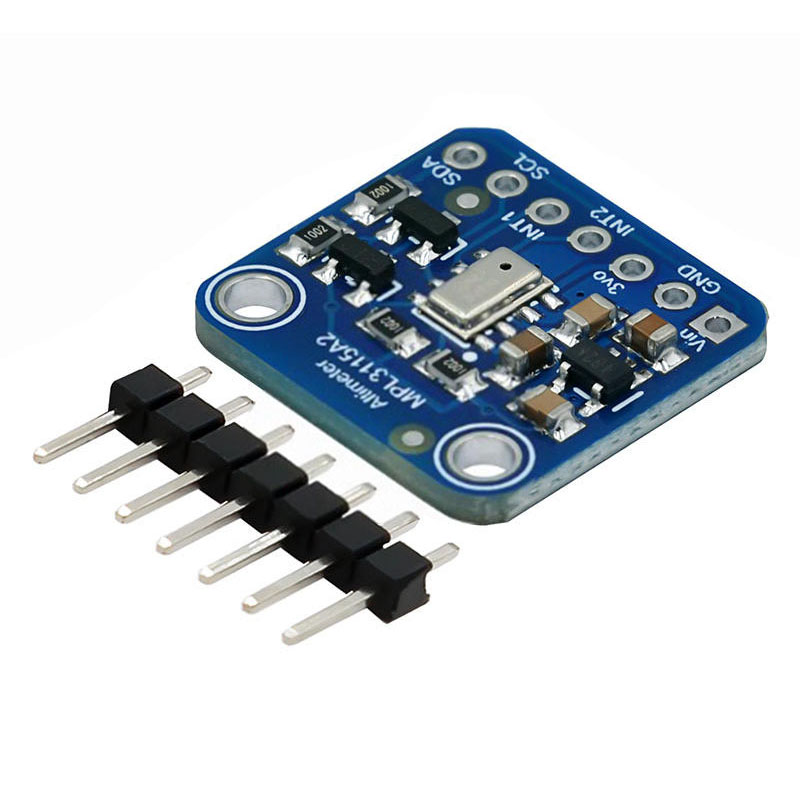

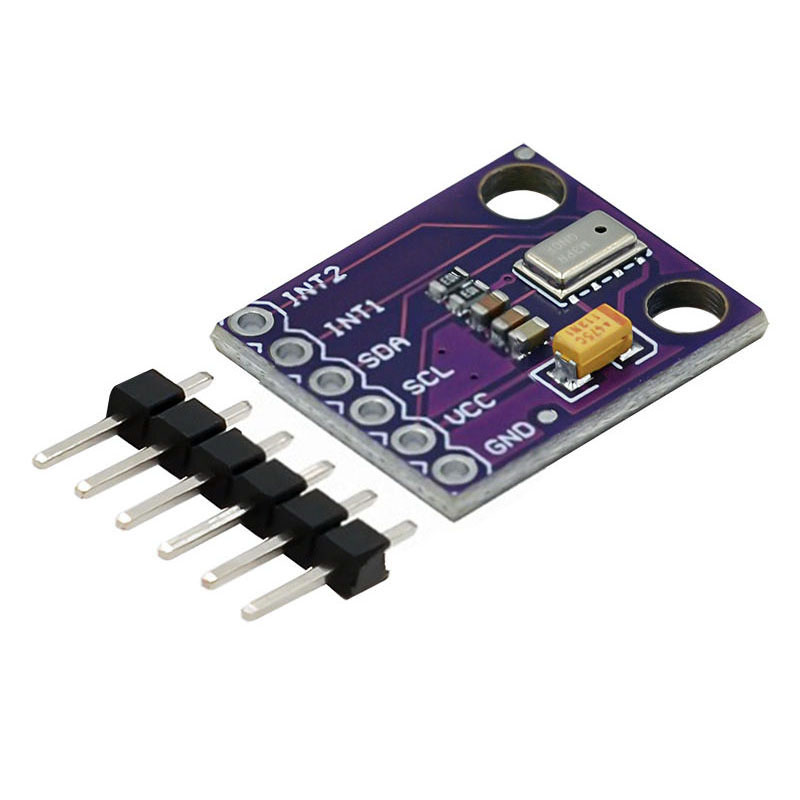

MCU 3115 MPL3115A2 Pressure Altitude Intelligent Temperature Sensor ModuleItem NO.: MCU-3115

MCU-3115 MPL3115A2 Pressure Temperature Sensor Module

Module Introduction:

Thanks to the full compensation algorithm and height algorithm built into the MPL3115A2, the sensor can directly output 20-bit pressure readings or 20-bit height readings, as well as 12-bit temperature readings, with an effective resolution of up to 30 centimeters. From the beginning of measurement to the output of international standard units (Pascal, meter, and Celsius), MCU only needs to perform I2C read and write operations, without any additional data processing, effectively saving MCU resources while greatly reducing system power consumption.

The MPL3115A2 also supports on chip pressure, height, and temperature offset adjustment, autonomous data acquisition, limit alarm, and extreme value recording functions. The sensor also provides an oversampling rate of up to 128 times, with 32 FIFO sampling buffers for data storage, and the host can read data as needed.

The MPL3115A2 is a wise choice for pressure and height measurements.

Specifications:

● Absolute pressure measurement range: 20 to 110 kPa

● Relative measurement accuracy: ± 0.05 kPa

● Effective resolution: 1.5Pa/0.3m

● Operating temperature range: - 40 to 85? C

● Power supply voltage: 1.95 to 3.6 V

● I/O supply voltage: 1.62 to 3.6 V

● Power consumption:

− Standby mode: 2 μ A

− Low power consumption mode: 8.5 μ A. 1Hz sampling

● Compensated data output

− 20 bit pressure data, output unit Pascal

− 20 bit height data, output unit: meter

− 12 bit temperature data, output unit: degree C

● I2C digital output interface

● 2 programmable interrupt pins

● Built-in 32 sampling FIFO buffer
