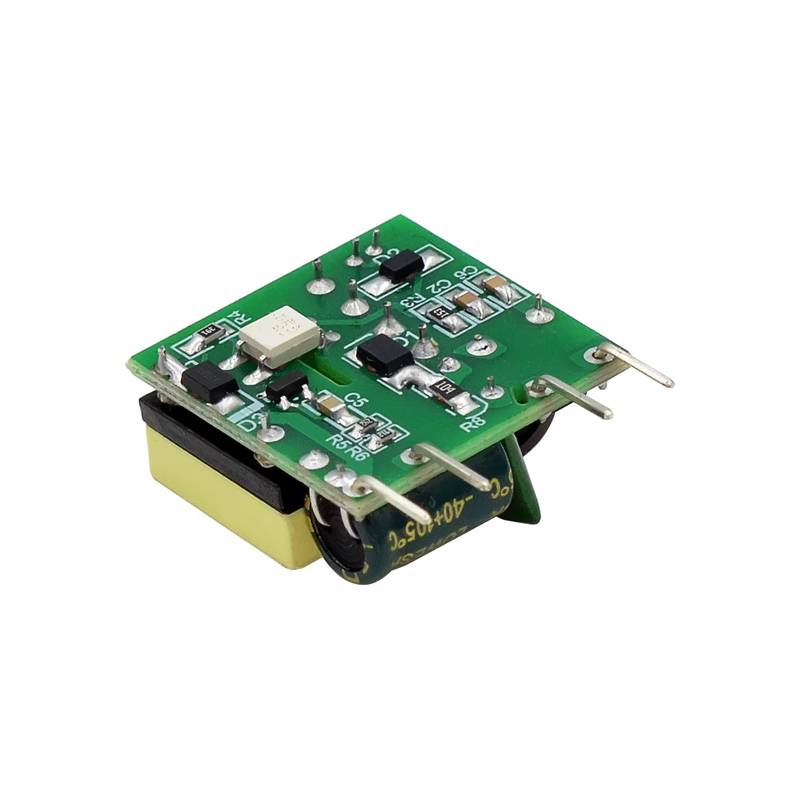

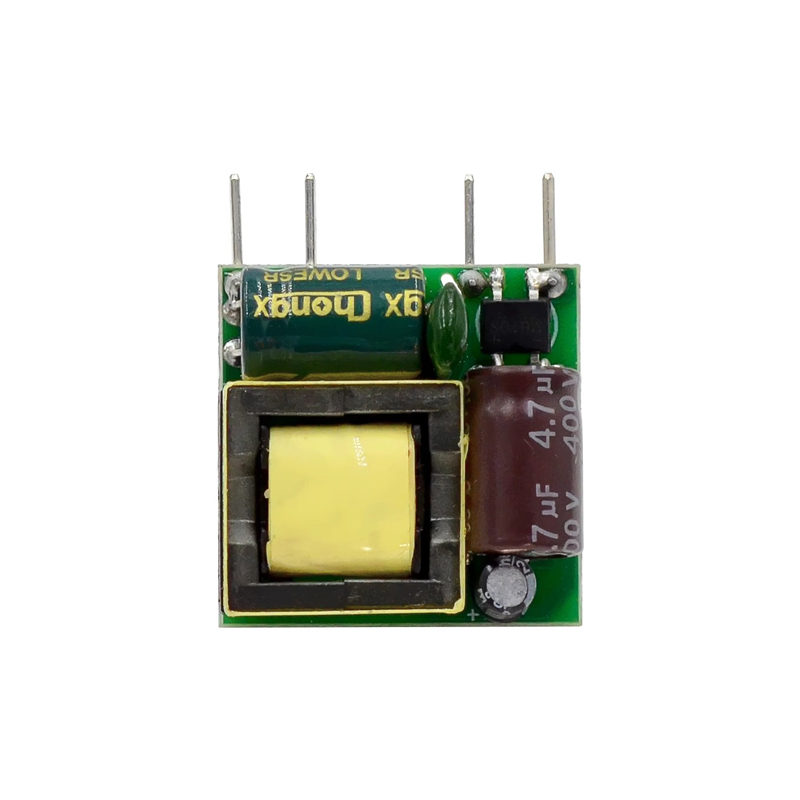

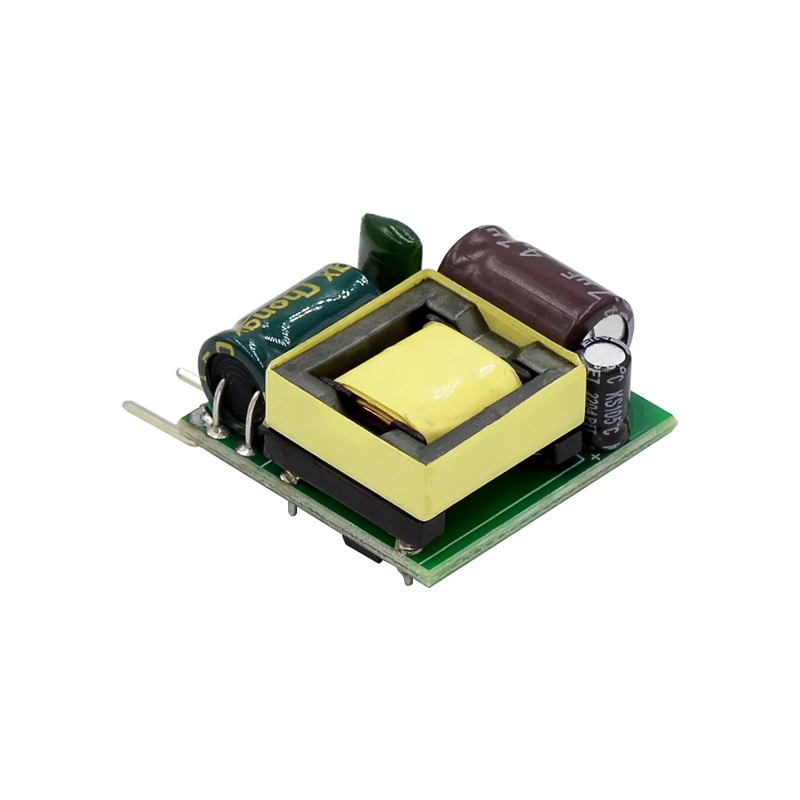

12V400ma Switch Power Supply Module

Product Introduction:

This power supply is an isolated module power supply with temperature protection, overcurrent protection, and full short-circuit protection. It is isolated from high and low voltage sources, with AC85-265V wide voltage input and 431 precise regulated DC5V output. It is compact, stable in performance, and cost-effective

Basic parameters:

Input voltage: AC85~265v50/60HZ

Output voltage: DC12V

Working current: 400mA

Peak current: 450mA

Power: 4.8W

External dimensions: length, width, height 25 * 25 * 12 (mm)

Installation method:

A. Pins can be inserted and soldered directly onto the PCB at the input and output ends

B. Glue fixation
