High Current 5A Constant Voltage Constant Current Buck Power Module LED Driver Lithium Battery Charging ModuleItem NO.: MK01606

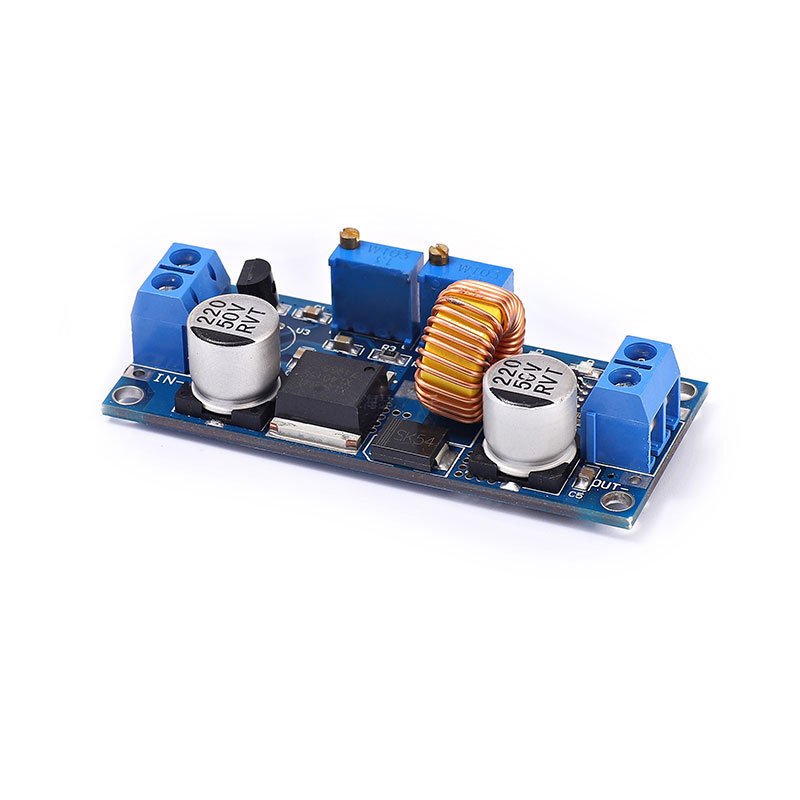

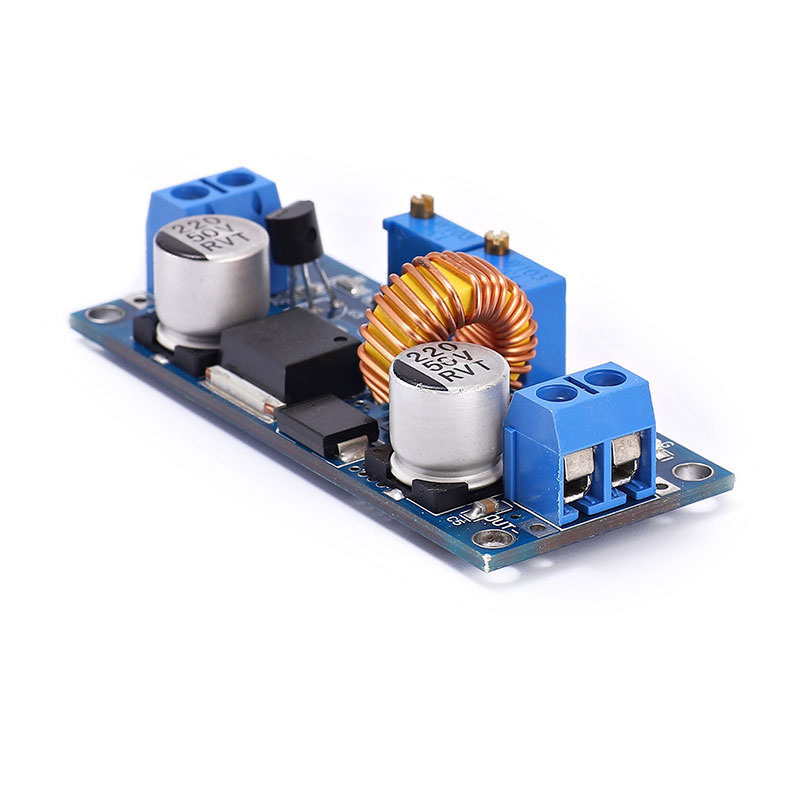

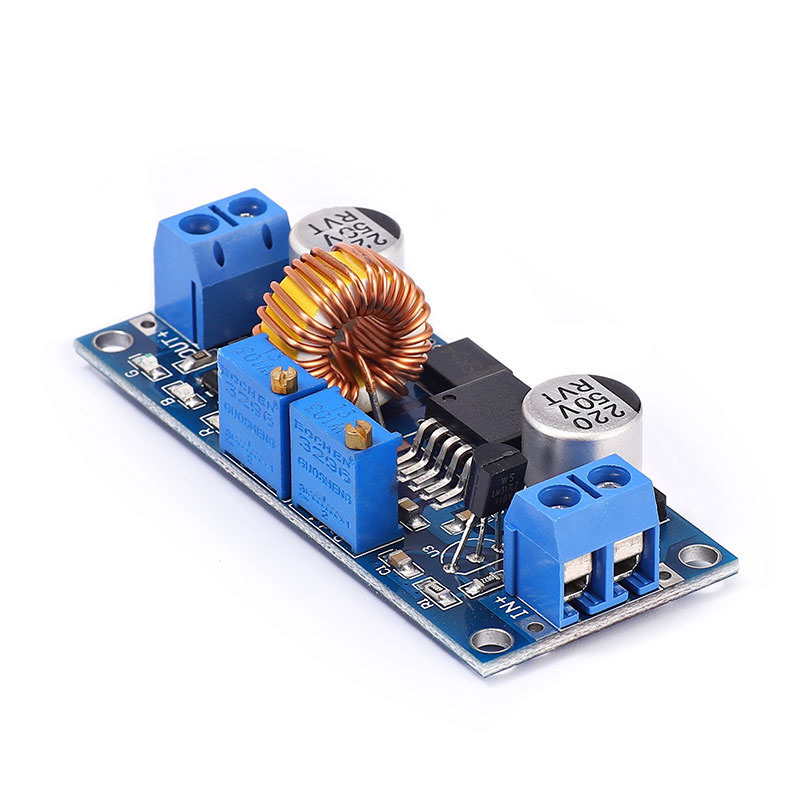

High Current 5A CV CC Buck Power Module

Module Parameters:

● Input voltage: 4-38V

● Output voltage: 1.25-36V continuously adjustable

● Output current: adjustable, maximum 5A

● Output power: maximum 75W

● Operating temperature: -40~+85 degrees Celsius

● Operating frequency: 180KHz

● Conversion efficiency: up to 96%

● Short circuit protection: Yes (limited current 8A)

● Overtemperature protection: Yes (automatic shutdown output after overtemperature)

● Input reverse protection: None, (if necessary, please connect a high current diode in series with the input)

● Installation method: 4 3mm screws

● Wiring method: Wiring terminal or welding terminal, V-IN is the input, V-OUT is the output

● Module size: 61.7mm in length, 26.2mm in width, and 15mm in height

● Weight: 25g

Module Highlights:

1. High power, high efficiency, 5A, low ripple;

2. Three in one:

Used as a common step-down module with overcurrent protection capability;

Used as a charger for various voltage value lithium batteries, batteries, and nickel cadmium nickel hydrogen batteries (battery packs), used in solar panels, wind turbines, and other applications;

Used as a high-power LED constant current drive module;

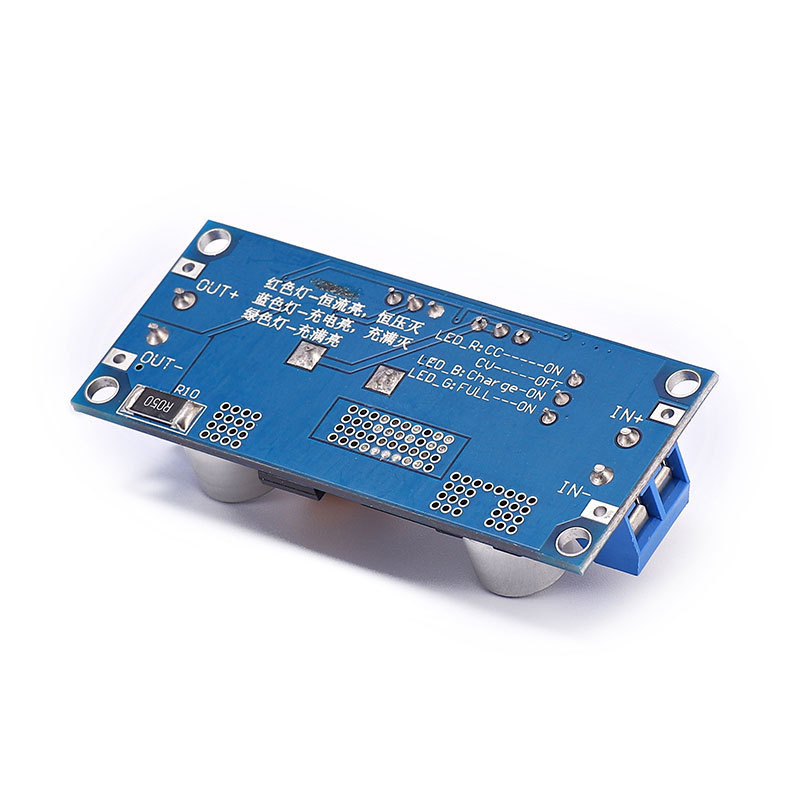

3. It has two modes: constant voltage and constant current, with an indicator light indicating which mode the module is currently in;

4. When used as a lithium battery charger, the float charging voltage and charging current can be set, with an indicator light indicating whether it is charging or fully charged;

5. It has a current limiting protection function, which will not burn out the module even if the output is short circuited.

Attention: When using this module beyond 3A and 35W, please strengthen heat dissipation!!!
