DC Step-down Power Module 9-120V100V96V84V72V24V Wide Voltage Input To 5V12V High Current 3AItem NO.: DC5V12V3A
-
Customized Requirements
- Quantity
-
-
- Product Name: DC Step-down Power Module 9-120V100V96V84V72V24V Wide Voltage Input To 5V12V High Current 3A
- Item NO.: DC5V12V3A
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: DC Step-down Power Module , 9-120V100V96V84V72V24V , Wide Voltage Input , To 5V12V , High Current 3A
- Creation Time: 2024-04-10

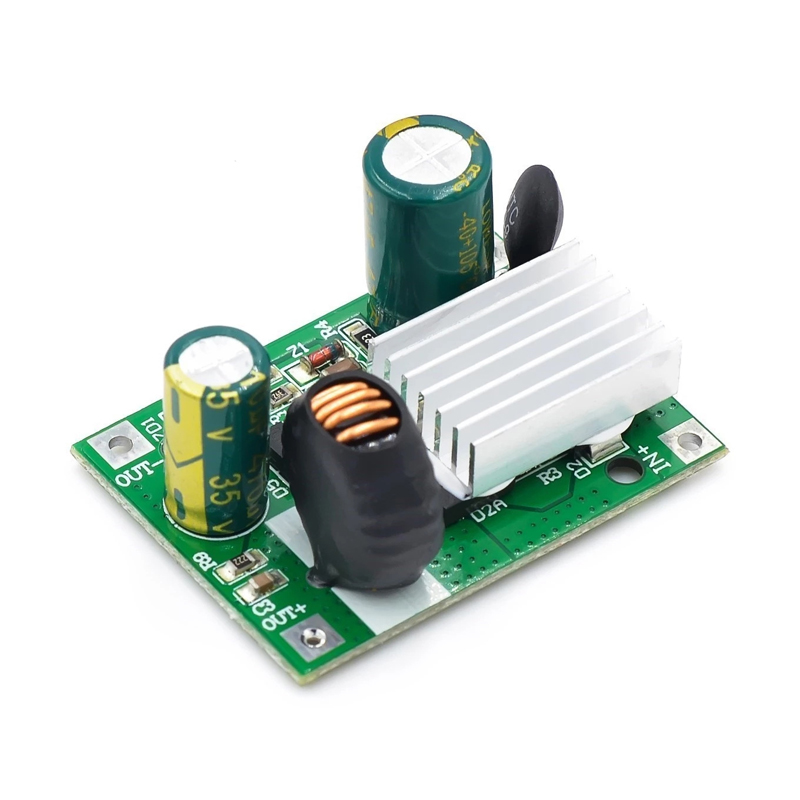

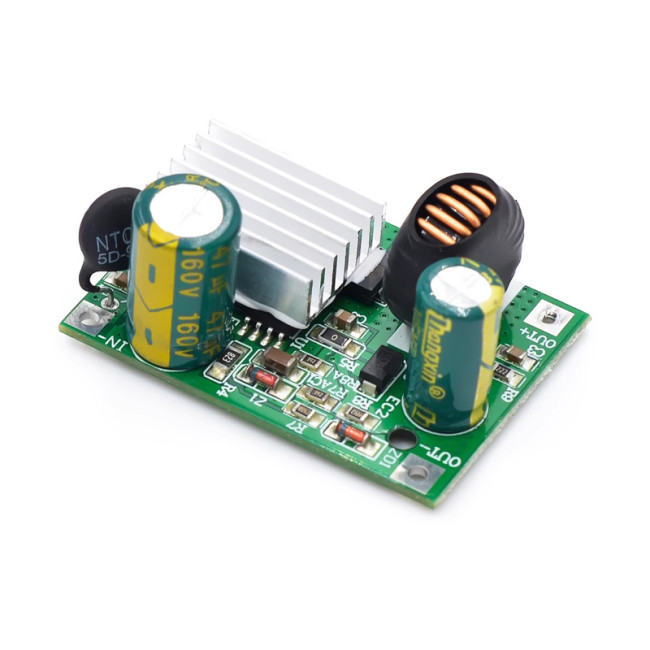

DC Step Down Power Module
Product Information:
Wide input voltage: 9V-90V
The voltage difference between the input voltage and the output voltage is 4V (DC9V-90V when outputting 5V, DC16V-90V when outputting 12V, and DC30-90V when outputting 24V)
Output voltage 24V/12V/5V optional (for other voltages, please contact the customer for customization)
Output current 3A (i.e. constant current value 3A, when the customized voltage is greater than 12V and the output current is less than 3A, the power is not recommended to exceed 30W. 12V and 5V can be 3A, and it is 2A at 24V)
Typical operating frequency: 140KHz
Efficiency: 95% (the smaller the pressure difference, the higher the efficiency)
Light load frequency reduction
Low standby current
Built in over temperature, over current, and output short circuit protection
Built-in soft start
Constant voltage and current output
Working temperature: Industrial grade (-40 ℃ to+85 ℃)

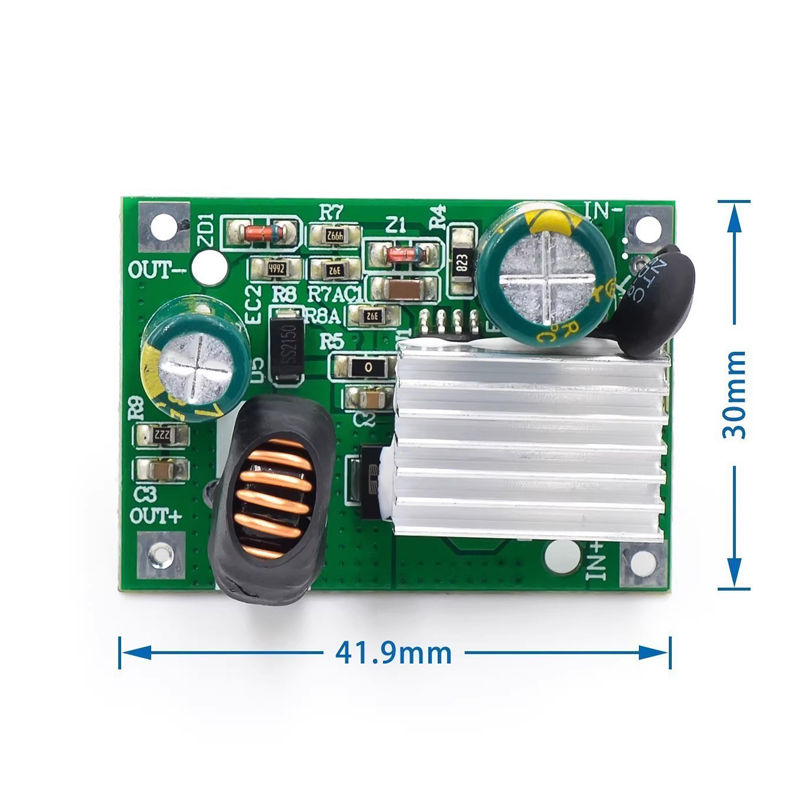

Module volume: 42 * 30 * 17mm
