DC Motor Drive Board 2-way Motor Drive Module DRV8833 Small Volume

DC Motor Drive Board 2-way Motor Drive Module DRV8833 Small VolumeItem NO.: 2 DRV8833

US$ 2.80
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
DC Motor Drive Board 2-way Motor Drive Module DRV8833 Small Volume
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy

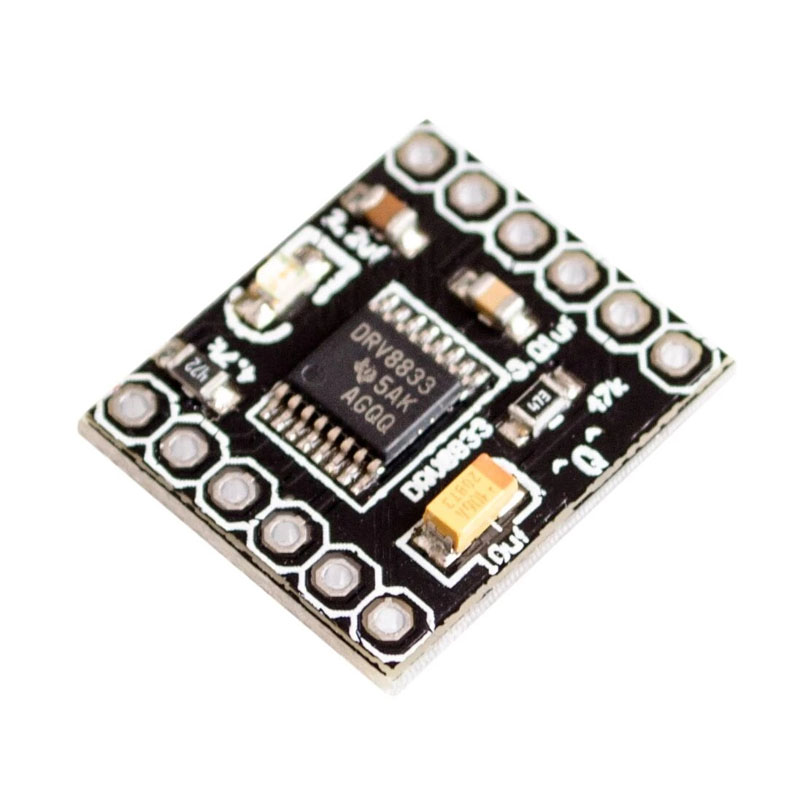

  • 2-way Motor Drive Module DRV8833



    Product parameters:



    Size: 18.5 * 16mm

    Input voltage: 3-10V

    Single H-bridge output current: 1.5A, capable of driving 2 DC reduction motors.

    Built in overcurrent protection, short circuit protection, undervoltage lockout, and overheating protection. With low-power sleep mode.

    Purpose: Can drive DC motors below 1.5A and 4-wire stepper motors.

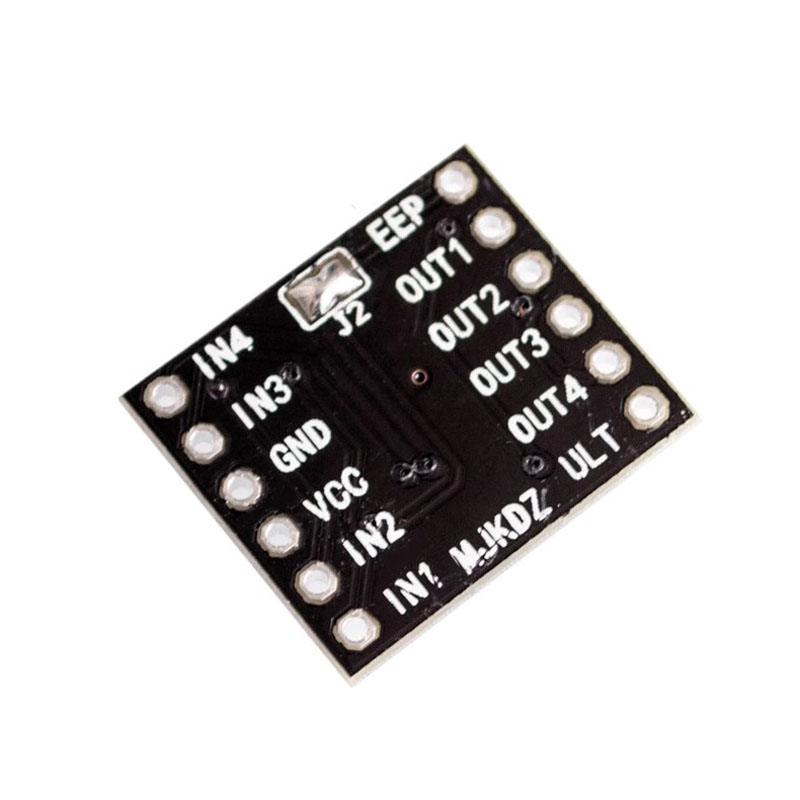

    Instructions for use:



    The low level of ULT is in sleep mode (it is necessary to disconnect the J2 short circuit solder joint behind the module)

    OUT1,0UT2 is a 1-way H-bridge, corresponding to IN1 and IN2

    OUT3,0UT4 is the second H-bridge, corresponding to IN3 and IN4

    EEP is a protected output and is not used by default.

    VCC is a voltage input of 3 to 10V

    GND grounding.
