1.8-inch TFT Module LCD Display Module With PCB Backplane SPI Serial Port Only Requires 4 IO

1.8-inch TFT Module LCD Display Module With PCB Backplane SPI Serial Port Only Requires 4 IOItem NO.: 1.8TFT

US$ 5.99
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
1.8-inch TFT Module LCD Display Module With PCB Backplane SPI Serial Port Only Requires 4 IO
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy

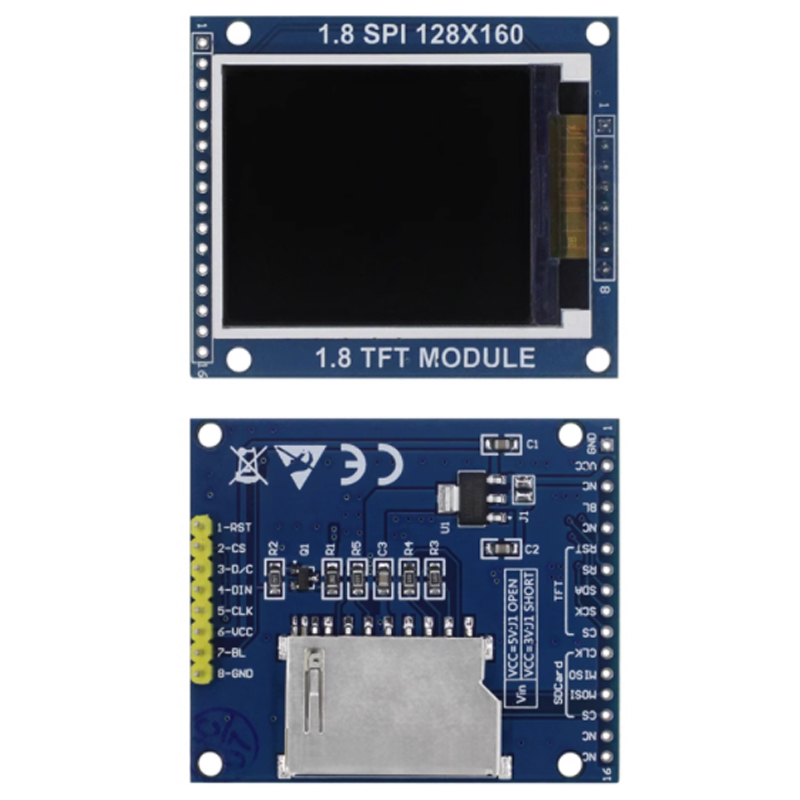

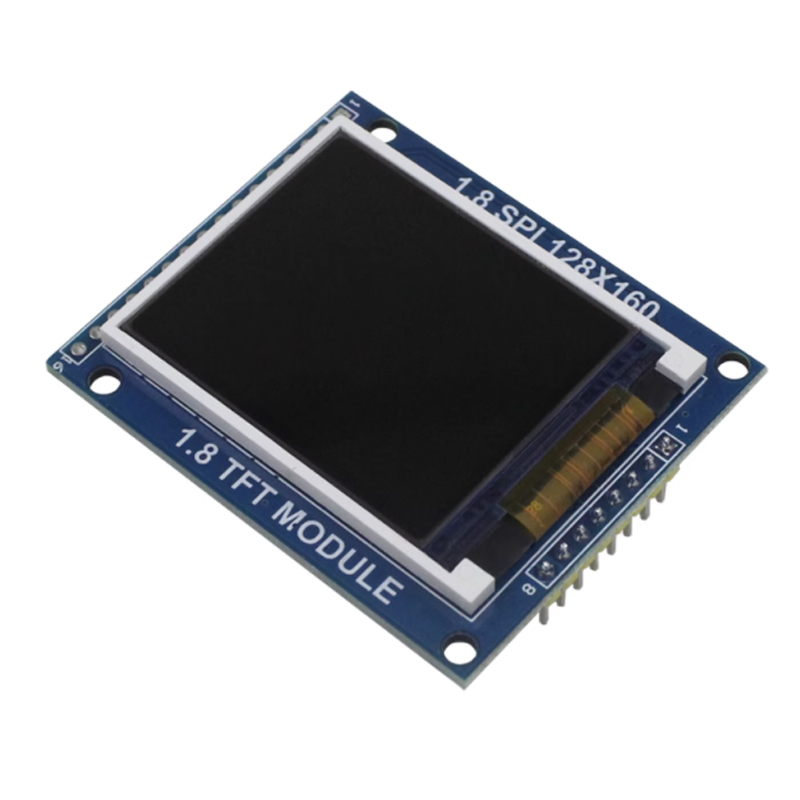

  • 1.8-inch TFT Module LCD Display Module



    QD-TFT180 Series Module Features:



    ● The module is equipped with a voltage stabilizing IC that supports 3.2V/5V power supply,

    ● Equipped with an SD card holder, it can be used for experiments such as digital photo frames,

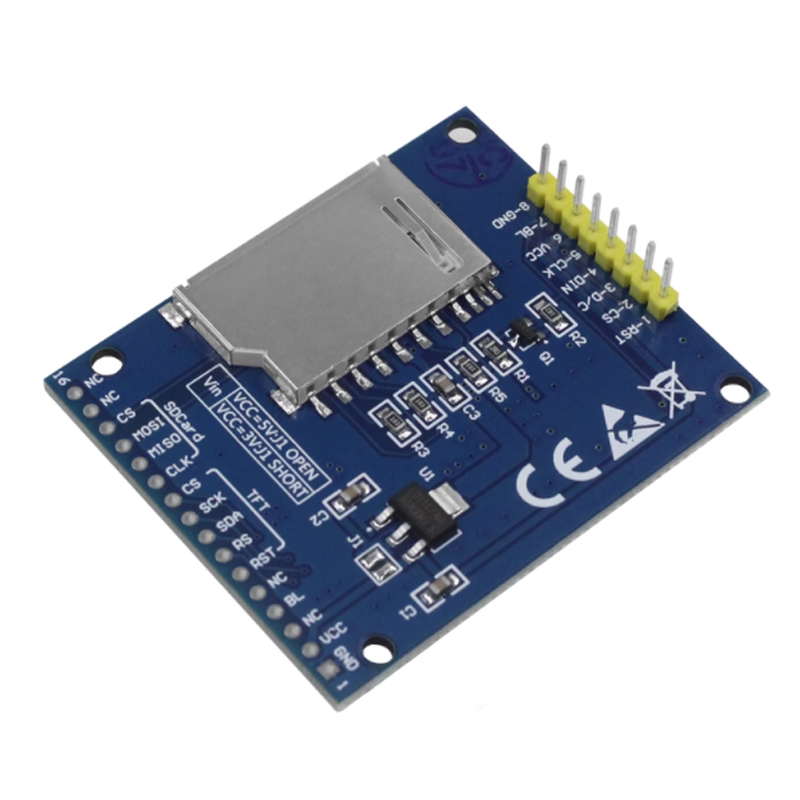

    ● The module reserves the Nokia 3310/5110 interface, supports the 1602 interface, and can be directly plugged in for use!



    IO Used For Streamlined Wiring: (After Optimization, Only 3 IOs Are Needed)



    1. RST - Directly connected to the microcontroller reset signal end, this IO can be saved

    2. D/C - Connected to low level, if the chip selection is valid for a long time, this IO can be saved

    3. D/C - Connected to IO control register selection

    4. DIN - Connected to IO Control Data Transmission

    5. CLK - Connected to IO control SPI bus

    6. BL - If the 3.3V backlight is constantly on when connected to a high-level chip, this IO can be saved



    IO Used For Standard Wiring: (6 IOs)



    1. RST - Connected to IO control LCD reset

    2. CE - Connected to IO control chip selection

    3. D/C - Connected to IO control register selection

    4. DIN - Connected to IO Control Data Transmission

    5. CLK - Connected to IO control SPI bus

    6. BL - Connected to IO control backlight on/off or PWM control brightness



    LCD Screen Parameters:



    ● Resolution: 128X160!

    ● Drive IC: ILI9163/ST7735
