DY-SV8F MP3 Voice Playback Module 1-to-1 Triggering Serial Port Control Playback USB Download 8M Storage

DY-SV8F MP3 Voice Playback Module 1-to-1 Triggering Serial Port Control Playback USB Download 8M StorageItem NO.: DY-SV8F

US$ 7.66
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
DY-SV8F MP3 Voice Playback Module 1-to-1 Triggering Serial Port Control Playback USB Download 8M Storage
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • DY-SV8F MP3 Voice Playback Module



    Product Overview:

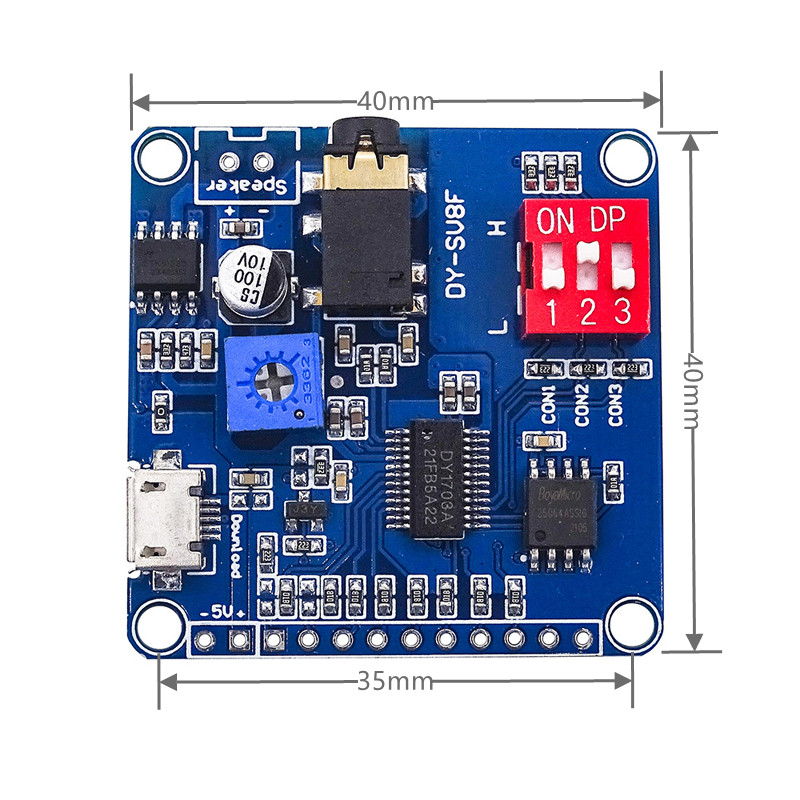

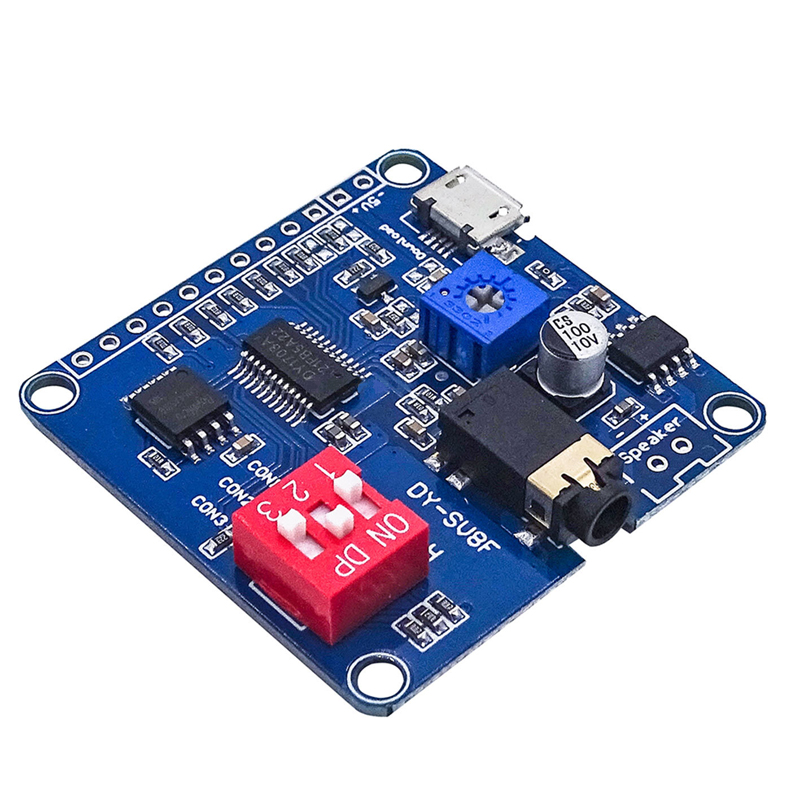

    DY-SV8F is an intelligent voice module that integrates IO segmented triggering, UART serial port control, ONE_ Line single bus serial port control, standard MP3 and other 7 working modes, simple Dip switch setting; On board 5W Class D power amplifier, capable of directly driving 4 Ω, 3-5 W speakers; Supports MP3, WAV decoding format, onboard 64Mbit (8M bytes) Flash storage, and can be connected to a computer via USB data cable to update Flash storage audio files.



    Product Characteristics:



    1. Supports MP3 and WAV decoding formats.

    2. Support sampling rate (KHz): 8/11.025/12/16/22.05/24/32/44.1/48.

    3. 24 bit DAC output, dynamic range supporting 90dB, signal-to-noise ratio supporting 85dB.

    4. On board 64Mbit (8M bytes) Flash storage, without the need for a memory card.

    5. Equipped with a 5W Class D power amplifier, it can directly drive 4 Ω, 3-5 W speakers.

    6. UART serial port controls voice broadcasting function, which can control functions such as playback, pause, song selection, volume increase or decrease, with a maximum selection of 65535 tracks and a baud rate of 9600bit/s.

    7. Supports IO triggered playback function, with 8 IO ports triggering 8 tracks individually or a combination of 8 IO ports triggering 255 tracks.

    8. Support for One_ Line single bus serial port control, which can control functions such as playback, pause, music selection, volume increase and decrease.

    9. It supports 3 configured IOs to select up to 7 working modes and set the Dip switch, which is easy to operate.

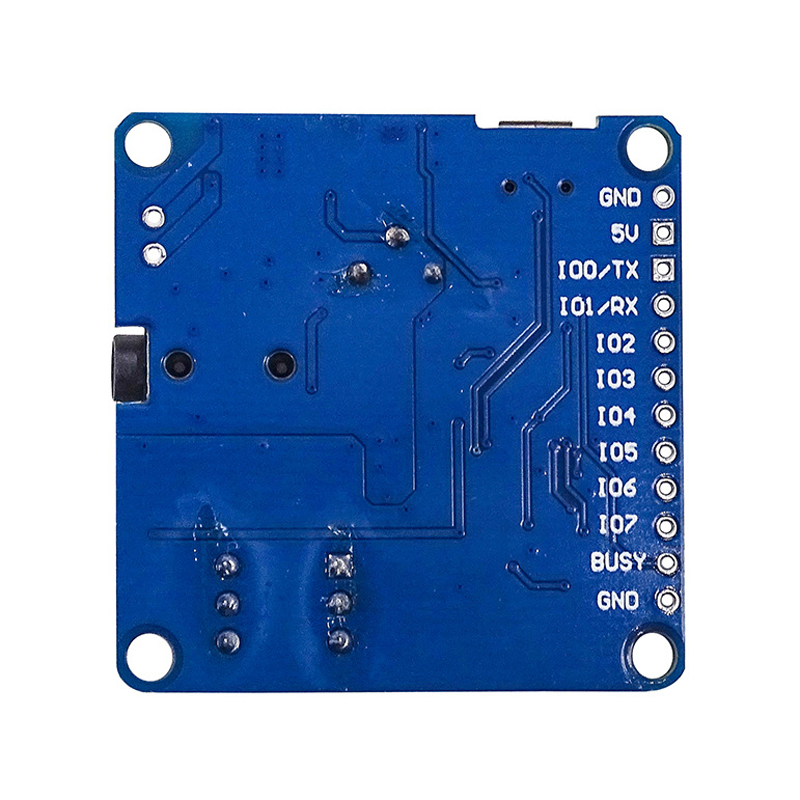

    Pin Definition:



    ● 5V power supply negative pole: connected to 5V power supply negative pole (GND)

    ● 5V power supply positive pole: connected to the 5V power supply positive pole

    ● Input pin IO0 in TXD/IO0: IO trigger mode; TX pin in UART control mode, connected to the RX of the control terminal (MCU)

    ● RXD/IO1: Input pin IO1 in IO trigger mode; RX pin in UART control mode, connected to TX of control terminal (MCU)

    ● IO2: IO trigger mode input pin IO2

    ● IO3: IO trigger mode input pin IO3

    ●IO4/ONE_ LINE: IO trigger mode input pin IO4; One_ Line 1 serial port control mode data receiving pin

    ● IO5: IO trigger mode input pin IO5

    ● IO6: IO trigger mode input pin IO6

    ● IO7: IO trigger mode input pin IO7

    ● BUSY: Output low level (0V) when playing the track, and output high level (3.3V) when playing the end

    ● GND: Reference ground terminal (connected to control terminal GND)
