Digital Display PWM DC Motor Governor 6V12V24V48V Stepless Speed Control Switch Controller Display ShellItem NO.: MK00289
-
Customized Requirements
- Quantity
-
-
- Product Name: Digital Display PWM DC Motor Governor 6V12V24V48V Stepless Speed Control Switch Controller Display Shell
- Item NO.: MK00289
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: Digital Display , PWM DC Motor Governor , 6V12V24V48V , Stepless Speed Control Switch Controller
- Creation Time: 2024-05-27
Digital Display PWM DC Motor Governor 6-60V
Product Features:
● the digital display 0-100 percentage meter is accurately positioned

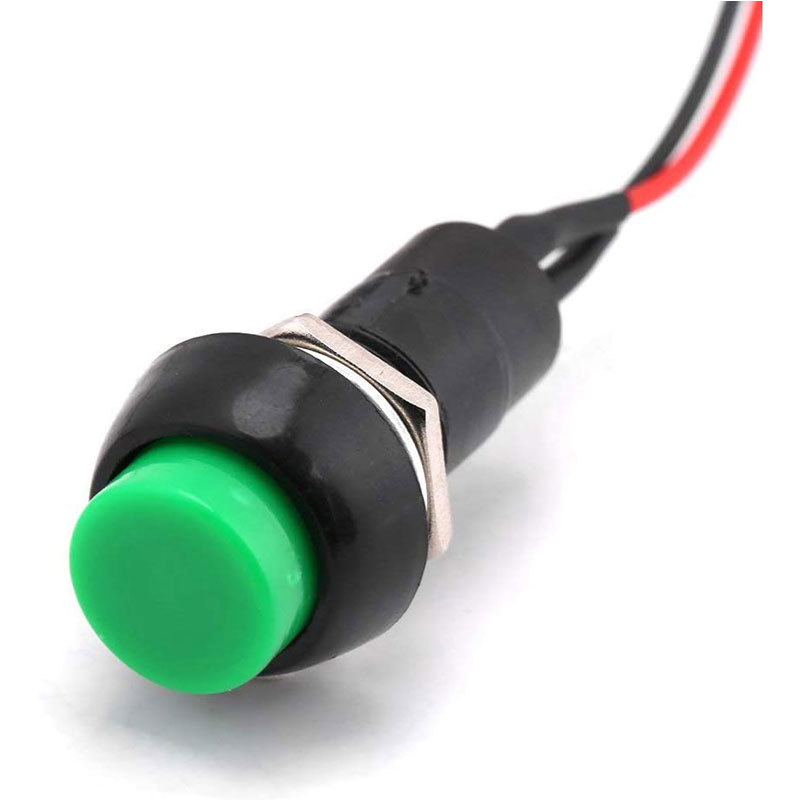

● inching stop start switch
● panel type press mounting
● 6-60v wide voltage 30A
Product Parameters:
● input voltage: dc6-60v
● output voltage: linear under load
● output current: 0-30a
● continuous current: 20A
● speed regulation type: current regulation
● speed regulation mode: potentiometer
● speed regulation range: 0-100%
● control frequency: 15KHz
● wiring type: barrier terminal
● knob wire length: 18cm

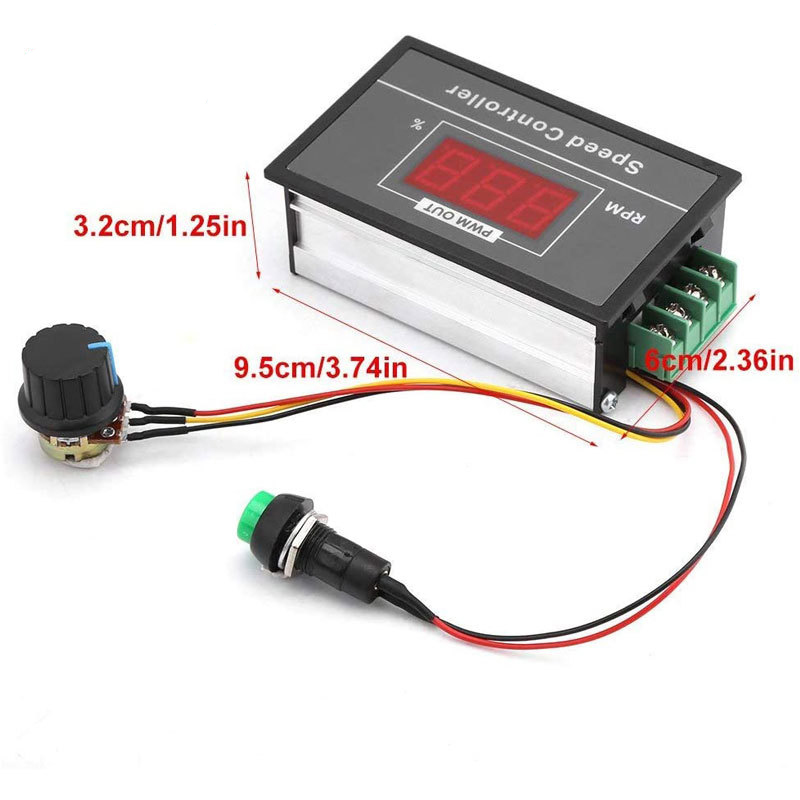

● module size: length * width * height 96mm*61mm*34mm
● net product yield: 120g
● panel opening: length * width 92mm*56mm
● speed digital display: percentage 0-100
Note:
● the digital display is a percentage other than the actual speed of the motor
● the input voltage must be divided into positive and negative, and 220V household power cannot be input
● the input voltage shall be equal to the rated voltage of the motor (within 6-60v)
● if the rated voltage of the motor is 12 input 12V, the motor is 36V input 36V
