E18-D80NK Infrared Obstacle Avoidance Sensor Module Proximity Switch Smart Car 3-80cm With DuPont Head For Arduino Robot CarItem NO.: E18-D80NK
-
Customized Requirements
- Quantity
-
-
- Product Name: E18-D80NK Infrared Obstacle Avoidance Sensor Module Proximity Switch Smart Car 3-80cm With DuPont Head For Arduino Robot Car
- Item NO.: E18-D80NK
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Proximity Switch , E18-D80NK , Infrared Obstacle Avoidance Sensor Module
- Creation Time: 2024-04-15

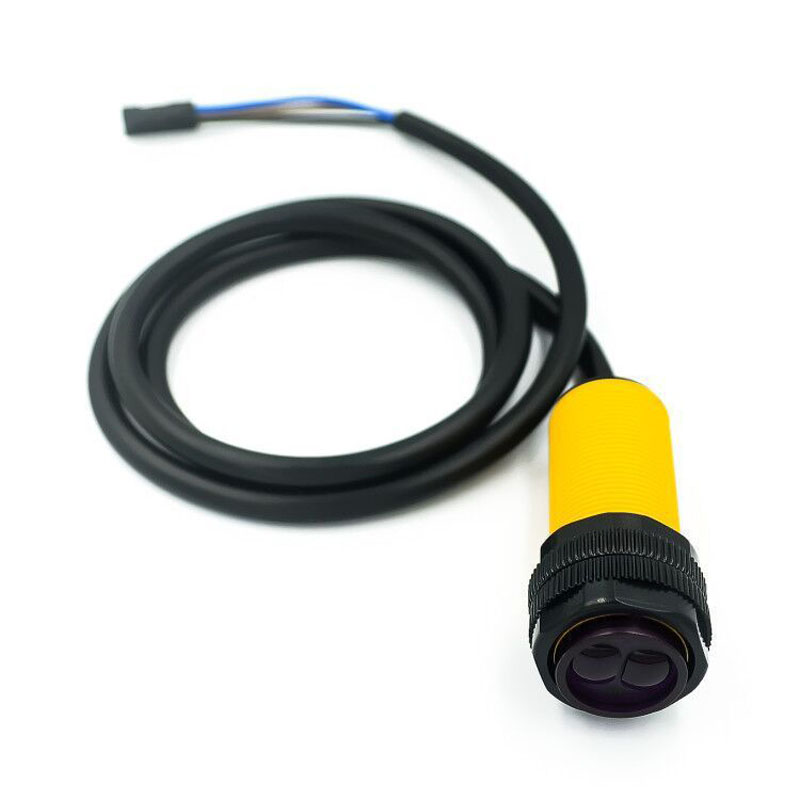

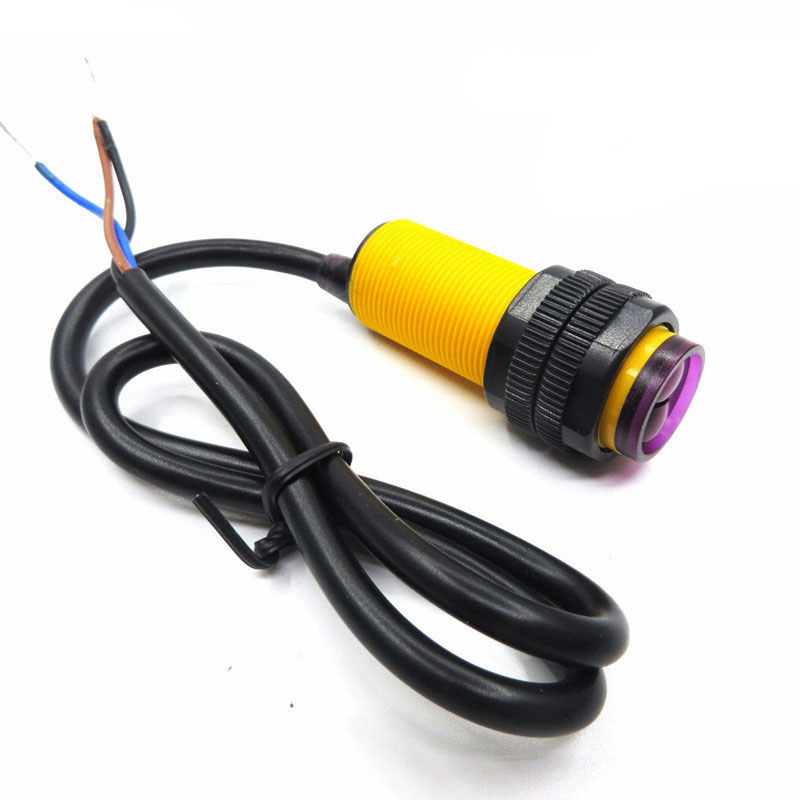

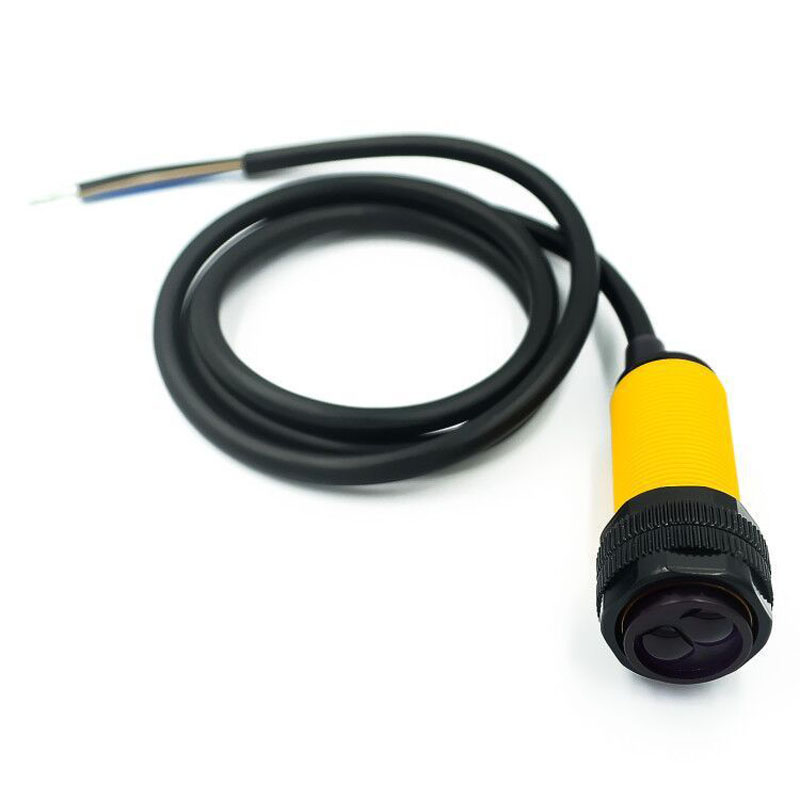

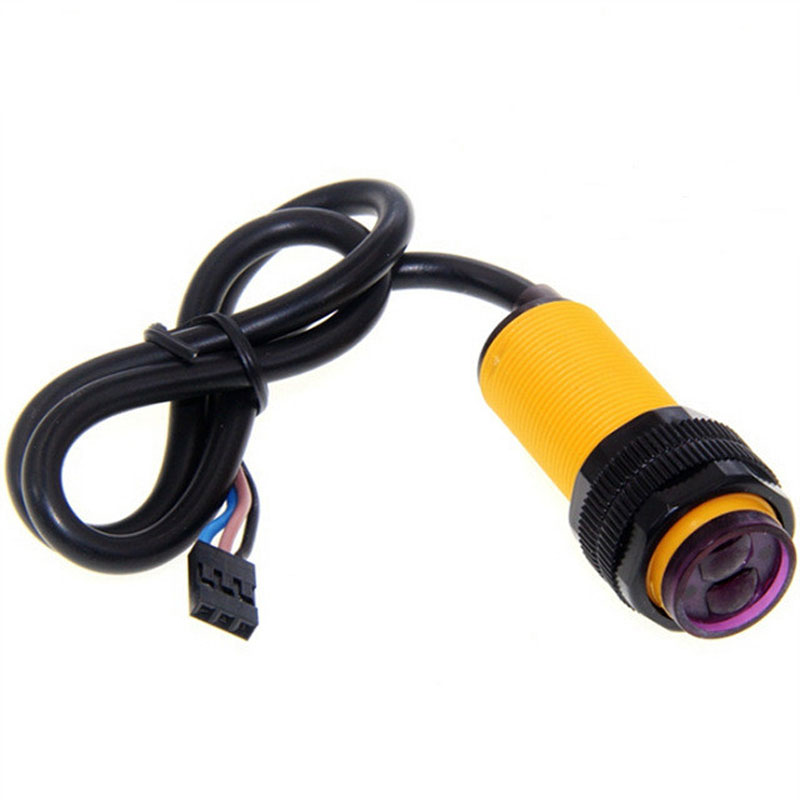

E18-D80NK Infrared Obstacle Avoidance Sensor Module
Product Information:
This is a photoelectric sensor that integrates emission and reception. The detection distance can be adjusted according to requirements. The sensor has the characteristics of long detection distance, small interference from visible light, low price, easy assembly, and easy use. It can be widely used in many automation products such as robot obstacle avoidance, assembly line counting, and so on.
Electrical Characteristics:
●U:5VDC
●I:100mA
●Sn:3-80CM
Dimensions:
● Detection distance 3-80CM
● Size 18 * 45MM
Application Cases:
1. Automatic goods counting equipment for production lines
2. Multifunction reminder
3. Maze walking robot
4. Kitchen automation system
5. Security and anti-theft system, etc
Technical Parameters Of Photoelectric Switch E18:
1. Output current DC/SCR/relay control output: 100mA/5V power supply
2. Consumption current DC<25mA
3. Response time<2ms
4. Pointing angle: ≤ 15 °, effective distance 3-80CM adjustable
5. Detected object: transparent or opaque body
6. Working environment temperature: - 25 ℃~+55 ℃
7. Standard test object: sunlight below 10000LX, incandescent lamp below 3000LX
8. Housing material: plastic
