AHT25 Integrated Temperature Humidity Sensor Plug Type Waterproof Dustproof Temperature Compensation ASAIRItem NO.: AHT25
-
Customized Requirements
- Quantity
-
-
- Product Name: AHT25 Integrated Temperature Humidity Sensor Plug Type Waterproof Dustproof Temperature Compensation ASAIR
- Item NO.: AHT25
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Waterproof , AHT25 , Integrated , Temperature Humidity Sensor , Plug Type
- Creation Time: 2024-03-25

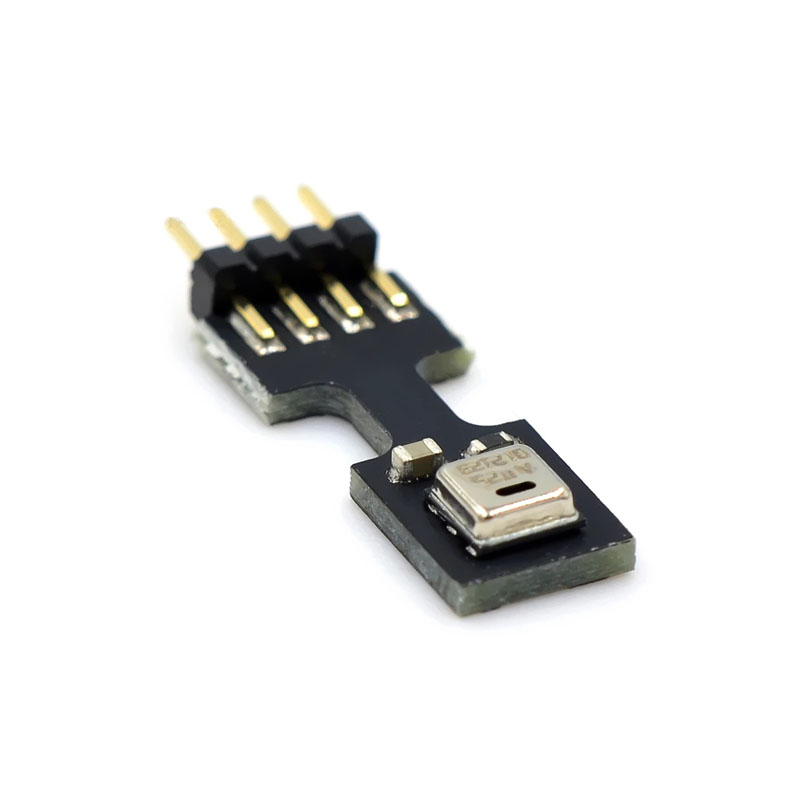

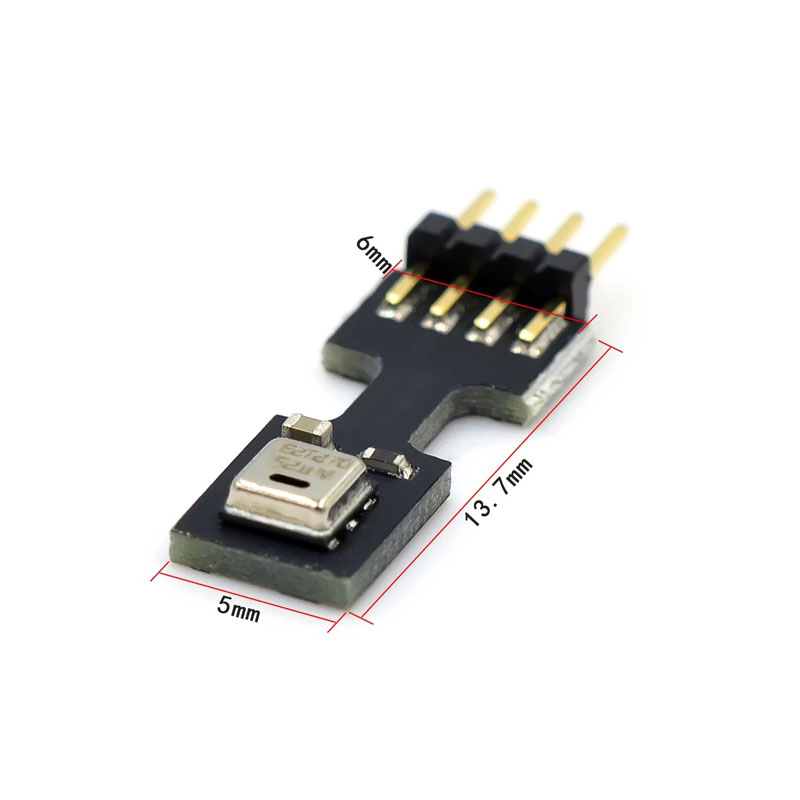

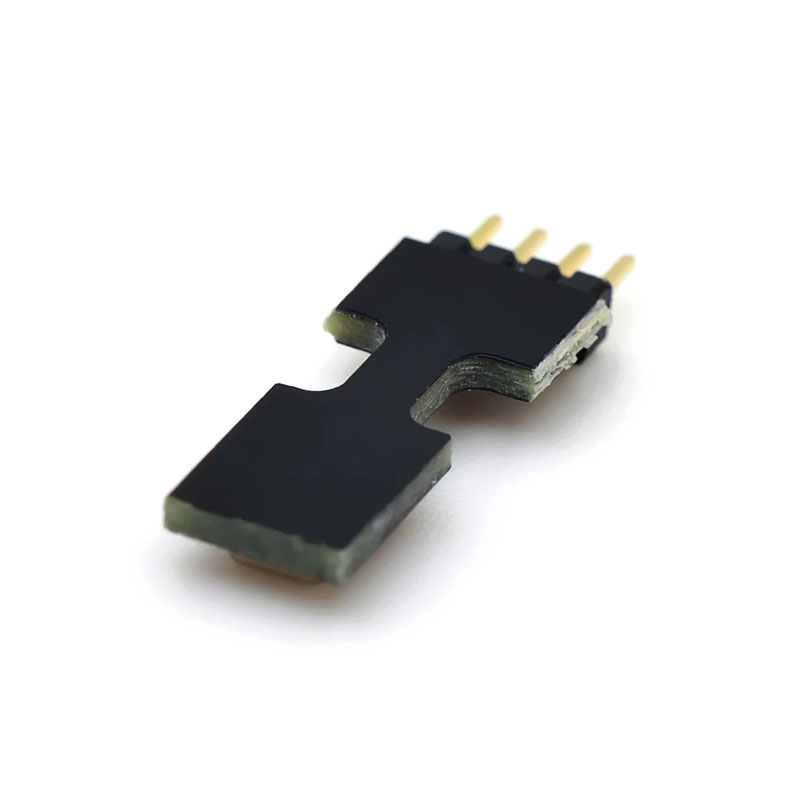

AHT25 Integrated Temperature Humidity Sensor
Product Introduction:
The AHT25 temperature and humidity sensor is equipped with a newly designed ASIC dedicated chip, an improved MEMS semiconductor capacitive humidity sensing element, and a standard temperature sensing element. It has high accuracy, good stability, strong anti-interference ability, and can perform stably even in harsh environments; Using the standard I2C interface, it responds quickly and is factory temperature compensated, resulting in very low power consumption, making it an ideal choice for many low-power products.
AHT25 uses standard spacing pin connectors, which are easy to replace, and the devices using this product will ultimately achieve cutting-edge energy-saving operation mode. Each sensor has undergone strict calibration and testing, and its quality is comparable to international frontline products, allowing for complete import substitution.
Product Parameters:
● Product model: AHT25
● Power supply voltage: 2.2-5.5V DC
● Measurement range (humidity): 0-100% RH
● Measurement range (temperature): -40 ℃~+80 ℃
● Humidity accuracy (typical value): ± 2% RH (25 ℃)
● Resolution: Temperature: 0.01 ℃ Humidity: 0.024% RH
● Output signal: I2C signal
