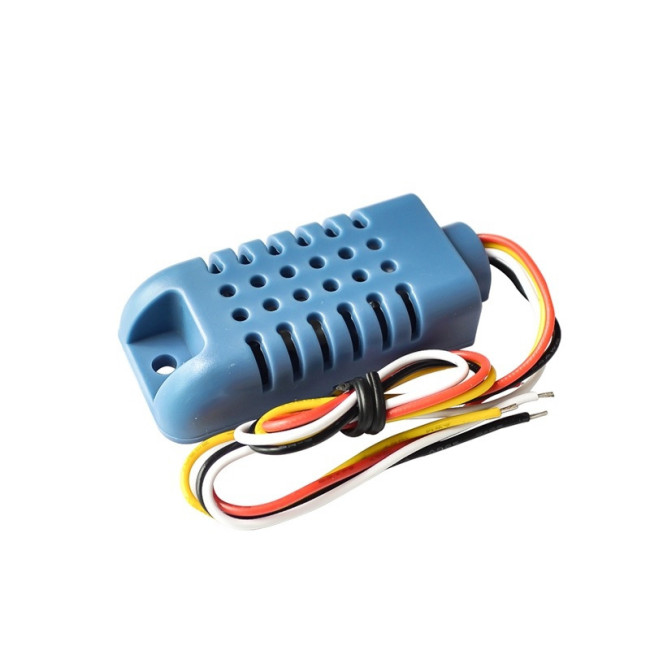

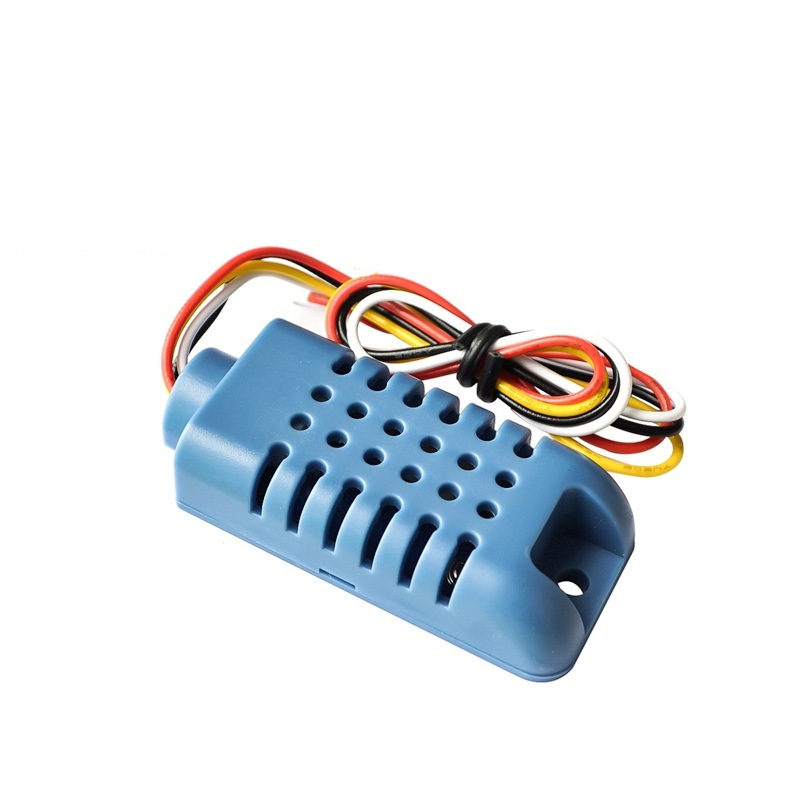

  • AM1001 Resistive Humidity Module



    Product Overview:



    AM1001 sensor signal adopts analog voltage output mode; This module has the characteristics of high precision, high reliability, good consistency, and has temperature compensation to ensure long-term stability, convenient use, and low price. It is especially suitable for enterprises with strict quality and cost requirements.



    Application Scope:



    Application fields such as air conditioning, humidifiers, dehumidifiers, communication, atmospheric environment monitoring, industrial process control, agriculture, measurement instruments, etc.



    Product Highlights:



    Low power consumption, small size, with temperature compensation, linear output calibrated by microcontroller, high reliability, convenient use, and low price.



    Technical Parameters:



    (1) Power supply voltage (Vin): DC 4.75-5.25V

    (2) Consumption current: approximately 2mA (MAX 3mA)

    (3) Operating temperature range: 0-50 ℃

    (4) Humidity range: below 95% RH (non condensing)

    (5) Humidity detection range: 20-90% RH

    (6) Storage temperature range: 0-50 ℃

    (7) Storage humidity range: below 80% RH (non condensing)

    (8) Humidity detection accuracy: ± 5% RH (0-50 ℃, 30-80% RH)

    (9) Voltage output range: 0.6-2.7V DC
