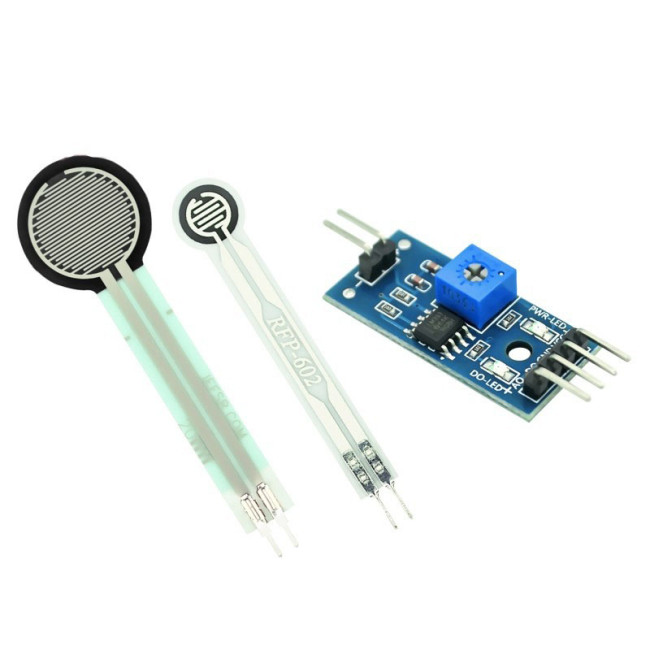

FSR402 RFP602 Resistive Membrane Pressure Sensor Pressure Switch Long Tail Voltage Conversion ModuleItem NO.: RFP
-
Customized Requirements
- Quantity
-
-
- Product Name: FSR402 RFP602 Resistive Membrane Pressure Sensor Pressure Switch Long Tail Voltage Conversion Module
- Item NO.: RFP
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Voltage Conversion Module , FSR402 , RFP602 , Resistive Membrane Pressure Sensor , Pressure Switch
- Creation Time: 2024-04-12

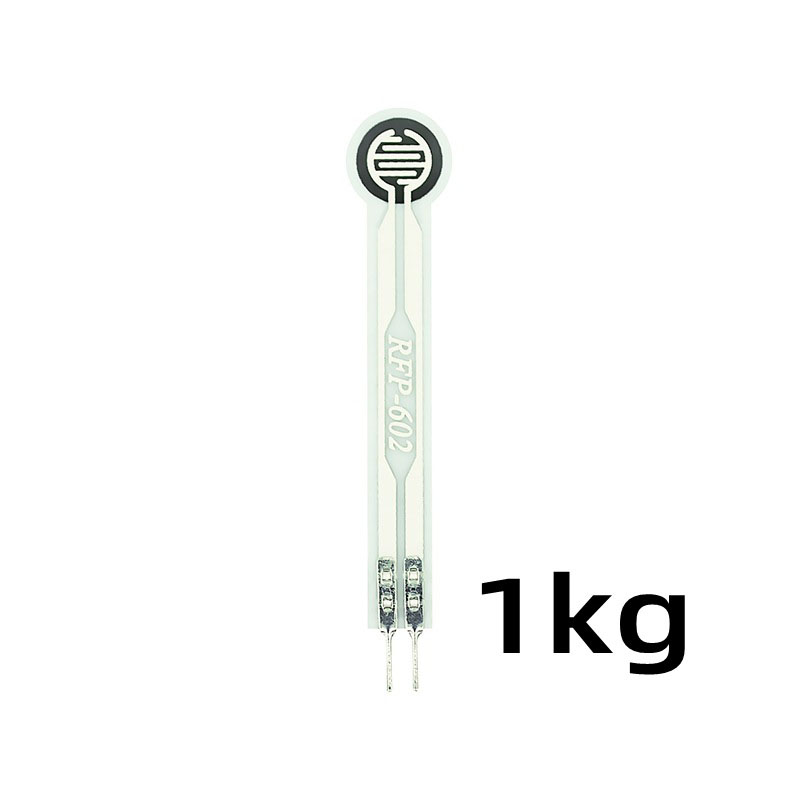

FSR402 RFP602 Resistive Membrane Pressure Sensor
Product Information:

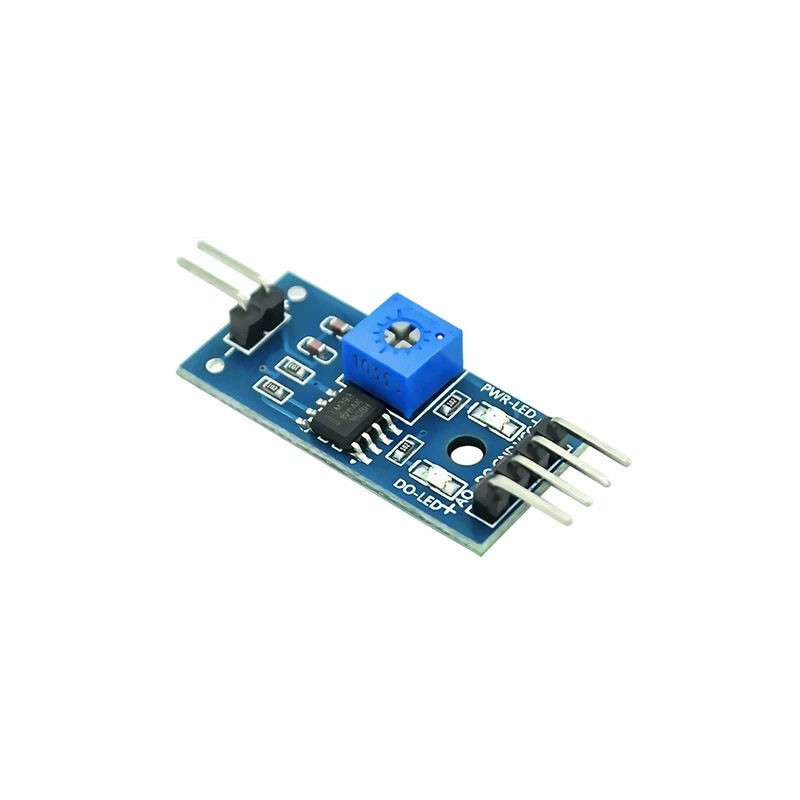

A resistor voltage conversion module dedicated to the RFP thin film pressure sensor. Converts the resistance signal of the sensor into an analog voltage signal or high and low levels.
Product Parameters:

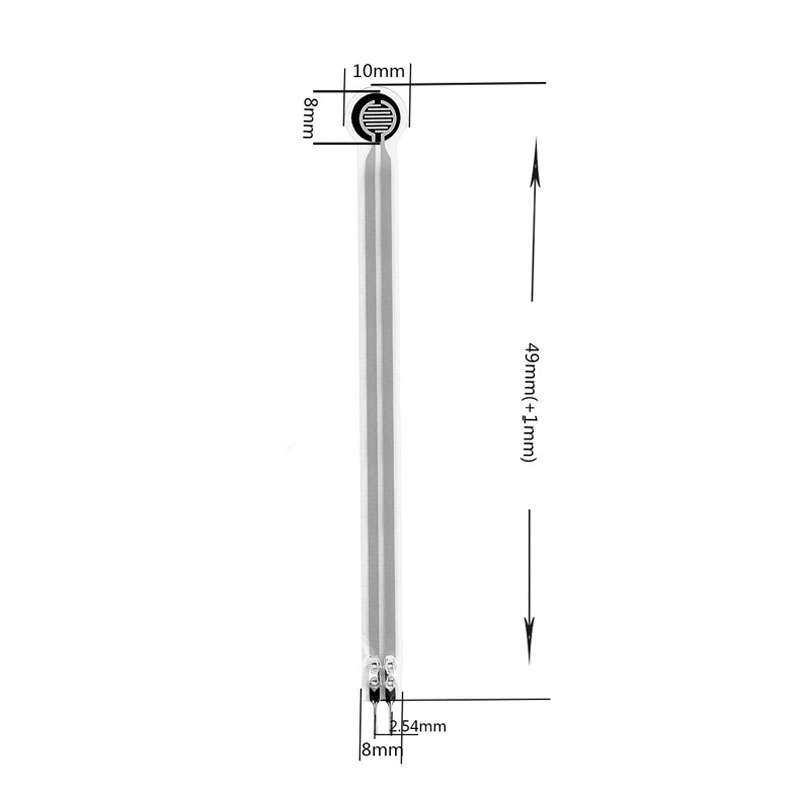

● Appearance dimension: 1.4 * 3.2cm (± 1mm)
● Power supply: 3.3-5v
● Output voltage range: 0-5v
Instructions:
1. VCC is externally connected to a 3.3V-5V voltage (can be directly connected to a 5v microcontroller or a 3.3v microcontroller)
2. GND external GND
3. DO high and low level output interface
4. AO analog output interface
