  • GP2Y0E03 Infrared Ranging Sensor



    Parameters:



    ● Measuring distance: 4~50cm

    ● Output: digital (I/C)/analog output

    ● Sensor: infrared LED and CMOS image sensor

    ● Built in signal processing circuit

    ● Voltage operation: 2.7V-5V

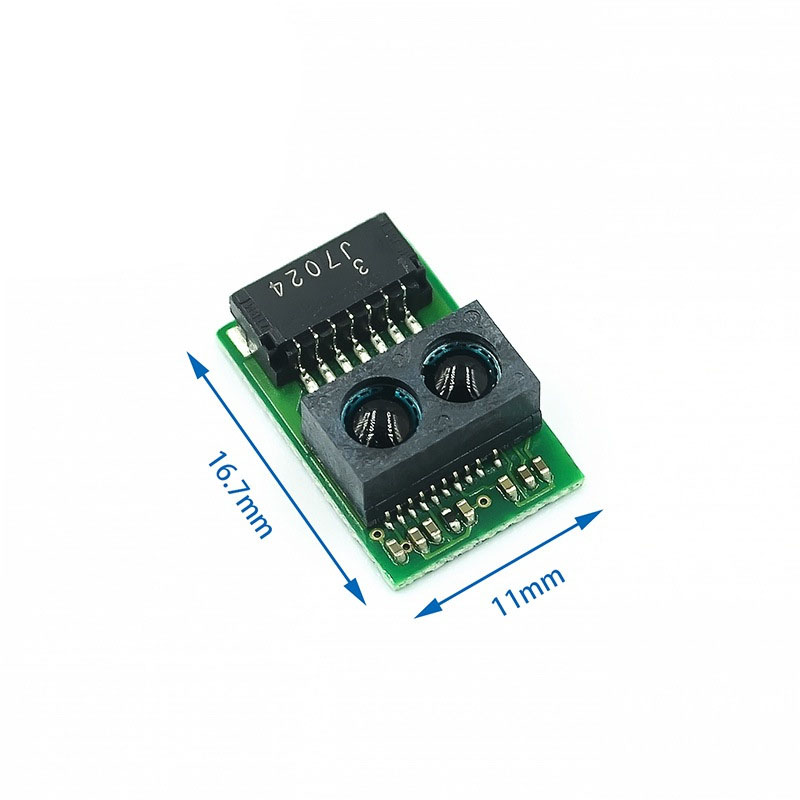

    ● Size: 16.7 × 11mm × 5.2mm



    Product Features:



    ● High precision measurement

    ● Digital (I/C)/analog output type

    ● GPYY0E03 is a distance measurement sensor unit, CMOS integrated combined image sensor and infrared LED.

    ● The change of object reflectivity, ambient temperature and running time are not easily affected by distance detection.

    ● Due to the triangulation method, the equipment outputs the distance and digital (IC) data corresponding to the detection. Therefore, the sensor can also be used as a proximity sensor.



    Scope Of Application:



    1. Cleaning robot

    2. Humanoid robot

    3. Non contact switch (water heating equipment, lighting control, etc.)

    4. Energy saving sensor (ATM, copier, LCD, etc.)

    5. Amusement equipment (robots, game consoles, etc.)
