Detail

- Product Name: GSM/GPRS/3G Built-in Circuit Board Antenna 1.13 Lines 15cm Long IPEX Connector (3DBI) PCB Small Antenna
- Item NO.: IPEX 3DBI
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Wireless Module
- Tag: GSM/GPRS/3G Built-in Circuit Board Antenna
- Creation Time: 2024-04-17

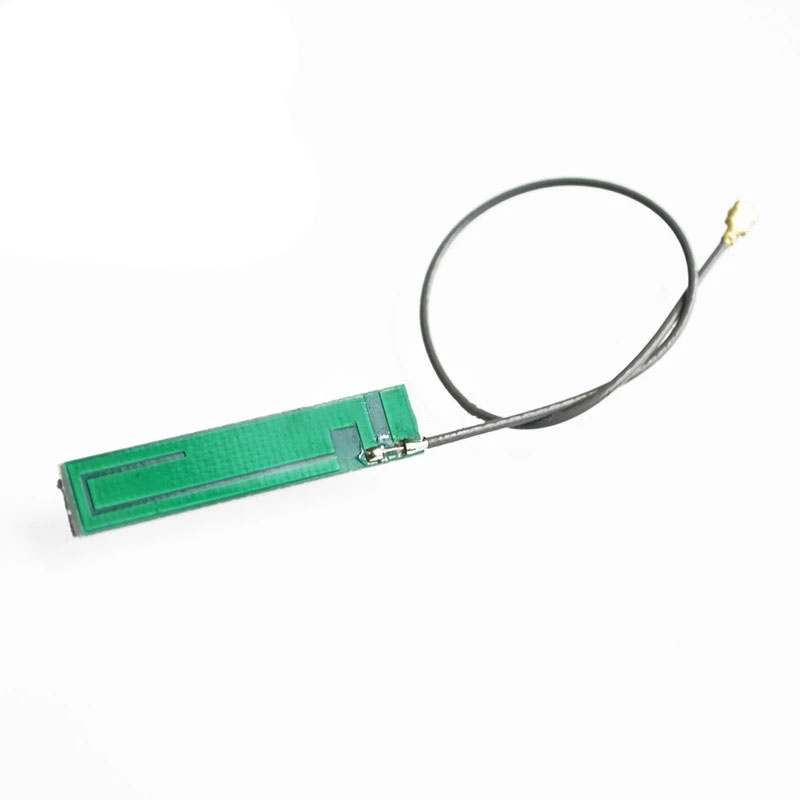

PCB Small Antenna

Product Introduction:

Product name: 2G 3G IPEX antenna

Joint type: ipx13

Definition of standing wave ratio: S.W.R<=1.8

Gain definition: 3dBi (* Typical *)

Frequency band definition: 800~960 1710~2170MHz

Impedance definition: 50 ohms

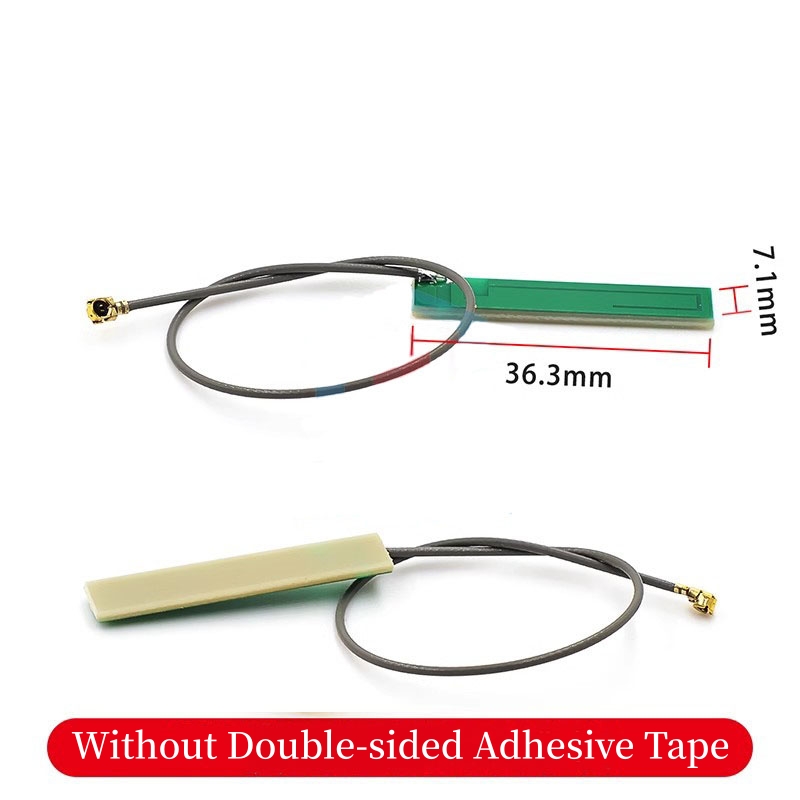

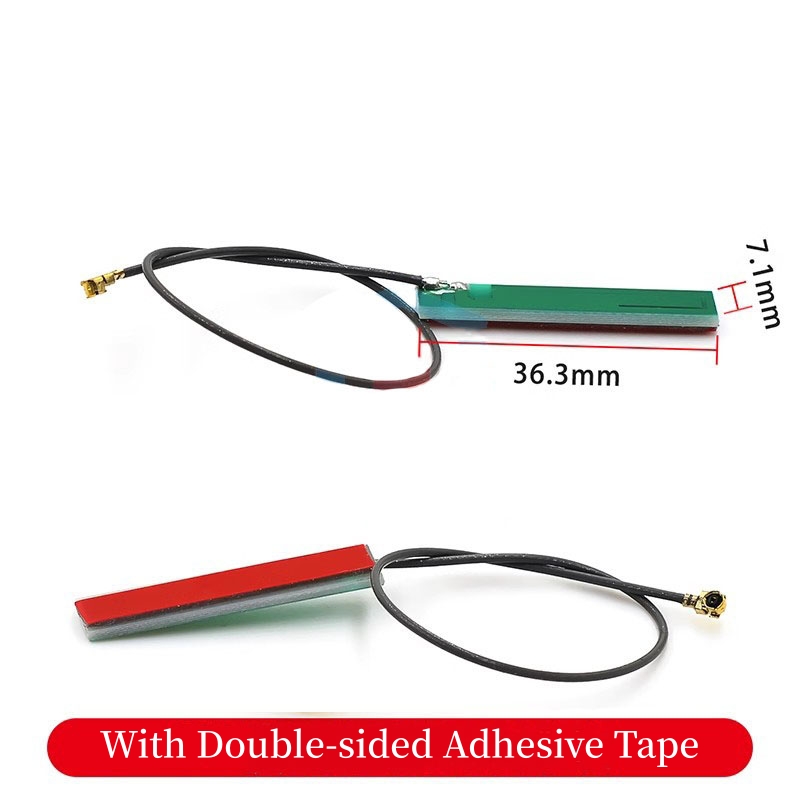

Single line length: about 15CM

Total length: about 17.7CM

Product features:

A. Electrical Characteristics:

S. W.R.<=3.0 @ 880-960 MHz&

<=2.5 @ 1710-1800 MHz

Impedance 50 Ohm

B. Material:

Material of Radiator PCB

Connector Type I-Pex or I-Pex compatible

C. Environmental:

Operation Temperature -30 ° C~+85 ° C

Storage Temperature -30 ° C to+85 ° C
